Cree LEDway Series Installation Instructions page 3

ELECTRICAL CONNECTIONS
PHASE TO PHASE WIRING
STEP 1:
Make the following Electrical Connections:
a. Connect supply ground conductor to green wire
position of the terminal block within the LED Driver
Enclosure.
b. Connect supply L1 (Hot) conductor to black wire
position of the terminal block within the LED Driver
Enclosure.
c. Connect supply L2 (Hot) conductor to the white
wire position of the terminal block within the LED
Driver Enclosure.
STEP 2:
Push excess supply wires into pole.
STEP 3:
Close cover by firmly pushing cover towards fixture,
making sure that no wires are pinched and latches are fully
engaged.
STEP 4:
Insulate all electrical connections with wire nuts suitable
for at least 90°C
© 2014 Cree, Inc. All rights reserved. For informational purposes only. Content is subject to change. See
www.cree.com/lighting/products/warranty for warranty and specifications. Cree®, the Cree logo, and
LEDway® are registered trademarks of Cree, Inc.
3 of 3

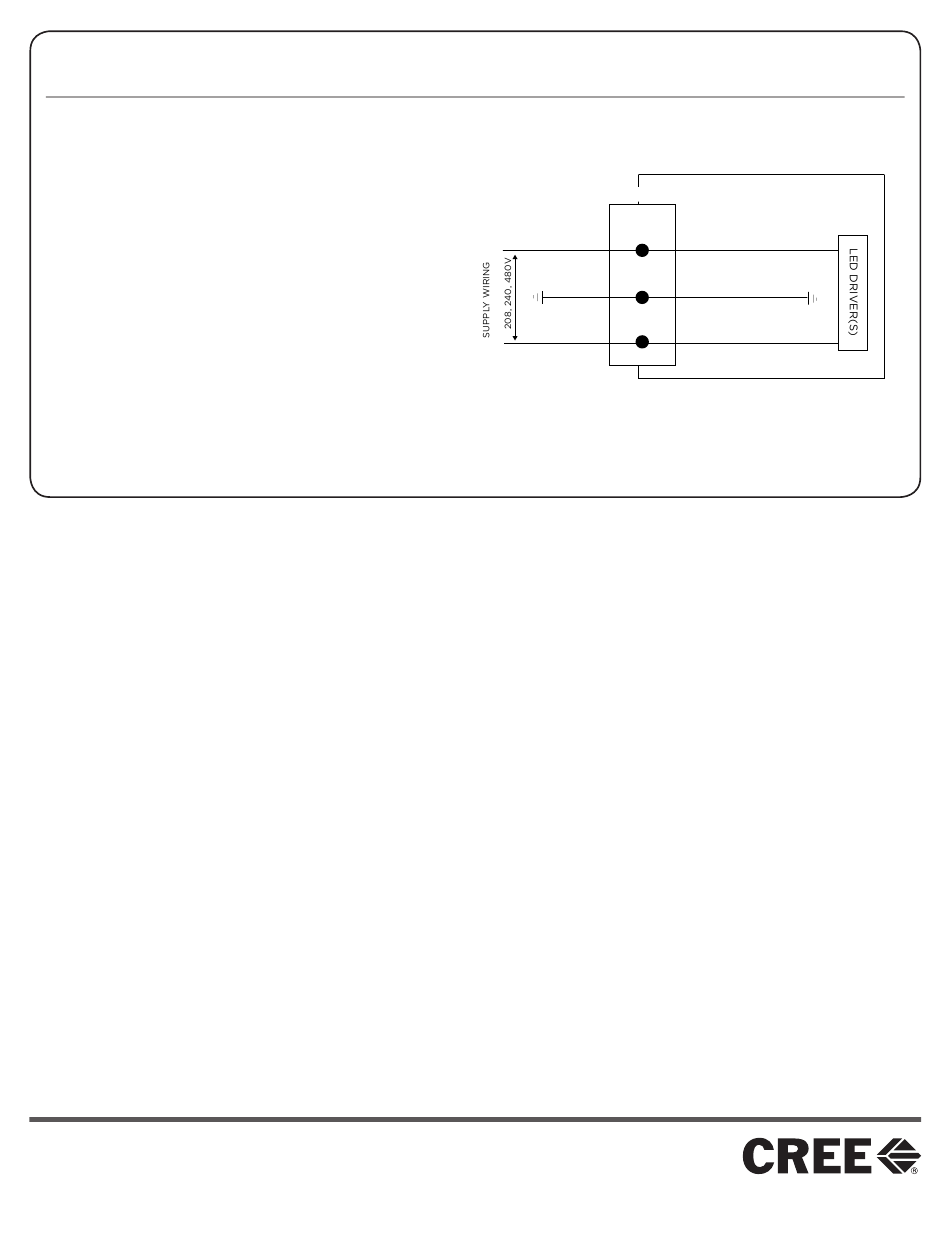

FIXTURE WIRING
TERMINAL BLOCK
N
LINE (L2) COMMON-WHITE
G
GROUND-GREEN
GROUND
L
LINE (L1)
LINE-BLACK
www.cree.com/lighting
LPN00207X0001A0
