Cree LEDway Series Installation Instructions page 2

4
1 2 3 4 5
DRV

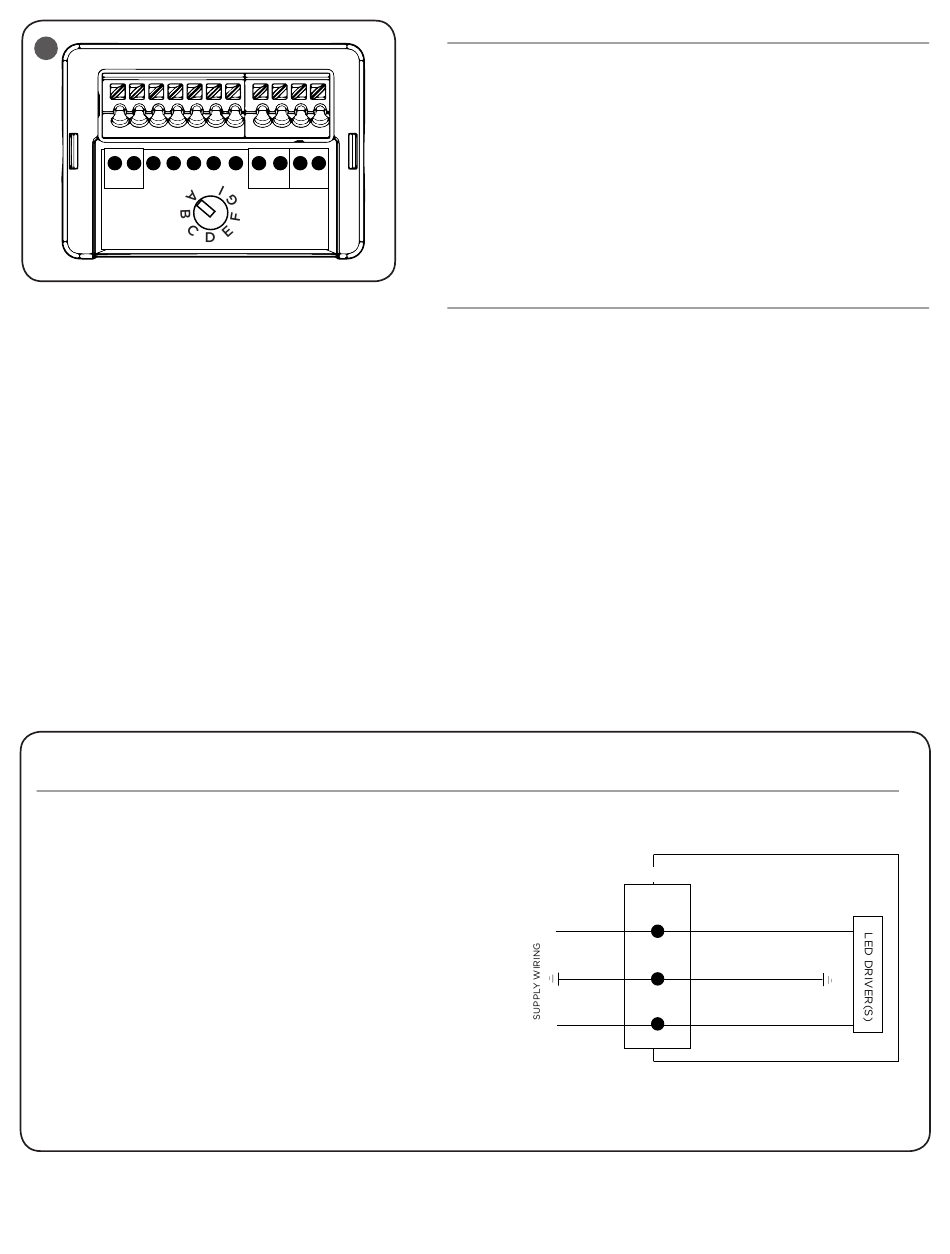

ELECTRICAL CONNECTIONS
PHASE TO NEUTRAL WIRING
STEP 1:
Make the following Electrical Connections:
a. Connect supply ground conductor to green wire position
of the terminal block within the LED Driver Enclosure.
b. Connect supply voltage conductor to black wire position
of the terminal block within the LED Driver Enclosure.
c. Connect supply neutral conductor to the white wire
position of the terminal block within the LED Driver
Enclosure.
STEP 2:
Push excess supply wires into pole.
STEP 3:
Close cover by firmly pushing cover towards fixture, making sure
that no wires are pinched and latches are fully engaged.
STEP 4:
Insulate all electrical connections with wire nuts suitable for at
least 90°C
2 of 3
DRV CRTL
NEMA RECEPTACLE (OPTIONAL)
STEP 1:
DO NOT loosen/tighten flat head screws for the NEMA receptacle.
STEP 2:
Rotational adjustment of the photo control is
STEP 3:
Engage/install photo control into NEMA receptacle on top of the
fixture.
STEP 4:
Firmly rotate photo-control with its photo-eye approximately in the 'N'
north direction. Some photo-controls operate best somewhere between
NW and NE.
FIELD ADJUSTABLE DIMMING (OPTIONAL)
NOTE: This luminaire may be provided with field adjustable dimming.
Luminaires leave the factory adjusted to the maximum setting specified
when ordered. Visit www.cree.com/Lighting/Document-Library for
product dimming spec sheet.
STEP 1:
The Dimming module is located inside the luminaire. Open the cover by
loosening the captive D-ring and allow the cover to swing open.
STEP 2:
Establish the desired input power multiplier by referring to the product
dimming spec sheet and turn the switch to the correlating position
STEP 3:
Adjust the Dimming Module, see Figure 4, to the selected position and
close the cover ensuring no wires are pinched.
NOTE: The Utility Option will be limited to the highest setting ordered.
TERMINAL BLOCK
NEUTRAL
OR LINE 2
GREEN
LINE
OR LINE 1
tool-less.
FIXTURE WIRING
N
NEUTRAL-WHITE
COMMON-WHITE
G
GROUND-GREEN
L
LINE-BLACK
LINE-BLACK
LPN00207X0001A0
