  • Page 1: Instructions For Use

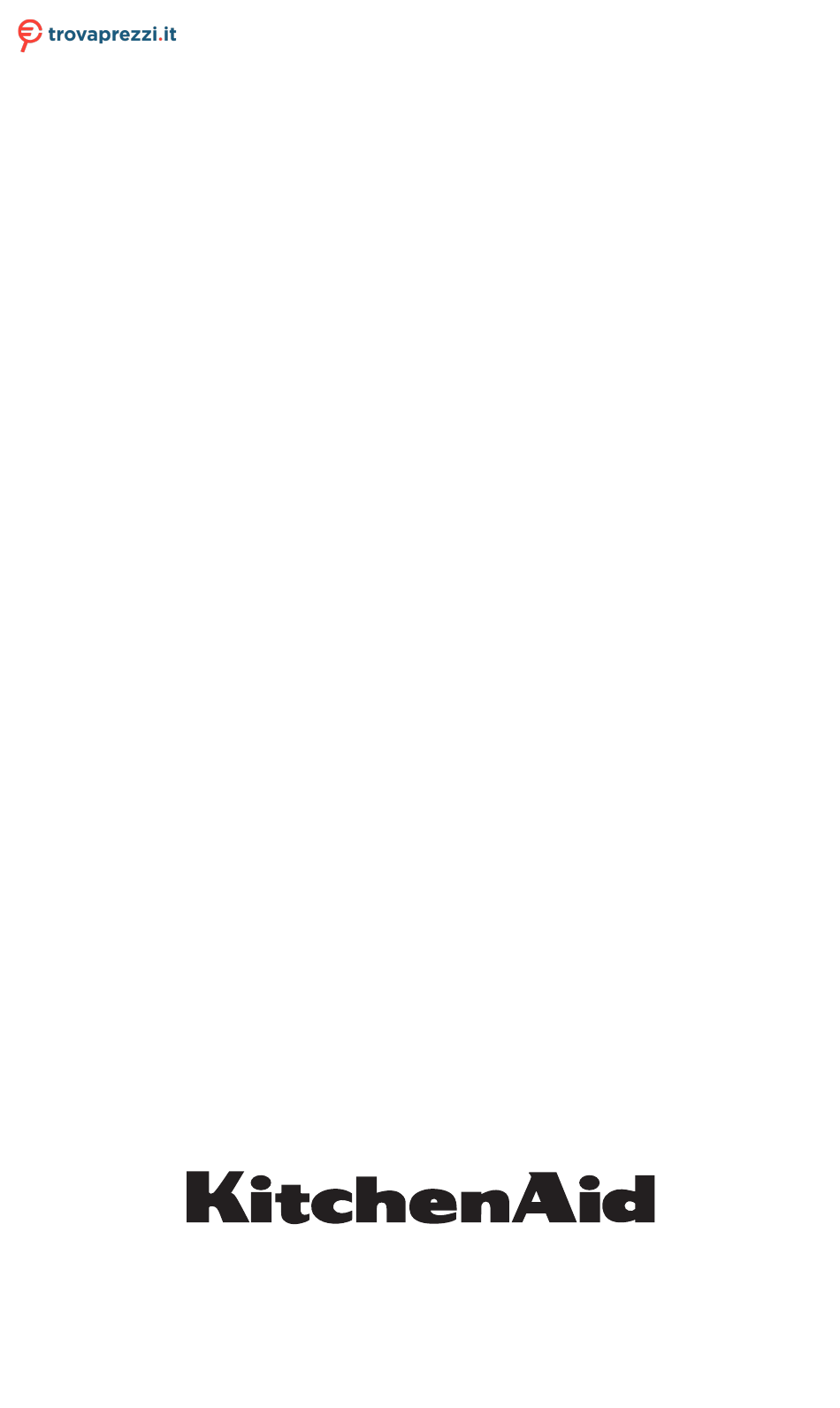

    Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Kitchenaid KHIP4 77510 o cerca il tuo prodotto tra le migliori offerte di Cucine e Piani cottura Instructions for use...
  • Page 3: Table Of Contents

    Installation diagrams Important safety instructions Safeguarding the environment Declaration of conformity Before use Using existing pots and pans Recommended pan base diameters Installation Electrical connection Instructions for use Cleaning Troubleshooting guide After-Sales Service Power level table Functions table Cooking table...
  • Page 4: Installation Diagrams

    Installation diagrams 180 mm 280 mm 180 mm 145 mm Min. 5 cm Min. 10 cm Min. 3 cm Max. 6 cm R = Min. 6,5 mm Max. 8 mm Min. 50 mm R = 11,5 mm Min. 50 mm 490 mm 750 mm R = 11,5 mm...
  • Page 5 Installation diagrams 5 mm...
  • Page 6: Important Safety Instructions

    These instructions are also available on our website: www.kitchenaid.eu IMPORTANT SAFETY INSTRUCTIONS SAFETY IS OUR PRIORITY This manual and the appliance itself display important safety messages, which must be read and then observed at all times. This is the danger symbol, regarding safety, warning of potential risks to users and others.
  • Page 7 - The electrical parts must not be accessible to the user after installation. - The appliance is designed solely for domestic use, for cooking food. No other use is permitted (e.g. heating rooms). The manufacturer declines any liability for inappropriate use or incorrect setting of the controls.
  • Page 8 - Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can become hot. - After use, switch off the hob element at its control, and do not rely on the pan detector. (Only for appliances with glass surface.). Disposal of household appliances This product is built from recyclable or reusable materials.
  • Page 9: Safeguarding The Environment

    Safeguarding the environment Disposal of packaging materials Energy saving tips The packaging material is entirely recyclable and For optimum results, observe the following advice: marked with the recycling symbol (   ). Do not • Use pots and pans whose bottom diameter is dispose of the various packaging materials equal to that of the cooking zone.
  • Page 10: Using Existing Pots And Pans

    Using existing pots and pans Use a magnet to check whether pots or pans are suitable for use on the induction hob: pots are unsuitable if they cannot be magnetically detected. Ensure pots have a smooth bottom, otherwise they may scratch the hob’s glass ceramic surface. Check dishes.
  • Page 11: Electrical Connection

    Electrical connection WARNING Disconnect the appliance from the mains power supply. Installation must be carried out by a qualified electrician who is fully aware of current safety and installation regulations. The manufacturer shall not be held liable for injury to persons or animals, or for damage to property resulting from failure to observe the regulations provided in this chapter.
  • Page 12: Instructions For Use

    Instructions for use Control panel description The control panel is equipped with touch controls: to use them, just press the corresponding symbol (a light touch is sufficient). To switch the single cooking zone OFF Switching To activate the the hob To select and flexible zone ON/OFF...
  • Page 13 Instructions for use If you are using a pot that is not suitable, not correctly positioned or not of the correct dimensions for your induction hob, the message “no pot” will appear in the display (see figure on the left). If no pot is detected within 60 seconds, the hob switches off.
  • Page 14 Instructions for use Flexible zone This function allows you to use two cooking zones as an extra-large single zone. It is perfect for oval, rectangular and elongated pans (with maximum base dimensions of 40x18 cm). After switching on the hob, press the : key: the two cooking zone displays show level “0”;...
  • Page 15 Instructions for use Simmer Bring the food to the boil, then press the relative key to select the simmering function; an appropriate power level will be set automatically to keep it just under the boil. To deactivate the function, simply press OFF on the slide touchscreen.
  • Page 16: Cleaning

    Cleaning WARNING Never use steam cleaners. Before cleaning, ensure that the cooking zones are switched off and that the residual heat indicator (“H”) is not displayed. IMPORTANT: do not use abrasive sponges or pan scourers as they could ruin the glass surface. •...
  • Page 17: After-Sales Service

    After-Sales Service Before contacting the After-Sales Service 1. See whether you can eliminate the problem on your own by referring to the “Troubleshooting guide”. 2. Turn the hob off and on again, and check whether the problem has been eliminated. If the fault persists after the above checks, contact the nearest After-Sales Service.
  • Page 18: Power Level Table

    Power level table Used for Power level Type of cooking (indicating cooking experience and habits) Ideal for rapidly increasing the temperature to Boost For heating quickly fast boiling in the case of water, or rapidly heating cooking liquids. Max. power Ideal for browning, starting to cook, frying Fry/boil deep frozen products, fast boiling.
  • Page 19: Functions Table

    Functions table Function Description of automatic functions Identifies a power level that is suitable for simmering long-cooking recipes. Suitable for cooking tomato sauce, ragù, soups, minestrone, maintaining a constant cooking level; ideal for cooking in a bain- Simmer marie (creams) and regenerating cooked food. Prevents food from boiling over or sticking to the bottom and burning, as often happens with these recipes.
  • Page 20: Cooking Table

    Cooking table Food Dishes or type Power level and cooking stage categories of cooking First stage Power Second stage Power Booster Cooking the pasta and Fresh pasta Heating the water – 9 maintaining the boil Booster Cooking the pasta and Dry pasta Heating the water –...
  • Page 21 Cooking table Food Dishes or type Power level and cooking stage categories of cooking First stage Power Second stage Power Grilled Preheating the grill Grilling on both sides Browning with oil (if Cooking and Fish Stewed with butter: power maintaining the level 6) temperature Fried...
