These instruction shall be available on website www.kitchenaid.eu Product description and symbols Using the burners Practical advice on using the hob Positioning the pan supports and wok support Hood and cabinetry clearances (mm) Injectors table Safeguarding the environment EC Declaration of conformity... -
Page 3: Product Description And Symbols

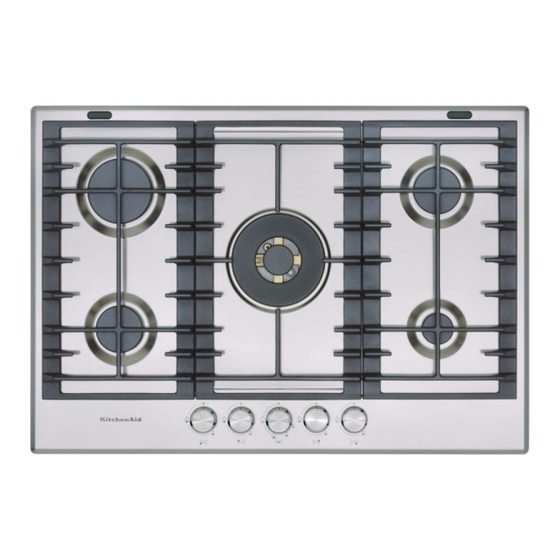

Product description and symbols 1. Removable pan supports 2. Auxiliary burner 3. Semi-rapid burner 4. Rapid burner 5. Semi-rapid burner 6. Professional wok burner 7. Auxiliary burner control knob 8. Semi-rapid burner control knob 9. Professional wok burner control knob 10. -
Page 4: Practical Advice On Using The Hob
Practical advice on using the hob Read the instructions to get the best out of your Important: hob. Do not rest or drag the pan supports upside down - Use pans with a similar diameter to the burner on the hob as this could scratch it. (see the table on this page) Failure to comply with these - Use flat bottomed pans except with the wok... -
Page 5: Hood And Cabinetry Clearances (Mm)
Hood and cabinetry clearances (mm) If a hood is to be installed above the hob, refer to the hood installation instructions to ensure the correct height above the hob Note: If the distance “A” between the wall cupboards in the kitchen is between 600mm and 730mm, the height “B”... - Page 6 Warnings and suggestions To get the most out of your hob, please read - Heat convectors (e.g. metal netting). the instructions carefully and keep them for - Using two burners to cook 1 pan. future consultation. • In the event of prolonged usage, additional •...
-
Page 7: Safeguarding The Environment
Safeguarding the environment Packing The packing material is 100% recyclable and is labelled with the recycling symbol . Please dispose of all packing responsibly and carefully. Product This appliance is marked according to the European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring that this product is disposed of correctly, you will help prevent potentially negative consequences for the environment and human... -
Page 8: Installation
• This hob is designed to operate perfectly with - created in such a way that the openings both any oven in the KitchenAid range. The inside and out cannot be obstructed, even in Manufacturer declines all responsibility should error. -
Page 9: Electrical Connection
Electrical connection The electrical connections must comply with current legislation and be carried out by a qualified, competent person. • Information on the voltage and power absorbed are shown on the serial no. plate. • The appliance must be earthed. •... -
Page 10: Daption To A Different Type Of Gas Supply
daption to a different type of gas supply If you are using a different kind of gas from the one • Regulate the minimum levels of the taps. indicated on the serial no. plate and the orange label on the back of the hob, you must replace the Note: with liquid petroleum gas ( G30/G31) injectors;... -
Page 11: Injectors Replacement In The Wok Burner
Injectors replacement in the wok burner To replace the injectors in special burner it is necessary to: 1. Remove spreader (C), the screws (B) holding the cover cap (A) and the cap itself. 2. Unscrew the inner injector (D) and the outer injector (E) with a box spanner 7. -
Page 12: Care And Maintenance
Care and maintenance Before any cleaning and/or maintenance - Do allow acid or alkaline substances, such as operation, disconnect the hob from power vinegar, mustard, salt or lemon juice to come supply and wait until it is cold. into contact with the hob for extended periods. To keep the hob in perfect condition, remove any - It is advisable to immediately wipe any spills food residuals and clean it after every use. -
Page 13: Troubleshooting Guide
Troubleshooting guide If the hob is not working properly work through 2. the burner’s openings are not blocked in the this guide before contacting our Customer relation to the thermocouple. Care Centre. 3. the end part of the thermocouple is clean. The burner does not ignite, or the flame is The pans are not stable? Check that: unsteady? Check that:... - Page 14 Whirlpool Europe S.r.l. Socio Unico Viale G. Borghi, 27 - 21025 Comerio (VA) Phone 0332.759111 - Fax 0332.759268 www.whirlpool.eu Printed in Italy 11/15 1 852271...
