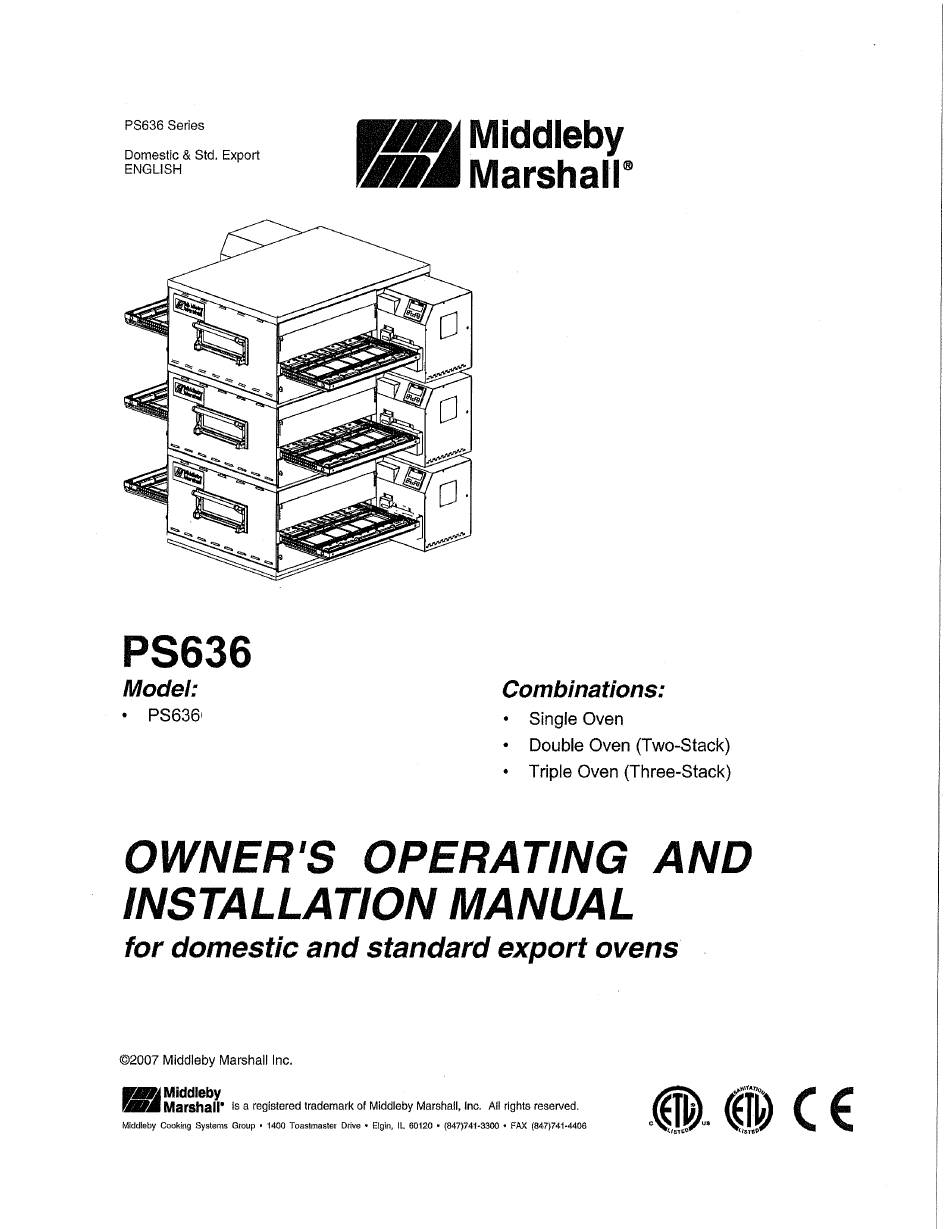

- Page 1 April 2013 Electric Series Electric Oven...
- Page 2 This manual must be kept in a prominent, easily reachable location near the oven. It is suggested to obtain a service contract with a Middleby Marshall Authorized Service Agent. WARNING FOR YOUR SAFETY, DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
- Page 6 I. PS636E OVEN SPECIFICATIONS Table 1 -1 Dimensions Single Oven Double Oven Triple Oven Overall Height 44” (1118 mm) 64-3/8” (1635 mm) 69-3/4” (1772 mm) Overall Depth 44-1/2” (1130 mm) 44-1/2” (1130 mm) 44-1/2” (1130 mm) Overall Length (w/o exit trays) 65-3/4”...
-
Page 10: Section 2 Installation
SECTION 2 SECTION 2 INSTALLATION INSTALLATION WARNING The oven must be installed on an even (level) non-flammable flooring and any adjacent walls must be non-flammable. Recommended minimum clearances are specified in the Description section of this Manual. WARNING Do not obstruct the flow of combustion and ventilation air to and from your oven. There must be no obstructions around or underneath the oven. - Page 11 NOTE: The oven, when installed, must be electrically I. UNLOADING grounded in accordance with local codes, or in the ab- Your Middleby Marshall PS636-Series Oven is shipped sence of local codes, with the National Electrical Code partially assembled. It will arrive in a carton on a crate.
- Page 12 66955 66956 67280 OPTION ELECTRIC OVEN...
- Page 18 Electric Oven...
-
Page 19: Utility Rough-In Dimensions And Positioning
SECTION 2 INSTALLATION UTILITY ROUGH-IN DIMENSIONS AND POSITIONING FOR PS636-SERIES OVENS WARNING DO NOT USE CONDUIT FOR GROUND CONNECTION. CAUTION IT IS RECOMMENDED THAT THE OVEN BE PLACED UNDER A VENTILATION HOOD FOR ADEQUATE AIR SUPPLY AND VENTILATION. ELECTRIC SUPPLY TO BE PROVIDED BY CUSTOMER Suggested dimensions are shown;... -
Page 20: Electrical Connection Information For Ps624-Series Ovens
SECTION 2 INSTALLATION III. ELECTRICAL CONNECTION INFORMATION IV. ELECTRIC SUPPLY FOR PS624-SERIES OVENS. Electrical connection is a fixed conduit connection. See Electrical Specifications chart on page 2. WARNING The supply conductors must be of the size and material (copper) recommended to provide the cur- Authorized supplier personnel normally ac- rent required;... - Page 30 6a, b 11a, b, c 19a, b KEY SPARE PARTS PS636 ELECTRIC ITEM DESCRIPTION 65564 Digital Display, Programmed 65756 Motor, Conveyor Drive 65566 Conveyor Control Board 66065 Inverter, ½ HP (230V Input) 61186 Power Supply 44914 Power Relay, 208-240V 44568 Power Relay, 380-415V 36451 Fan,Cooling...
