owner's
operating
& installation
manual

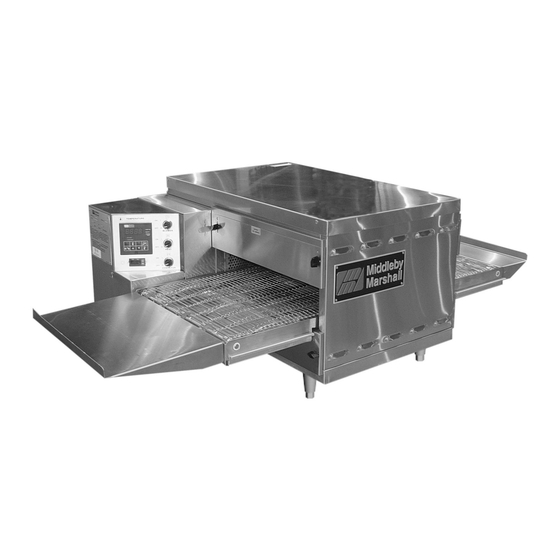

PS520-Series OVENS
Model PS520G
PS520 (Double)
©2006 Middleby Marshall
®
Inc.
PS520-Series Gas Ovens: English
October 17, 2006
PS520 (Single)
PS520 (Triple)
Part No. 59223
Price $30.00
P: 10/06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS520G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Middleby Marshall PS520G

Summary of Contents for Middleby Marshall PS520G

  • Page 1 Marshall Marshall Marshall Marshall Marshall A MIDDLEBY COMPANY owner's operating & installation manual PS520-Series OVENS Model PS520G PS520 (Double) Inc. ©2006 Middleby Marshall ® PS520-Series Gas Ovens: English October 17, 2006 PS520 (Single) PS520 (Triple) Part No. 59223 Price $30.00...
