Middleby Marshall PS314 Owner's Operating & Installation Manual
  1. Manuals
  2. Brands
  3. Middleby Marshall Manuals
  4. Oven
  5. PS314
  6. Owner's operating & installation manual

Middleby Marshall PS314 Owner's Operating & Installation Manual

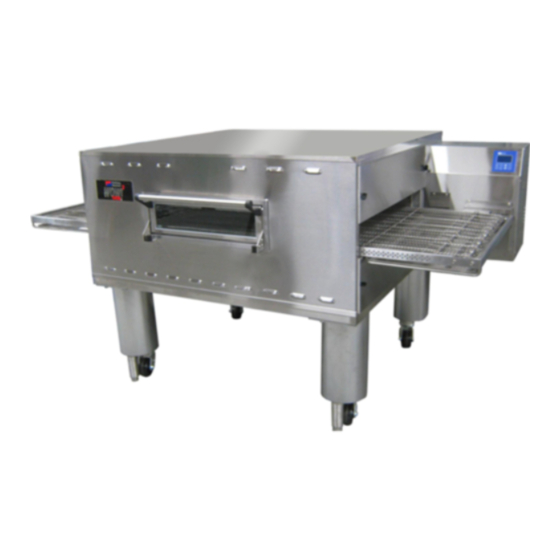

Gas and electric ovens, single lower oven, single upper oven on stand, double oven two-stack, tandem oven, double two-stack tandem oven
Hide thumbs Also See for PS314:

Advertisement

Quick Links

Download this manual See also: Manual
PS300 Series
Gas and Electric (AGA/UL)
ENGLISH/French/Spanish

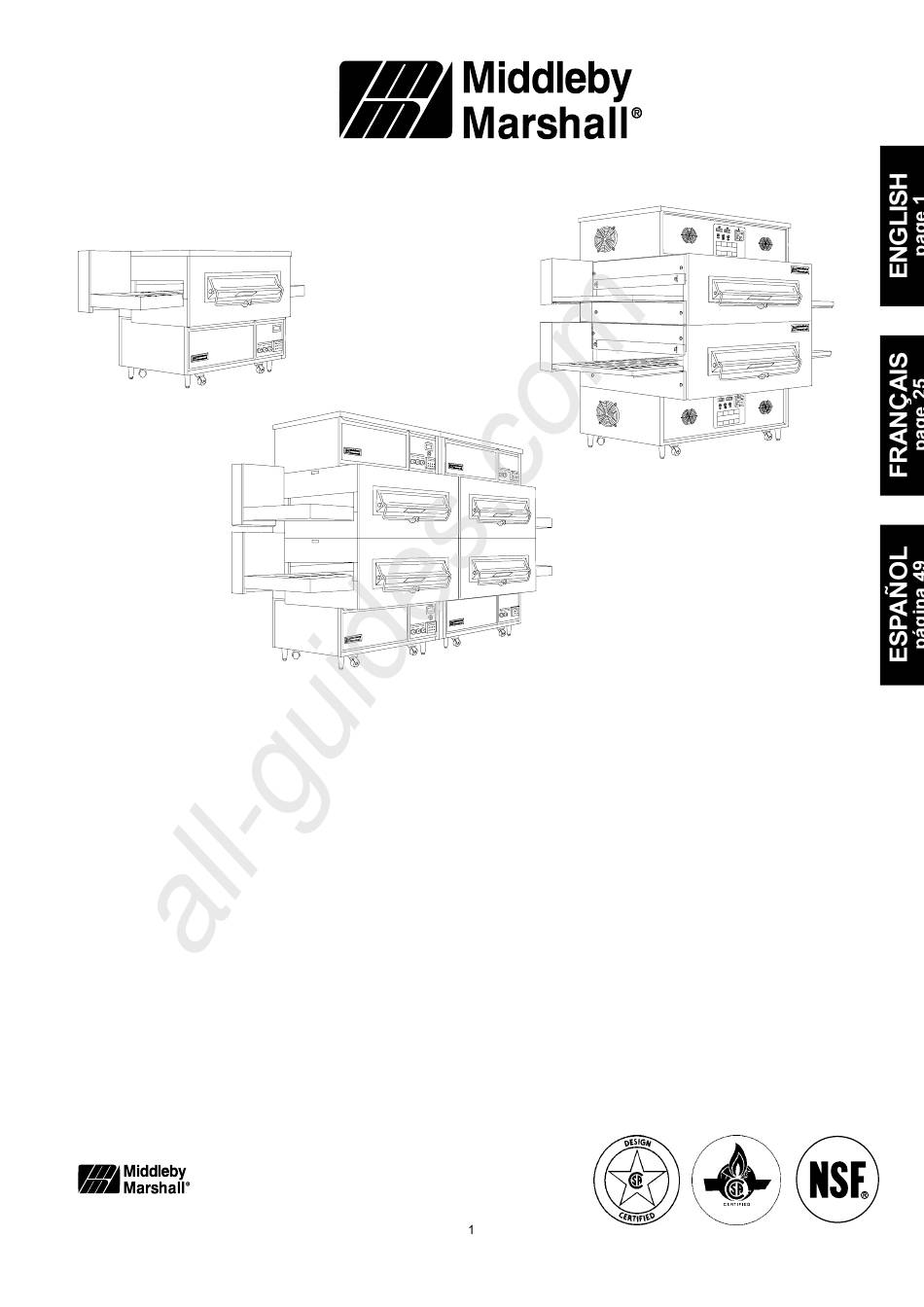

PS300 Series Gas and Electric Ovens
Models:
•
PS310
•
PS314
•
PS360/360Q/360S
•
PS360WB
•
PS360EWB
•
PS360WB70
OWNER'S OPERATING
& INSTALLATION
MANUAL
© 2000 Middleby Marshall, Inc.
is a registered trademark of Middleby Marshall, Inc. All rights reserved.
Middleby Cooking Systems Group • 1400 Toastmaster Drive • Elgin, IL 60120 • (847)741-3300 • FAX (847)741-4406
All manuals and user guides at all-guides.com
Combinations:
•
•
•
•
•
Single Lower Oven
Single Upper Oven on Stand
Double Oven (Two-Stack)
Tandem Oven
Double (Two-Stack) Tandem Oven
P/N 41823
Rev. B • V3 • 5/00

Advertisement

loading
Need help?

Need help?

Do you have a question about the PS314 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Middleby Marshall PS314

Summary of Contents for Middleby Marshall PS314

  • Page 1 • PS360WB70 OWNER'S OPERATING & INSTALLATION MANUAL © 2000 Middleby Marshall, Inc. is a registered trademark of Middleby Marshall, Inc. All rights reserved. Middleby Cooking Systems Group • 1400 Toastmaster Drive • Elgin, IL 60120 • (847)741-3300 • FAX (847)741-4406...
  • Page 2 NOTICE: CONTACT YOUR MIDDLEBY MARSHALL AUTHORIZED SERVICE AGENT TO PERFORM MAINTENANCE AND REPAIRS. AN AUTHORIZED SERVICE AGENCY DIRECTORY IS SUPPLIED IN YOUR INSTALLATION KIT. NOTICE: Using any parts other than genuine Middleby Marshall factory manufactured parts relieves the manufacturer of all warranty and liability.
  • Page 3 All manuals and user guides at all-guides.com TABLE OF CONTENTS page page SECTION 1 - DESCRIPTION ............ 4 SECTION 3 - OPERATION ............16 SECTION 2 - INSTALLATION ..........6 SECTION 4 - MAINTENANCE ..........20...

  • Page 4: Section 1 - Description

    Window (on ovens so equipped): G. Machinery Compartment Access Panel: H. Control Compartment Access Panel: Control Panel: Eyebrows (on ovens so equipped): III. OVEN SPECIFICATIONS A. Dimensions PS310 PS314 PS360/360Q/360S PS360 Tandem PS360WB PS360WB Tandem PS360EWB PS360WB70 Overall Height Overall Depth Overall Length...
  • Page 5 All manuals and user guides at all-guides.com B. General specifications (per oven cavity) PS310 PS314 PS360/360Q/360S PS360WB PS360EWB PS360WB70 Weight Shipping Weight Shipping Carton Vol. Rated Heat Input Max. Operating Temp. Air Blowers Air Jet Velocity (avg.) Warmup Time C. Gas orifice and pressure specifications - for gas-fired ovens (per oven cavity) Main Orifice I.D.

  • Page 6: Section 2 - Installation

    CAUTION For additional installation information, refer to the following documents: PS360 Pre-Installation Procedures Manual (Middleby Marshall P/N 88210-0024) PS360 Installation Manual (Middleby Marshall P/N 88210-0025) Or, contact your local Authorized Service Agent.
  • Page 7 All manuals and user guides at all-guides.com I. INSTALLATION KIT Fig. 2-1 - Installation Kit A. Installation kit components (one kit required per cavity) Item Description Part Number Lower Oven w/o Top Lower Oven w/Top Upper Oven NOTE B. Additional installation kit components for gas ovens Item Description Part Number...
  • Page 8 All manuals and user guides at all-guides.com II. VENTILATION SYSTEM B. Recommendations IMPORTANT Where national or local codes require the installation of fire suppression equip- ment or other supplementary equipment, DO NOT mount the equipment directly to the oven. MOUNTING SUCH EQUIPMENT ON THE OVEN MAY: •...
  • Page 9 All manuals and user guides at all-guides.com III. ASSEMBLY Figure 2-3 - Exploded View, Oven Stand A. Stacking Attachment plates inc. w/ upper oven installation kit B. Stands Casters inc. w/oven C. Flue Vent(s) Figure 2-4 - Thermocouple Installation Locations IV.
  • Page 10 All manuals and user guides at all-guides.com V. TANDEM OVEN ASSEMBLY NOTE Figure 2-7 Oven Positioning and Alignment RIGHT OVEN LEFT OVEN Alignment Air finger plate retaining screws Slot for alignment plate Sealing gasket assembly (pre-mounted) NOTE: Figure 2-8 - Cooling Fan Removal Mating surface of ovens (shown from lower rear)
  • Page 11 All manuals and user guides at all-guides.com Figure 2-9 - Bolts and Spacers 2-1/2" x 2-1/2" (64x64mm) spacers 2-1/2" x 8" (64x203mm) spacers Figure 2-10 - Aligning the Sections Figure 2-11 - Trim Strip Installation Trim strip...
  • Page 12 All manuals and user guides at all-guides.com VI. CONVEYOR INSTALLATION Figure 2-12 - Removing the Conveyor Drive Sprocket A. Installing the Conveyor - All ovens EXCEPT Tandem models NOTE Loosen conveyor collar set screw, then pull shaft straight out Figure 2-13 - Inserting the Conveyor Figure 2-14 - Conveyor retainers NOTE: Retainers on both ends of...
  • Page 13 All manuals and user guides at all-guides.com B. Installing the Conveyor and Belt - Tandem oven models Figure 2-17 - Tandem Conveyor Installation NOTE Hinged end section IMPORTANT Hinged end section Figure 2-18 - Conveyor and Inside Master Link Orientation Direction CORRECT of travel...
  • Page 14 All manuals and user guides at all-guides.com VIII. ELECTRICAL SUPPLY (all ovens) CAUTION WARNING Authorized supplier personnel normally accomplish the connections for the ventilation system, electric supply, and gas supply, as arranged by the customer. Following these connections, the factory-authorized installer can perform the initial startup of the oven.
  • Page 15 All manuals and user guides at all-guides.com IX. GAS SUPPLY (gas ovens only) CAUTION 3. If incoming pressure is over 14” W.C. (35mbar), a sepa- rate regulator MUST be installed in the line BEFORE the DURING PRESSURE TESTING NOTE ONE OF THE FOLLOWING: individual shutoff valve for the oven.

  • Page 16: Section 3 - Operation

    All manuals and user guides at all-guides.com SECTION 3 - OPERATION I. LOCATION AND DESCRIPTION OF CONTROLS Fig. 3-1 - Control Panel Conveyor Speed Conveyor Speed Digital Temperature (or " ") (or " ") (or " ") controller(s) controller(s) controller "BLOWER"...
  • Page 17 All manuals and user guides at all-guides.com II. NORMAL OPERATION - STEP-BY-STEP A. DAILY STARTUP PROCEDURE wait B. DAILY SHUTDOWN PROCEDURE - - - - - or - - - - - wait IMPORTANT CAUTION wait The burner will not operate and gas will not flow through the burner without electric power.
  • Page 18 All manuals and user guides at all-guides.com III. QUICK REFERENCE: DIGITAL TEMPERATURE CONTROLLER "HEAT ON" Light Display "SP LOCK" Light "SET PT" (setpoint) Light OVERTEMP Light "ACTUAL TEMP" Light Service Key Temperature Key Set Point Key Unlock Key Up Arrow and Down Arrow Keys...
  • Page 19 All manuals and user guides at all-guides.com V. QUICK REFERENCE: TROUBLESHOOTING SYMPTOM PROBLEM SOLUTION IF THESE STEPS FAIL TO RESOLVE THE PROBLEM, CONTACT YOUR LOCAL MIDDLEBY MARSHALL AUTHORIZED SERVICE AGENT. A SERVICE AGENCY DIRECTORY IS SUPPLIED WITH YOUR OVEN.

  • Page 20: Section 4 - Maintenance

    DO NOT use a caustic oven cleaner, which can damage the aluminized bake chamber surfaces. NOTE ANY replacement parts that require access to the interior of the oven may ONLY be replaced by a Middleby Marshall Authorized Service Agent. NOTE It is strongly recommended that the 3-Month Maintenance and 6-Month Maintenance procedures in this section be performed ONLY by a Middleby Marshall Authorized Service Agent.
  • Page 21 All manuals and user guides at all-guides.com I. MAINTENANCE - DAILY Figure 4-1 - Cooling Fan/Vent Locations: All ovens except PS360EWB and PS360WB70 Vents in top rear edge of upper oven REAR FRONT CAUTION Vents in floor 2 rear fans, of lower oven upper and lower ovens Figure 4-2 - Cooling Fan/Vent Locations: PS360EWB...
  • Page 22 All manuals and user guides at all-guides.com II. MAINTENANCE - MONTHLY Figure 4-4 - Removing Air Fingers and Plates NOTE Air Finger Blank Plate NOTE Figure 4-5 - Disassembling the Air Fingers Manifold Inner plate Outer Plate Pull outer plate straight up CAUTION and off...
  • Page 23 All manuals and user guides at all-guides.com III. MAINTENANCE - EVERY 3 MONTHS IV. MAINTENANCE - EVERY 6 MONTHS Figure 4-6 - Split Belt Idler Shaft All ovens Collar Conveyor adjustment screw (2) PS360EWB and PS360WB70 Only PS360EWB PS360WB70 Only Screw CAUTION Figure 4-7 - Split Belt Drive Shaft...
  • Page 24 All manuals and user guides at all-guides.com V. KEY SPARE PARTS KIT - Available separately. See Figure 4-9. A. Key Spare Parts Kit components (all ovens) B. Additional Key Spare Parts Kit components for gas ovens Item Description Part Number Item Description Part Number...

This manual is also suitable for:
