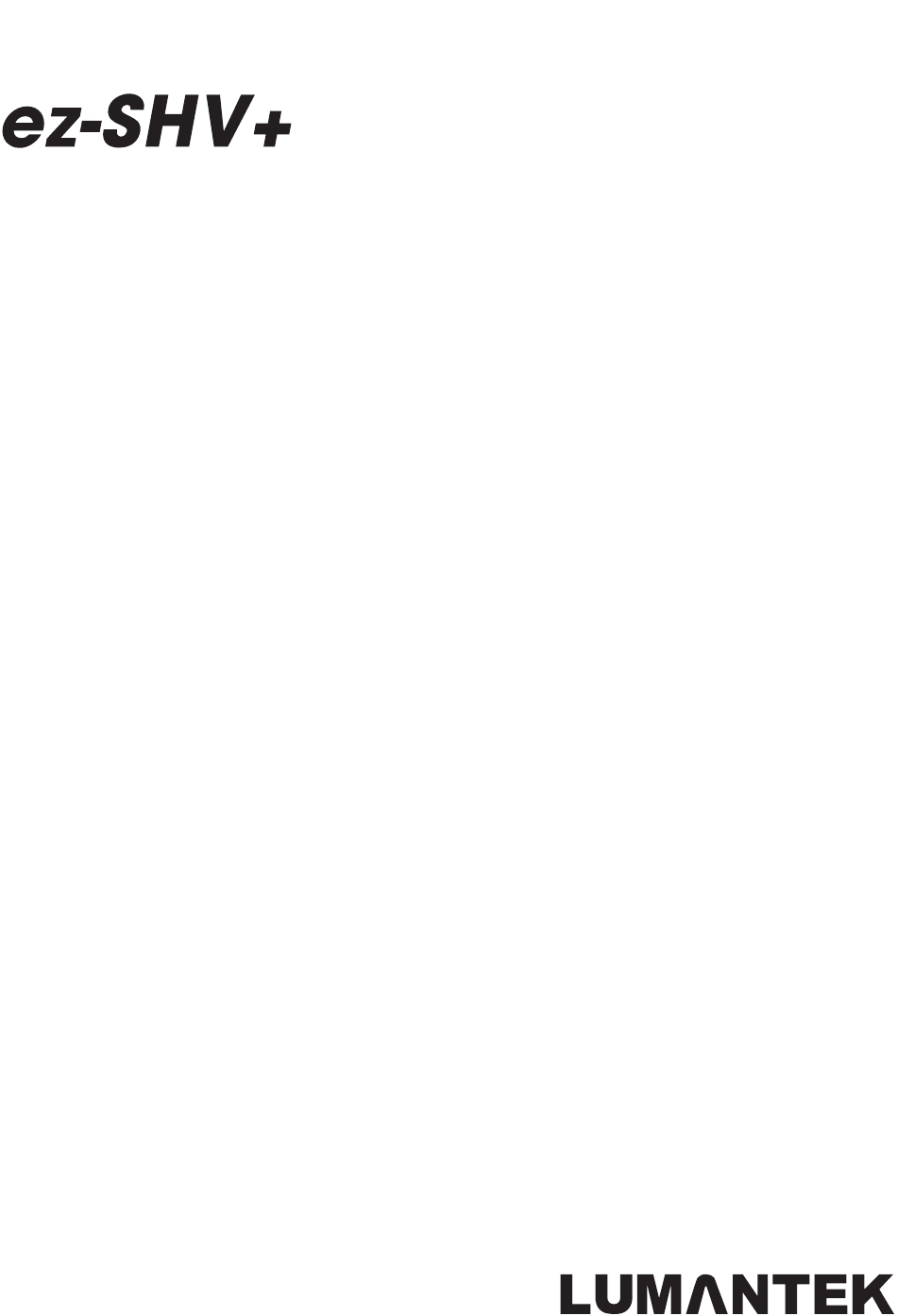

- Page 1 SDI to HDMI Converter with Display and Scaler Operation manual Manual Updated November. 2019...
- Page 3 Copyright © 2006~2019 LUMANTEK Co., Ltd. All Rights Reserved This document contains information that is proprietary to LUMANTEK. CO., LTD. The information in this document is believed to be accurate and reliable; however, LUMANTEK assumes no responsibility or liability for...
- Page 5 01. ez-SHV+ (SDI to HDMI Converter with Display and Scaler) Lumantek's ez-SHV+ is an SDI to HDMI converter with Display and Scaler. The ez-SHV+ does more than just coverting. Through its 2.7 inch TFT-LCD, it dislays the video input. The display also shows an eye pattern for video quality monitoring, the resolution of incoming video and approximate cable length relative to the quality of the video.
-
Page 6: Specifications
02. Interface Specifications DC Input SDI OUT DC Power Input SDI Video loop output port +5V to +18V SDI IN SDI Video DIP Switch input port Resolution and other settings switch MODE Switch HDMI OUT AUDIO OUT LCD Menu setting switch HDMI Video output Analog audio output port port... -
Page 7: Dip Switch Settings
02. Interface DIP Switch Settings VIDEO OUT : Video output resolution (Position 1, 2, 3, 4) - 720x480i@59.94 (DIP SW : 1111) - 720x576i@50 (DIP SW : 0111) - 1280x720p@50 (DIP SW : 1011) - 1280x720p@59.94 (DIP SW : 0011) - 1280x720p@60 (DIP SW : 1101) - 1920x1080i@50 (DIP SW : 0101) - 1920x1080i@59.94 (DIP SW : 1001) - Page 8 02. Interface LCD Displays Input Resolution HDMI Output Resolution Output Resolution SDI Input resolution * Resolution configured * Shown as “Unknown” through DIP Switch where there is no input. * If input is 3G Level-B, 1080P60B will be displayed. 1080i30 1080P60 SHORT Input cable length...
- Page 9 02. Interface LCD Displays ① LCD Display ON/ OFF Turn off the display by pressing and holding the mode switch for less than 6 sec Turn on the display by pressing and holding the mode switch for less than 6 sec...
- Page 10 02. Interface LCD Displays ② SDI input eye pattern or audio level meter Turn on the eye pattern by pressing the mode switch for less than 1 sec. Turn on audio level meter by pressing the mode switch for less than 1 sec.
- Page 11 02. Interface LCD Displays ③ LCD monitor rotation (by 0 or 180 degrees) Rotate to 0 degrees by pressing and holding for more than 6 sec Rotate to 180 degrees by pressing and holding for more than 6 sec...
- Page 12 02. Interface LCD Displays ④ ON/OFF HDMI mirrored output for teleprompter HDMI Output Please TURN OFF the LCD Display first. *Please refer to page 00 for the LCD TURN ON the mirrored output Display ON/OFF application by pressing the mode *Supports only HD resolutions switch for more than 6 seconds while the LCD OFF.
-
Page 13: Product Configuration
03. Product Configuration ez-SHV+ AC to DC adapter Adapter specifications AC in : AC100 to 240V,50/60Hz DC out : DC12V, 1A... -
Page 14: Technical Specifications
04. Technical Specifications Data Input Connections SDI Video Input: SD/HD/3G-SDI (BNC Power : DC Power Input (DC Jack) x1 75Ω) x1 DIP Switch : (6 Pole) x1 Video In/Out Video Formats: Resolution, Video Output Ratio, LCD - 720x480i@59.94/60 Brightness - 720x576i@50 MODE : (Push Switch) x1 LCD ON/OFF, - 1280x720p@50/59.94/60 Menu Selection... -
Page 16: Customer Services
CUSTOMER SERVICES gs@lumantek.co.kr TEL(Dir) : +82-2-6947-7429 FAX: +82-2-6947-7440...
