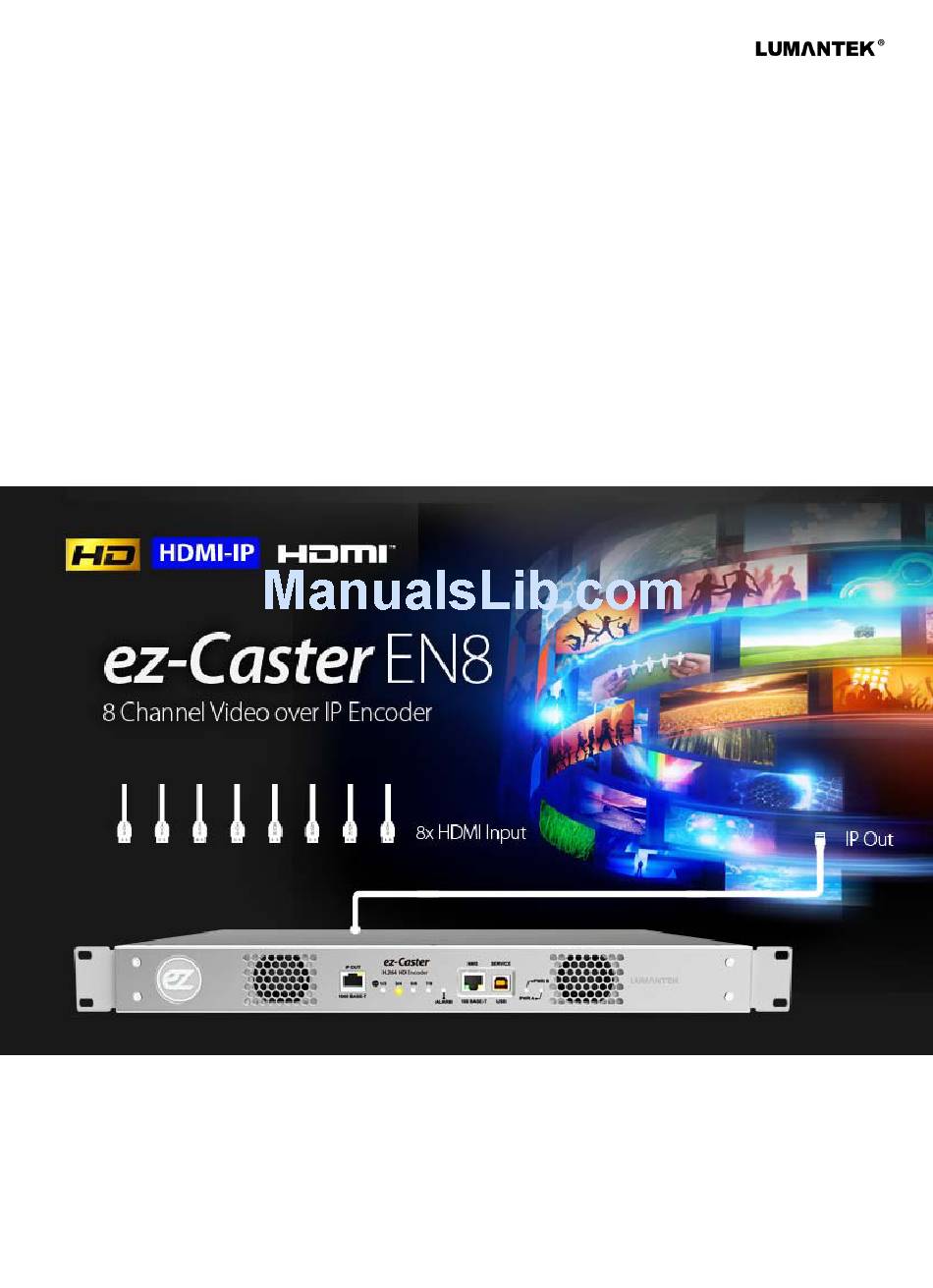

- Page 1 EN8 – H.264 HD Video over IP Encoder User Manual ez-Caster EN8 HD Video over IP Encoder H.264 HD Encoder Chapter No. 1-4...
- Page 2 This publication may contain technical issues, inaccurate information or typos. These will be revised in revised edition, if there is any. No part of this publication is subject to be reproduced, stored in retrieval system, or transmitted in any forms, or any means without the prior consent by Lumantek. Trademarks...
- Page 3 Avoid wearing loosened clothes or accessories during installation/Operation. Avoid any unnecessary actions that may damage/harm system or personnel. Do NOT open the system unless advised by Lumantek representative. Lumantek takes no responsibility on units with broken RMA seals. Power Precautions Please check cable overload before connecting the system to the power supply.
-
Page 4: Table Of Contents
EN8 – H.264 HD Encoder / Manual Contents 1. Introduction ------------------------------------------ 2. Specification ------------------------------------------ 3. Product Description --------------------------------- 3.1. Product Parts Name 3.2. Components 4. Product Operation ---------------------------------- 4.1. Status LED 4.2. Control 4.4. Specific Configuration Appendix #1 : Input and Output Resolutions ------ Appendix #2 : Audio Bit Rate -------------------------- Appendix #3 : GOP --------------------------------------- Chapter No. -
Page 5: Introduction
EN8 – H.264 HD Encoder H.264 HD Encoder 1. Introduction ez-Caster EN8 is 8 channels H.264 HD Encoder. It consists of HDMI inputs and IP output. it supports H.264 Video compression and MPEG-1 Layer2, MPEG-2 AAC, MPEG-4 AAC for Audio compression. -
Page 6: Specification
EN8 – H.264 HD Encoder / Manual 2. Specification Type • 8Ch HD Encoder + IP Output • HDMI 1.3 x8 EA Inputs • 1920x1080 @ 60i, 59i, 50i, 30p, 29p, 24p, 23p, 25p • 1280x720 @ 60p, 59p, 50p Input Video •... -
Page 7: Product Description
④ NMS : LAN port for device control (10BaseT/100BaseTX half/full duplex). ⑤ SERVICE : Port for firmware update (USB2.0). ⑥ PWR LED : POWER LED(PWR A/PWR B). < ez-Caster EN8 Main frame – Rear > ① PWR A, PWR B : Redundancy power ② CH1 : HDMI Input 1 ③... -
Page 8: Components
EN8 – H.264 HD Encoder / Manual 3.2. Components This product is composed of followings ① ez-Caster EN8 Main Frame. ② AC Power Cord : 220V AC Power Cord. ez-Caster EN8 Main Frame AC power cord Chapter No. 1-4... -
Page 9: Product Operation
EN8 – H.264 HD Encoder / Manual 4. Product Operation 4.1. Status LED Normal, Status LED is GREEN and RED indicate Alarm. CH 1/2 LED - indicates LAN active Status of CH1 and CH2. CH 3/4 LED - indicates LAN active Status of CH3 and CH4. CH 5/6 LED - indicates LAN active Status of CH5 and CH6. -
Page 10: Control
EN8 – H.264 HD Encoder / Manual 4.2. Control Execute NMS software to connect the device and change the setting. (Further information and operation will be added later) Chapter No. 1-4... -
Page 11: Specific Configuration
EN8 – H.264 HD Encoder / Manual 4.3. Specific Configuration (Further information and operation will be added later). Chapter No. 1-4... -
Page 12: Appendix #1 : Input And Output Resolutions
EN8 – H.264 HD Encoder / Manual Appendix #1 : Input & Output Resolutions Chapter No. 1-4... -
Page 13: Appendix #2: Audio Bit Rate
EN8 – H.264 HD Encoder / Manual Appendix #2: Audio Bit Rate MPEG-1 Audio Layer2 64 kbps 96 kbps 112 kbps 128 kbps (default) 160 kbps 192 kbps 224 kbps 256 kbps 320 kbps 384 kbps - MPEG-2 AAC / MPEG-4 AAC 48~512(kbps) 128 kbps(default) Chapter No. -
Page 14: Appendix #3: Gop
EN8 – H.264 HD Encoder / Manual Appendix #3: GOP Gop Adaptive Gop Structure Gop Size Multiple of 3 (6,9,12,…,63) Multiple of 3 (6,9,12,…,63) Multiple of 2 (6,9,10,…,62) Multiple of 4 (8,12,16,…,60) 5(0/1/2: No need to be Multiple of 4(6,7,8,9,…,63) impossible) 5(0/1/2: No need to be Multiple of 4(6,7,8,9,…,63)
