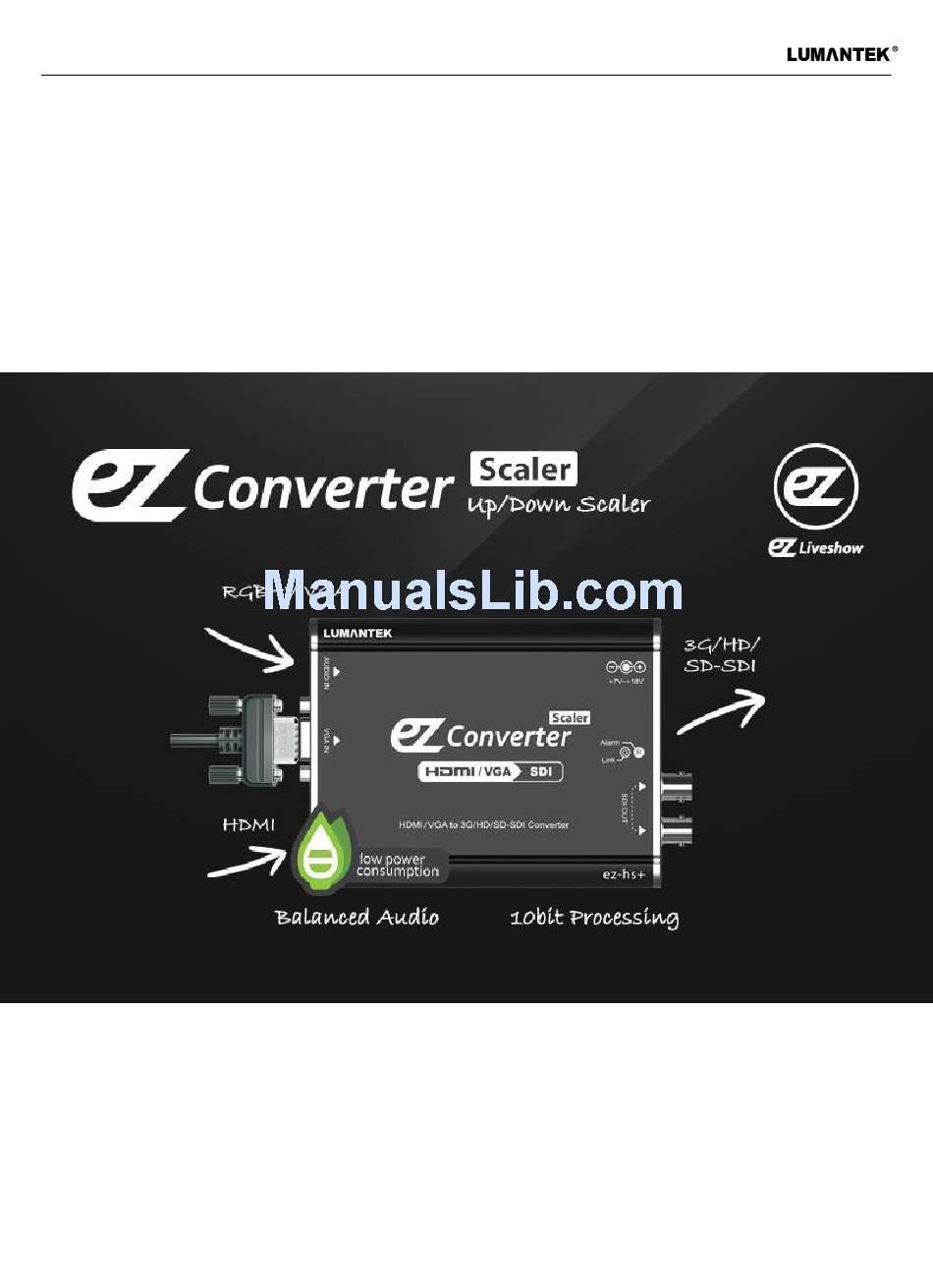

- Page 1 (HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual Manual ez-Converter ez-hs+ (HDMI/VGA To 3G/HD/SD-SDI Converter with Scaler) Model : ez-hs+...
- Page 2 This document contains information that is proprietary to LUMANTEK.CO., LTD. The information in this document is believed to be accurate and reliable; however, LUMANTEK assumes no responsibility or liability for any errors or inaccuracies that may appear in this document, nor for any infringements of patents or other rights to third parties resulting from its use.
-
Page 3: Table Of Contents
(HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual Contents Introduction ------------------------------------- ez-hs+ interface -------------------------------- 2.1 system information 2.2 Package contents 2.3 DIP Switch configuration 2.4 System specification 3. System flow diagram ---------------------------... -
Page 4: Introduction
(HDMI/VGA To 3G/HD/SD-SDI Converter With Scaler) HDMI and VGA to 3G/HD/SD-SDI signal conversion 1. Introduction ez-hs+ is one of Lumantek’s ezConverter series featuring HDMI,VGA to 3G/HD/SD-SDI signal conversion. Selectable system resolution allows designing a new broadcasting system with a specific resolution standard xternal 3.5mm stereo for HDMI and VGA Signals. -
Page 5: Ez-Hs+ Interface
(HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual 2. ez-hs+ Interface 2.1 System Information < ez-hs+ Front > < ez-hs+ Rear> DIP Switch (Power input) Audio input VGA input HDMI input SDI input 3.5mm Stereo (Same Signal) LED Input indicator 2.2 Package contents... -
Page 6: Dip Switch Configuration
(HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual 2.3 DIP Switch configuration // HDMI Input signal // VGA 0 : Up 1 : Down // E mbedded audio (When HDMI selected) Audio External audio (3.5mm Stereo) 1:1 Aspect ratio ( Full Screen ) -
Page 7: System Specification
(HDMI/VGA to 3G/HD/SD-SDI Converter With Scaler) / Manual 2.4 System Specification(ez-hs+ (HDMI/VGA to 3G/HS/SD-SDI Converter with Scaler) Video Input Format HDMI 640x480 720x480i @59.94, 720x576i @50 800x600 1280x720p @50/59.94/60 1024x768 1920x1080i @50/59.94/60 1280x1024 1920x1080p @23.98/24/25 1600x1200 1920x1080p @29.97/30 1920x1080 1920x1080p @50/59.94/60... - Page 8 / ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual Manual ez-as+ (CVBS to 3G/HD/SD-SDI Converter with Scaler)
- Page 9 This document contains information that is proprietary to LUMANTEK.CO., LTD. The information in this document is believed to be accurate and reliable; however, LUMANTEK assumes no responsibility or liability for any errors or inaccuracies that may appear in this document, nor for any infringements of patents or other rights to third parties resulting from its use.
- Page 10 / ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual Contents Introduction ----------------------------------- ez-as+ interface ------------------------------ 2.1 system information 2.2 Package contents 2.3 DIP Switch configuration 2.4 System specification System flow diagram ----------------------...
-
Page 11: Introduction
/ ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual ez-as+ (CVBS To 3G/HD/SD-SDI Converter With Scaler) CVBS to 3G/HD/SD-SDI signal conversion 1. Introduction ez-as+ is one of Lumantek’s ezConverter series featuring CVBS/Analog to 3G/HD/SD-SDI signal conversion. Selectable system resolution allows designing a new broadcasting system with a specific xternal 6.5mm (1/4’’) -
Page 12: Ez-As+ Interface
/ ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual 2. ez-as+ Interface 2.1 System Information < ez-as+ Front > < ez-as+ Rear> Power SDI output Audio input 3.5mm Stereo CVBS input DIP Switch LED Input indicator 2.2 Package contents... -
Page 13: Dip Switch Configuration
/ ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual 2.3 DIP Switch configuration Input Signal // N/A 0 : Up // N/A 1 : Down Audio // Pedestal is not present // 7.5 IRE pedestal is present // 1:1 Aspect ratio ( Full Screen ) -
Page 14: System Specification
/ ez-as+ (CVBS to 3G/HD/SD-SDI Converter With Scaler) / Manual 2.4 System Specification ez-as+ (CVBS to 3G/HS/SD-SDI Converter with Scaler) Video Input Format CVBS NTSC 720x480i @59.94, 720x576i @50 720x576i @50 Video Output Format 720x480i @59.94, 720x576i @50 1280x720p @50/59.94/60 1920x1080i @50/59.94/60...
