- Page 1 Mini-Converter BAT-3HS / HDMI to 3G/HD/SD-SDI / Manual ver1.0 Updated 2012/02/06 manual HDMI to 3G/HD/SD-SDI Chapter No. 1-2...
- Page 2 / Operational Manual Mini-Converter / BAT-3HS / HDMI to 3G/HD/SD-SDI Manual ver 1.0 Updated 2012/02/06 TRADEMARKS & COPYRIGHT This document contains information that is proprietary to LUMANTEK. No part of this publication may be reproduced, Environmental Issues stored in a retrieval system, or transmitted, in any form, or by...
-
Page 3: Operator Safety Summary
/ Operational Manual Mini-Converter / BAT-3HS / HDMI to 3G/HD/SD-SDI Manual ver 1.0 Updated 2012/02/06 OPERATOR SAFETY SUMMARY grounding prong. The wide blade or third prong is provided for your For your protection, please read these safety instructions safety. If the provided plug does not fit into your outlet, completely before operating the equipment and keep consult an electrician. - Page 4 / Operational Manual Mini-Converter / BAT-3HS / HDMI to 3G/HD/SD-SDI Manual ver 1.0 Updated 2012/02/06 damaged If the apparatus fails to operate in accordance product exists to repair or replace a defective product. with the operating instruction Lumantek’s replacement product under its limited warranty will be manufactured from new and serviceable used parts.
- Page 5 / Operational Manual Mini-Converter / BAT-3HS / HDMI to 3G/HD/SD-SDI Manual ver 1.0 Updated 2012/02/06 The product was stolen from Lumantek. The asserted defect: - Is not present, - Cannot reasonably be fixed because of damage occurring when the product is in the possession of someone other...
-
Page 6: Hdmi To 3G/Hd/Sd-Sdi

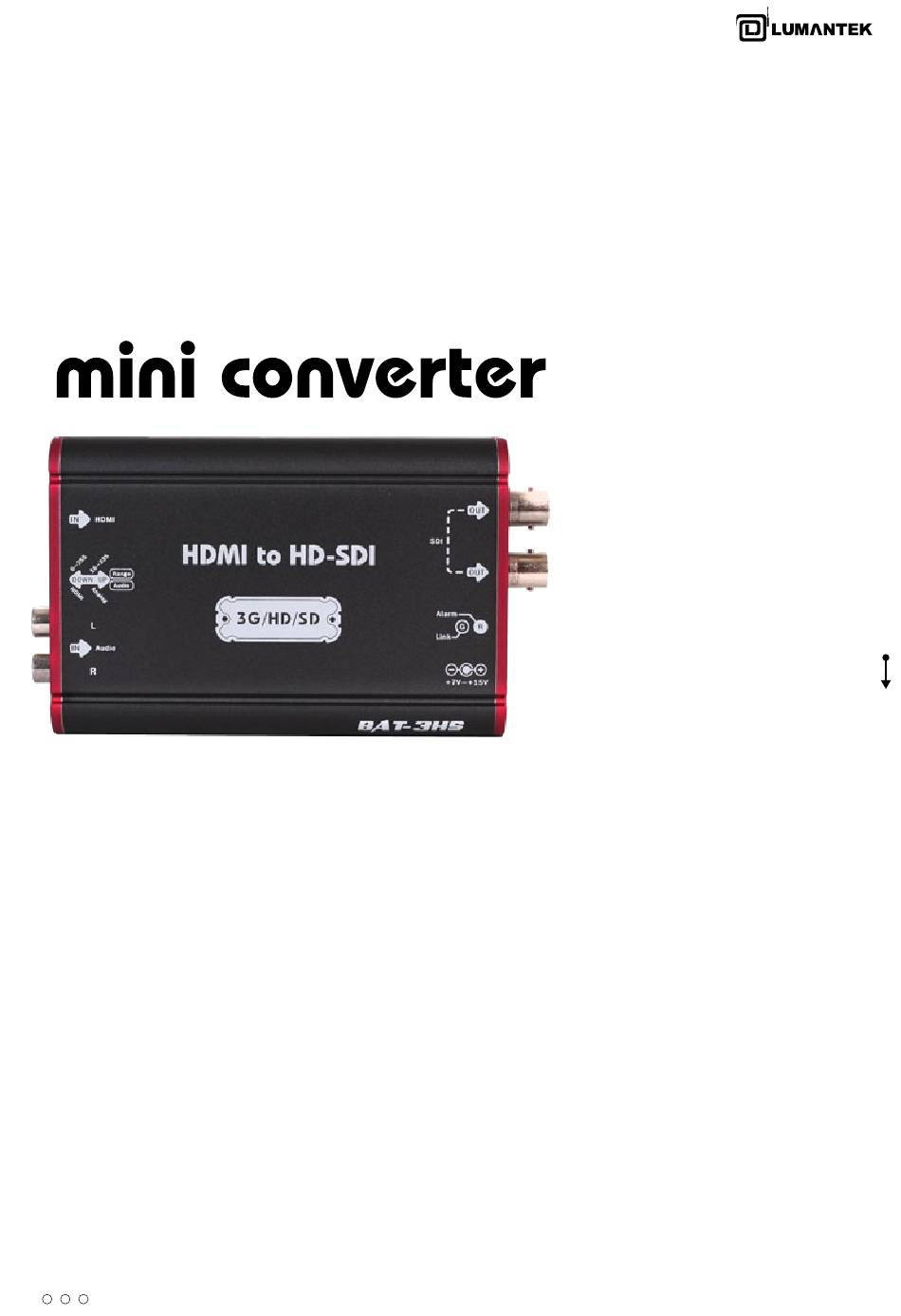

HDMI to 3G/HD/SD-SDI Mini-Converter BAT Series / BAT-3HS... - Page 7 / Operational Manual Mini-Converter / BAT-3HS / HDMI to 3G/HD/SD-SDI Manual ver 1.0 Updated 2012/02/06 1. Mini-Converter BAT-3HS / Introduction 1.1 / Lumantek Mini-Converter BAT Series Our innovative BAT Series line of mini converters offer superior signal quality with the lowest SDI jitter. The BAT Series is a versatile and feature-packed solution for your project and budget requirements.
- Page 8 Updated 2012/02/06 Superior Signal Quality with Low-Jitter LUMANTEK BAT Mini-Converters offers superior quality signal with lowest SDI jitter, so User can enjoy longest SDI Cable lengths with internal power supplies for extremely low noise broadcast analogue video and audio signal.
- Page 9 / Operational Manual Mini-Converter / BAT-3HS / HDMI to 3G/HD/SD-SDI Manual ver 1.0 Updated 2012/02/06 2. Mini-Converter BAT-3HS / Specification 2.1 / Lumantek Mini-Converter BAT Series : BAT-3HS HDMI Input SDI Output HDMI to HD-SDI Dip Switch LED Lamp Audio(L, R) Input...
- Page 10 / Operational Manual Mini-Converter / BAT-3HS / HDMI to 3G/HD/SD-SDI Manual ver 1.0 Updated 2012/02/06 2.2 / Lumantek Mini-Converter BAT Series : BAT-3HS System Spec Supported Video Formats 720(1440) x 480i @ 59.94/60, 720(1440) x 576i @ 50 1280 x 720p @ 50, 1280 x 720p @ 59.94/60 1920 x 1080i @ 50, 1920 x 1080i @ 59.94/60...
- Page 11 LUMANTEK #1208, Woolim Lion’s Valley II, 680 Gasan-Dong, Gumcheon Gu, Seoul Korea (153-830), Tel: +82 2 2027 2400, Fax: +82 2 2027 2409 Printed in KOREA © Lumantek Co., Ltd. CopyRight 2011 WWW.LUMANTEK.COM...
