Summary of Contents for Lumantek Avenco SD MPEG-2

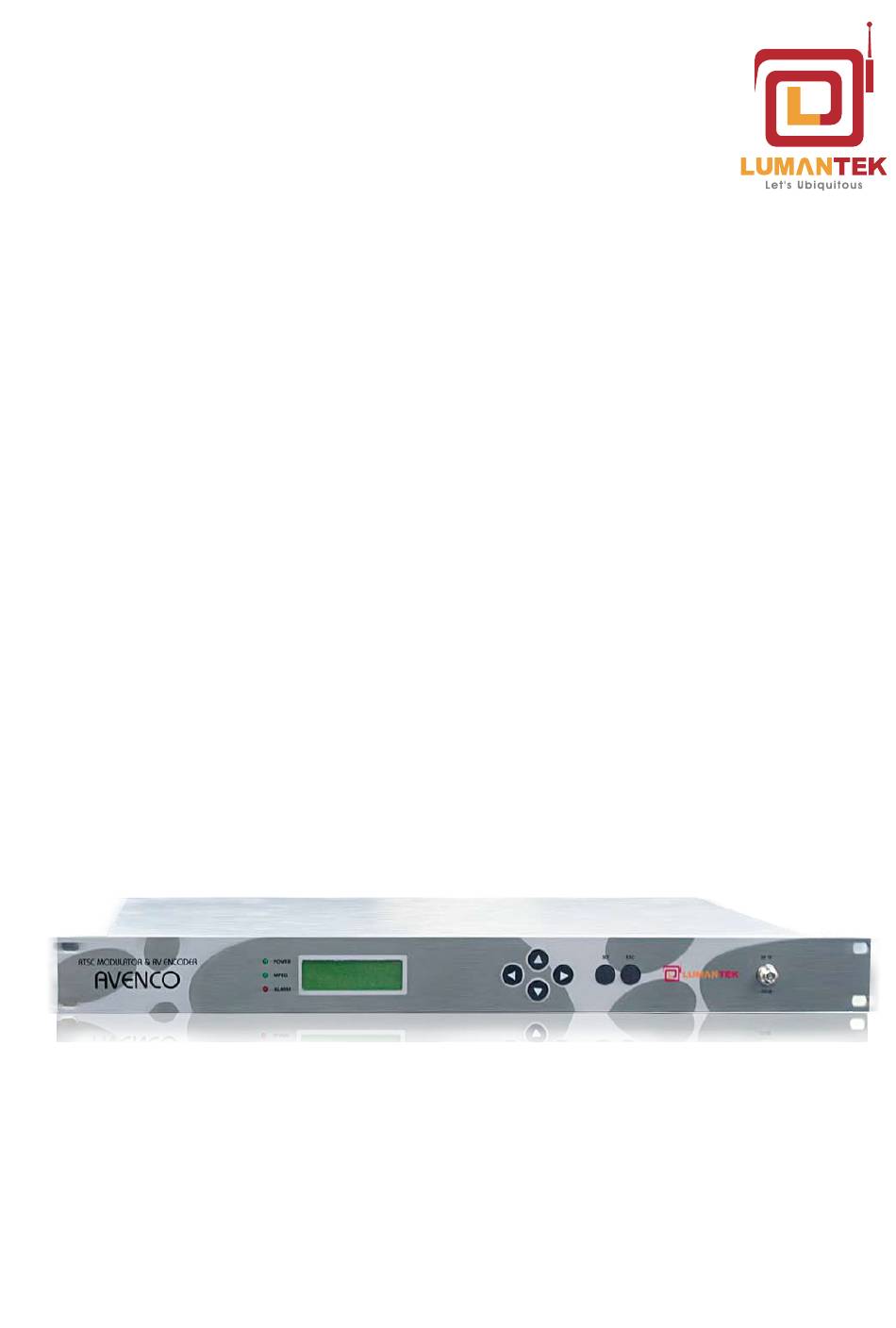

- Page 1 (MpeG-2 & rF Out) User OperatiOn ManUal >> second edition LUMANTEK Co., Ltd http://www.lumantek.com Head Office : # 1208, Woolim Lion’s Valley II, Gasan-Dong, Geuncheon-Gu, SEOUL, KOREA (150-803) TEL : +82-2-2027-2400 FAX: +82-2-2027-2409 e-Mail : inquire@lumantek.com...
- Page 2 Portions of this software are © 1996-2006 LUMANTEK Ltd. All intellectual property rights in such portions of the Software and documentation are owned by LUMANTEK and are protected by United States copyright laws, other applicable copyright laws and international treaty provisions.
-
Page 3: Table Of Contents
Contents 1. Introduction ..........4 1-1 Overview . - Page 4 3-7 SYSTEM ..........20 3-6-1 IP ADDRESS MENU .
-
Page 5: Introduction
User Manual 1. Introduction 1-1 Overview AVENCO SD, Audio Video exciter recives existing SD grade analog video audio signals of Set Top Box, Camera, VCR and DVD player and encodes the analog signals to digital signal. The encoded digital signals are ginally modulated with 8-VSB and output to UHF/VHF channel. -
Page 6: Prodcut Description
User Manual 2. Product Description 2-1. Appearance Description 2-1. Front POWER LED ACTIVITY LED ALRAM LED Control LCD UP BUTTON LEFT BUTTON DOWN BUTTON ... -
Page 7: Front Pane
User Manual 2-2. Function of each panel 2-2-1. Front Panel ① POWER LED: When connected the power / the light [On] ② ACTIVITY LED: When it works propertly, / the light [On] ③ ALRAM LED: When system have any problem / the light [On] ④... -
Page 8: Avenco _Sdtm Equipment
User Manual 2-3. AVENCO_SDTM This product is configured as follows. ① AVENCO_SDTM Console ② AC Power Cord: 220VAC For input Power Cord AVENCO_SDTM 본체 AVENCO - 8VSB & Encoder All in One for MATV >> 8... -
Page 9: Operator Safety Summary
User Manual Operator Safety Summary For your protection, please read these safety instructions completely before operating the equipment and keep this manual for future reference. The information in this summary is intended for operators. Carefully observe all warnings, precautions and instructions both on the apparatus and in the operating instructions. Equipment Markings The lighting flash symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltages”... - Page 10 User Manual 3. AVENCO_SD Operation 3-1. 기본 동작 버튼 소개 - LCD Display windows -Window menu, and feature set - On power, the basic information to be displayed. - Change the cursor keys and to set the value - Set value (numerber), move the cursor to the left. Go to the top of the cursor, then the set value(number) increases.
-
Page 11: Power On
User Manual • 3-2. Power ON When you turn on the power AVENCO_SD, LCD window will display the screen as shown below. AVENCO SD /- V1.0 b INPUT: CH1-COMPONENT SIGNAL: NO SIGNAL MOD: 004CH/069MHz 3-3. Main Menu Power is ON, the initialization process is finished, select the SET button, select the menu window is displayed. -
Page 12: Frequency Menu
User Manual 3-4-1. FREQUENCY Menu: To select Frequency setting Menu >SET BY: FREQUENCY CHANNEL: KOR CABL CHANNEL: KOR TERR >FREQUENCY - Select (◀▶) the top and bottom button and press Set button (SET) - Cancel button (ESC) are not applied when you click a value, go to the top menu. -
Page 13: Power Menu
User Manual 3-4-4. POWER Menu: Output Level Settings menu >POWER : 0.0dBm 7.0 dBm(MAX) > 0.0 dBm -15.0 dBm(MIN) - The top and bottom buttons (▲ ▼) to change the value - Press Set button (SET) to apply the value - Cancel button (ESC) are not applied when you click a value, go to the top menu - Frequency Range : -15 dBm ~ 7.0 dBm... -
Page 14: Vid Agc Menu
User Manual 3-5-2. VID AGC Menu: VID AGC Setting Menu > VID AGC: ON > ON - Automatically adjust the video input level - Select (◀▶) the top and bottom button and press Set button (SET) - Cancel button (ESC) are not applied when you click a value, go to the top menu. -
Page 15: Aud Mode Menu
User Manual 3-5-5. AUD MODE Menu: Audio codec settings menu >AUD MODE: AC3(DDC) >AC3 (DDC) MEPG1L2 - Audio codec settings menu - Select (◀▶) the top and bottom button and press Set button (SET). - Cancel button (ESC) are not applied when you click a value, go to the top menu. -
Page 16: Psip
User Manual 3-6. PSIP PSIP from the main menu use the UP button or DOWN button, then selecting the SET button, a menu is displayed as shown below >> PSIP << >VIDEO PID : 0x0310 AUDIO PID : 0x0320 PID : 0x0330 PID : 0x0300 MAJOR CH : 02 3-6-1. -
Page 17: Pcr Pid Menu
User Manual 3-6-3. PCR PID Menu: PCR PID Setting Menu >PCR PID : 0x0330 0x1FFF(MAX) >0x0310 0x0100(MIN) - PCR PID Setting Windows - After moving the cursor to the appropriate number by using Left and right buttons (◀ ▶), press the top and bottom buttons (▲... - Page 18 User Manual 3-7. SYSTEM System from the main menu use the UP button or DOWN button, then selecting the SET button, a menu is displayed as shown below >> SYSTEM << >IP ADDRESS SUBNET MASK DEFUALT GATEWAY LOAD DEFAULT - AVENCO_SD Network settings for the remote control - Default Setting 3-7-1.
- Page 19 User Manual 3-7-3. DEFAULT GW Menu: DEFAULT GW Setting Menu >DEFAULT GATEWAY 000.000.000.000 - AVENCO_SD Remote control subnet Settings screen - After moving the cursor to the appropriate number by using Left and right buttons (◀ ▶), press the top and bottom buttons (▲...
- Page 20 User Manual APPENDIX AVENCO - 8VSB & Encoder All in One for MATV >> 20...
- Page 21 User Manual QUICK Operation Guide 1. ENCODING Setting → VIDEO BITRATE: DEFAULT Setting, No need for a separate set up. → AUDIO BITRATE: Chages are available. 2. KEY PAD Operating methods → Move the cursor on the display LED : Use left and right keys to move →...
- Page 22 User OperatiOn ManUal # 1208, Woolim Lion’s Valley II, Gasan-Dong Geuncheon-Gu Seoul, KOREA (150-803) Tel. +82-2-2027-2400 / Fax. +82-2-2027-2409 e-Mail. inquire@lumantek.com...
