NTI RACKMUX-4K17-N-16HD4K RACKMOUNT DRAWER WITH 4K VIDEO USB KVM SWITCH

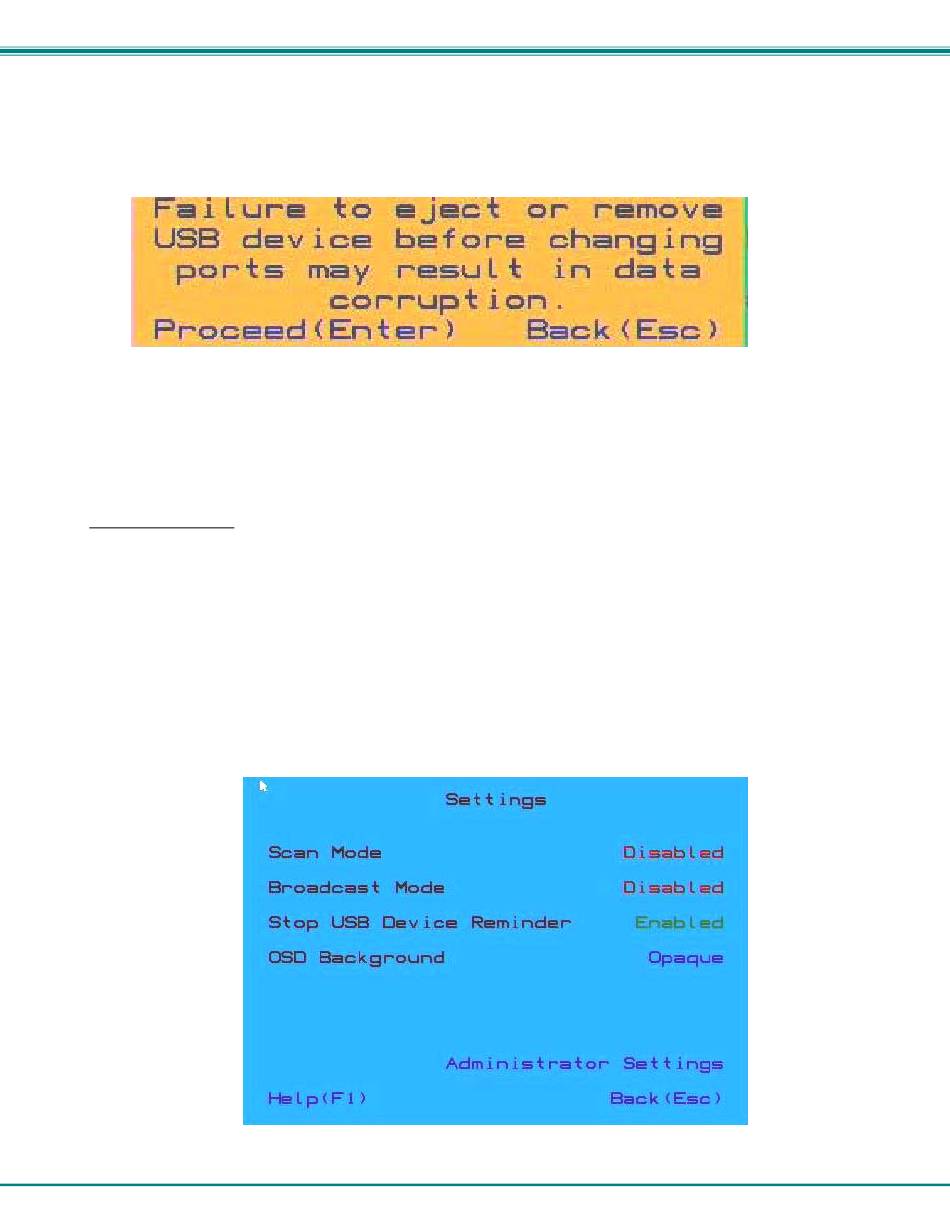

To respond to the Stop USB Device warning, either click "Enter" or "Esc" with the mouse, or use keyboard keys.

From the Setting Menu the user can also toggle the OSD menu to either be Opaque (have solid color) when on the display, or to

be translucent (see-through).

Click on the setting to toggle it.

Broadcast Mode

Broadcast Mode enables the user to select specific ports (see Figure 15) to be active in Broadcast Mode. Only the selected ports

will receive keyboard messages in Broadcast Mode.

To activate or deactivate Broadcast Mode from the Command Mode menu, from the main menu click on Settings. From the

Settings menu, click to display either Disabled (deactivate) or Enabled (activated).

Broadcast Mode enables the user to type characters to more computers simultaneously. From the Administrator Settings-

Broadcast List menu (see page 19) the user can edit the list of ports that receive data in Broadcast Mode. A port doesn't receive

broadcast data the port is not in the Broadcast Mode list

Note: The user must type somewhat slowly when in Broadcast Mode (less than 20 wpm).

Note: While in Broadcast Mode the mouse will not work.
