Procedure for silage door assembly (A Rollmax option)
Before installing your silage door, you will need to remove the framework tool from the
your spreader. This operation is to be carried out by your ROLLAND dealer, who is the only
trained and skilled operative who has the requisite tools.
Procedure for disassembly of the tool framework
Disconnect the secondary transmission.
With the aid of slings, fasten the framework to an overhead bridge crane (minimum
capacity minimum 2,5 Tonnes for the slings and the bridge). Attachment points are
outlined in the following diagramme. The weight of all sub-assembly sections is stated
on stickers supplied.
Unscrew and remove all framework support fasteners on the box.
Remove the framework using the overhead bridge crane and rest it on its supports. Fix
it to its support using the nuts and strap(s) supplied, after having checked the clamps in
order to lift off the slings.
In the absence of framework support, place the framework flat on the floor on the
hatch side.
Silage panels
Having lubricated them with grease, assemble the piles. Greasing makes assembly and
disassembly easier since settings are adjusted in order to ensure assembly
watertightness. Attach to the spreader box with the screws supplied.
Then install the basket (mass of around 80 Kg) using a hoist or loader. Bolt together
using locking pins supplied.
Notice originale : Français

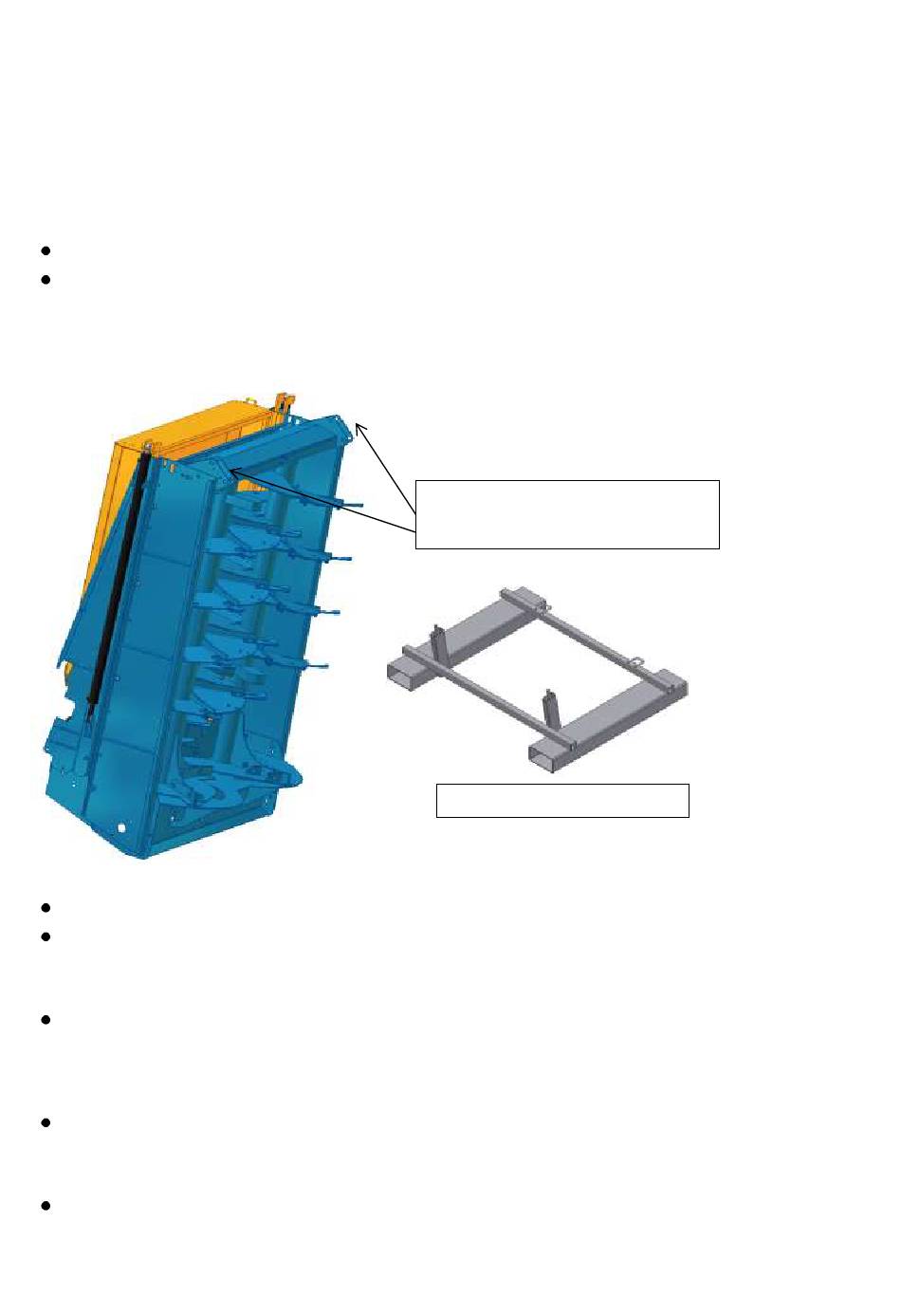

Bolting points for handling the
spreader frame.
Framework support optional
