5. Steering axle (Rollmax option) :

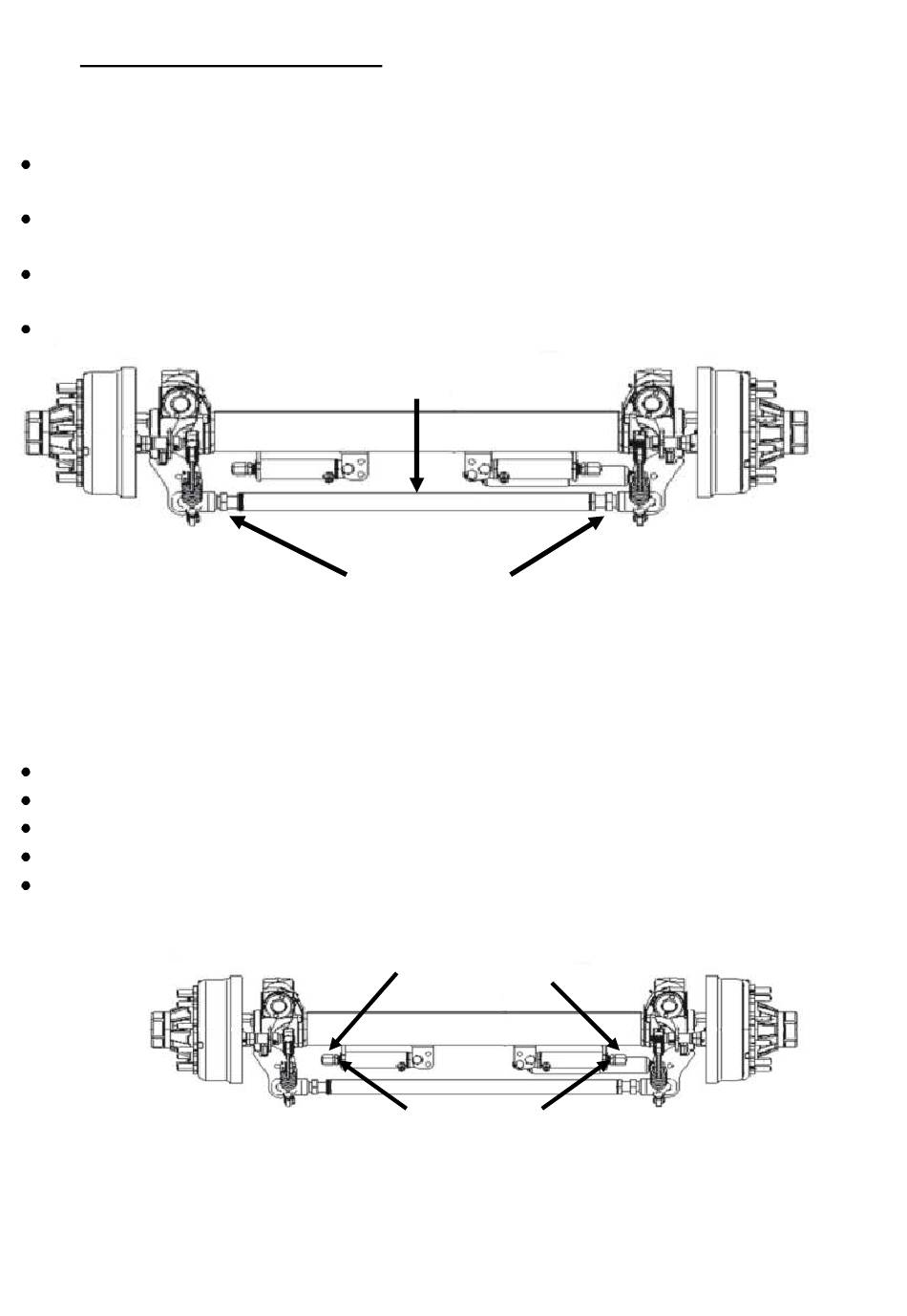

Checking and adjusting the parallelism
Stop the vehicle, the steering axle must be aligned, the locking cylinders back on a flat
horizontal surface.
Measure the distance between the front and rear wheels and the steering axle. We need to
find the same value.
If this is not the case unlock the 2 lock nuts of the coupling bar and rotate it in order to find
the same distance to the front and to the rear.
Strongly lock the lock nuts.
Adjustment of the locking cylinders
Regularly check the lock nut against the blind and nut. After the parallelism, adjust locking
cylinder as follows:
Loosen the lock nuts
Lock the blind nuts.
Apply pressure in the cylinders and maintain it.
Unscrew the lock nuts to put them into abutments
Screw vigorously against the screw nuts to lock the adjustment.
Notice originale : Français
Coupling Bar
Counter- nuts
Cap nut
Counter-nuts
