ROLLAND ROLLFORCE Instruction Manual page 18

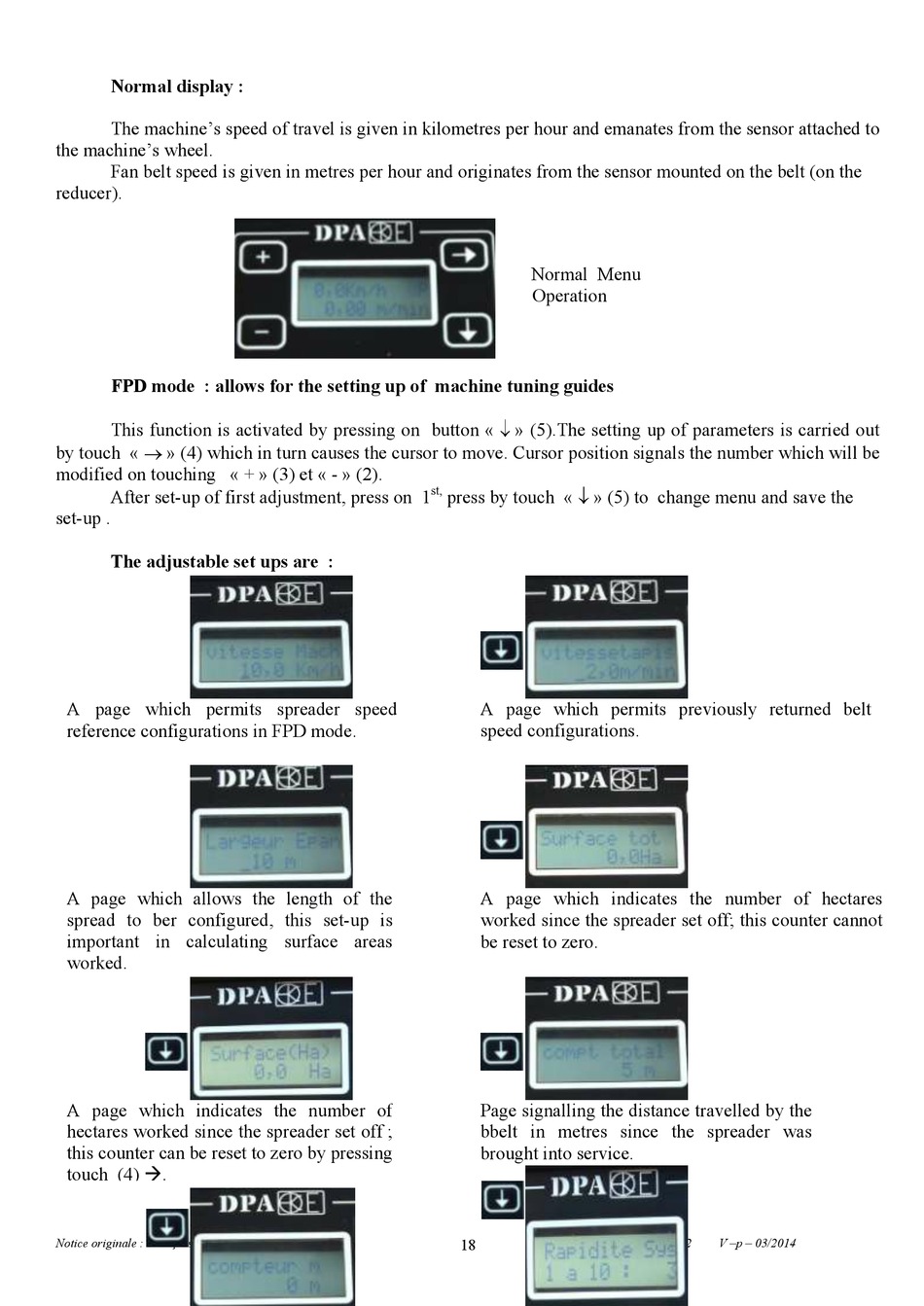

Normal display :
The machine's speed of travel is given in kilometres per hour and emanates from the sensor attached to
the machine's wheel.
Fan belt speed is given in metres per hour and originates from the sensor mounted on the belt (on the
reducer).
FPD mode : allows for the setting up of machine tuning guides
This function is activated by pressing on button «
by touch « » (4) which in turn causes the cursor to move. Cursor position signals the number which will be
modified on touching « + » (3) et « - » (2).
After set-up of first adjustment, press on 1
set-up .
The adjustable set ups are :
A page which permits spreader speed
reference configurations in FPD mode.
A page which allows the length of the
spread to ber configured, this set-up is
important in calculating surface areas
worked.
A page which indicates the number of
hectares worked since the spreader set off ;
this counter can be reset to zero by pressing
touch (4) .
Notice originale : Français
Normal Menu
Operation
» (5).The setting up of parameters is carried out
st,
press by touch « » (5) to change menu and save the
A page which permits previously returned belt
speed configurations.
A page which indicates the number of hectares
worked since the spreader set off; this counter cannot
be reset to zero.
Page signalling the distance travelled by the
bbelt in metres since the spreader was
brought into service.
18 NT0002 V –p – 03/2014
