6-Adjustments - ROLLAND ROLLFORCE Instruction Manual

Preamble: Any adjustment must be made with machine unplugged (see §1-1 on page 3)

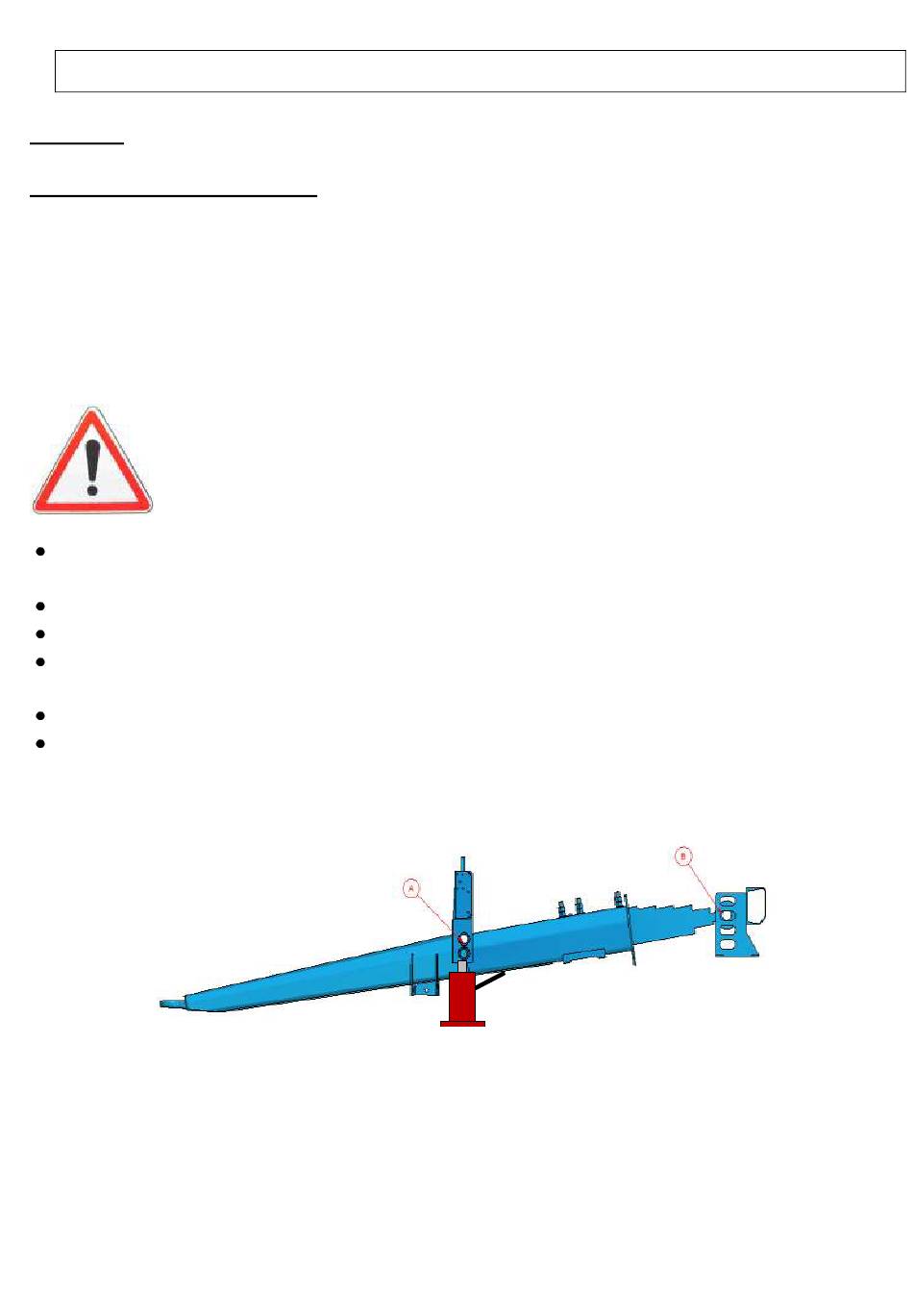

Adjustments of mechanic jib:
The jib adjustment enables to have a right box in accordance with the coupling height and to
have a greater flexibility as well as a maximum load transfer to the rear axle of the tractor.
Note: For the first operation, the concessionaire will carry on the jib adjustment.
. Handle it with the vehicle empty.
. Operate on horizontal and stable ground.
. Make sure the parking brakes are tightened. (tractor and trailer).
Install the safety pin above the tractor coupling ring
.
Put the machine in a levelling space with a jack (lifting capacity: 5T) placed in front of
chassis.
Lay down jib adjustment axle. (signal B).
Position the jib in a way that spreader is horizontal when he is coupled to tractor.
The jib position will be adjusted into the nearest upper hole. Thus, the spreader will be
slightly pitched up.
Put again the axle in place as well as its pin.
Remove the jack.
The upper hole is used for big diameter wheels; the distance between each hole being of 7cm.
Notice originale : Français
6- Adjustements
PROCEDURE FOR ROLLMAX
Jack 5T
32
NT0002 V –p – 03/2014
