ROLLAND ROLLFORCE Instruction Manual page 21

Connecting the pressure lines :
Connections can be made when the motor is turned off, when hydraulic
pressure has been released, and with the contact key taken out.

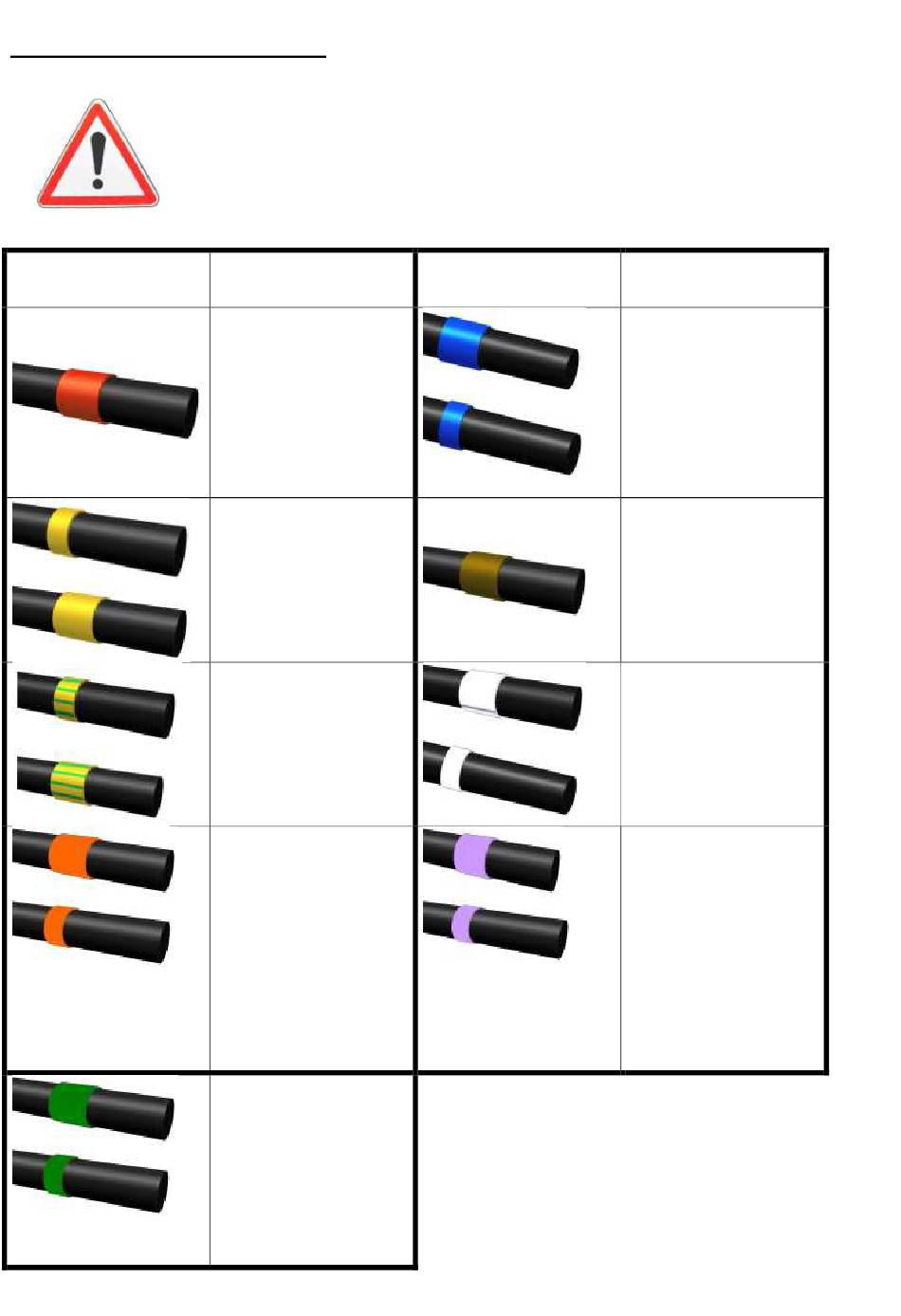

Flexible
marking/tagging
Notice originale : Français
Function
Braking
Funnel closing
(DE)
Funnel opening
(DE)
Axle locking
(SE)
Axle locking
(DE)
Hydraulic boom
cylinder output
(DE)
Hydraulic boom
cylinder return(DE)
Passive suspension
pressure (SE)
Passive drain
suspension
(Free return)
Flexible
marking/tagging
*SE : Simple Effect distributor
(pressure/ floating position)
*DE : Double Effect distributor
21
Function
Belt pressure
(DE)
Belt return
(DE)
Load transfer
(SE)
Hatch opening
(DE)
Hatch closing
(DE)
Hydractive
suspension pressure
(DE or SE)
Hydractive
suspension return
(DE or free return )
NT0002 V –p – 03/2014
