ROLLAND ROLLFORCE Instruction Manual page 17

FPD (Foward Proportional Decrease) :
Characteristics :
Aluminium box
-
(Dimensions : l = 160mm, L= 110mm, P= 40mm)
- IP 67.
- Protected against reverse polarity. -
Beam base IP68.
- Screen 2*12 characters with blue backlight.
- Printing option.
- Command 6 solenoid valves (3A max)
Please note :

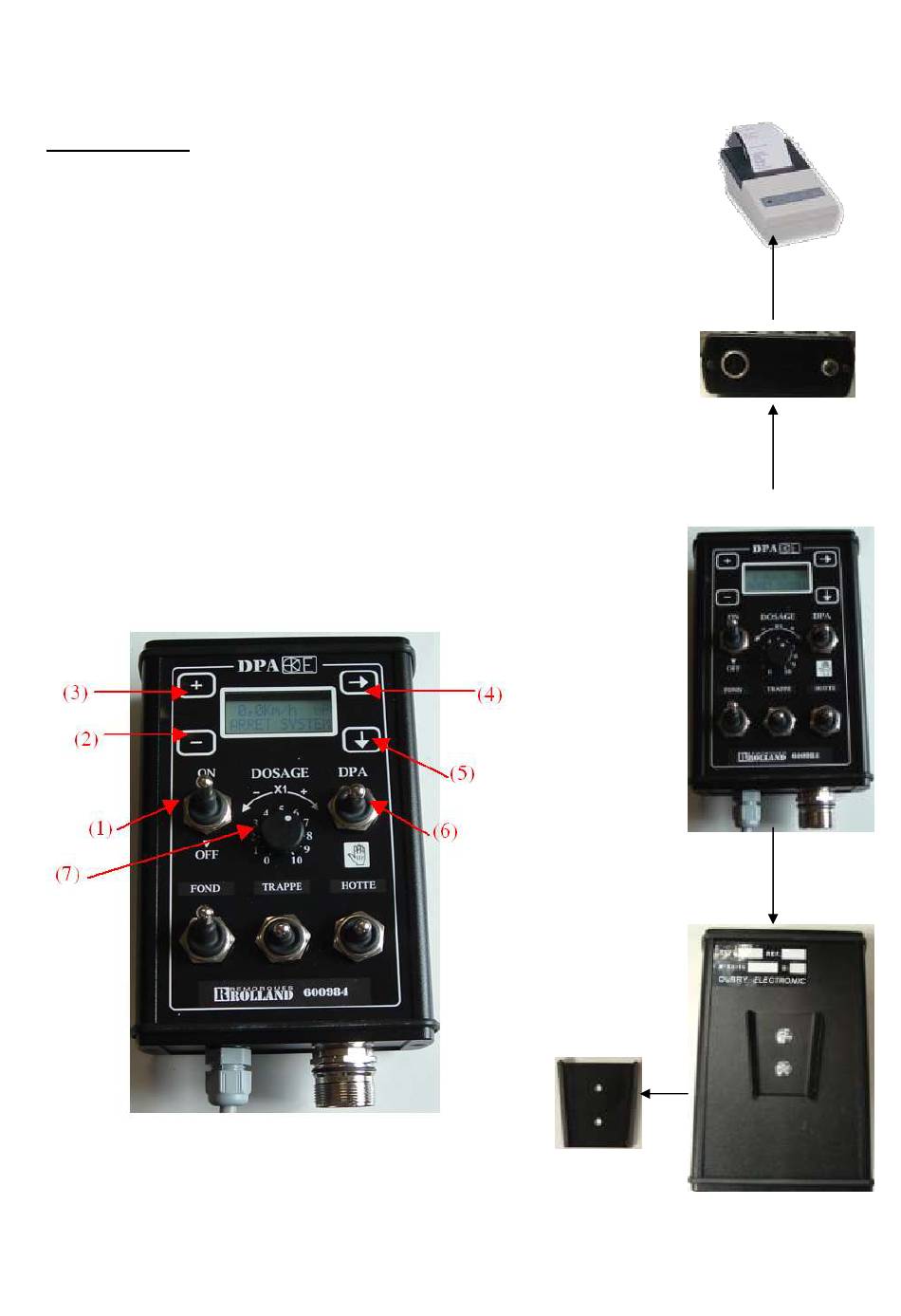

As soon as the box is correctly wired, you may go ahead and use the product as
follows :
-Press the ON/OFF switch (1) to the ON position.
Notice originale : Français
Prininting plate
(Optional)
17
Printer
(Optional)
NT0002 V –p – 03/2014
