Delta Dual V4/V6 (DMS-217/079)
Installation Instructions
For Ground Water Applications
T.
01992 523523
E.
info@deltamembranes.com
W.
www.deltamembranes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dual V4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Delta Dual V4

  • Page 1 Delta Dual V4/V6 (DMS-217/079) Installation Instructions For Ground Water Applications 01992 523523 info@deltamembranes.com www.deltamembranes.com...
  • Page 2 All rights reserved. Contents provided herein must neither be distributed, copied, reproduced, edited or processed for any other purpose, nor otherwise transmitted, published or made available to a third party without express written consent from Delta Membranes. Subject to technical modification without prior notice.
  • Page 3: Table Of Contents

    Delta Dual V4/V6 Contents Dual V4/V6 Overview Parts Included Optional Extras Discharge Pipework & Fittings Chamber Overview Spare Parts Technical Information Pump Chamber Depth Limits Installation Guidelines Pump Station Location 10.0 RC Box Dimensions 11.0 Installation of Chamber Section A - Construction of reinforced concrete box...
  • Page 4: Dual V4/V6 Overview

    129 detail and/or clear opening to the top of the chamber - please visit our website for water collection details. Typically, the Dual V4/V6 would be used to collect ground water from a basement up to 150m² and/or surface water from a light well up to 12m²...
  • Page 5: Discharge Pipework & Fittings

    Discharge Pipework & Fittings A selection of discharge pipework and fittings are available for the Dual V4/V6 pump station. Should you require to place an order for any of these items, please complete the form below, scan and email to purchasing@deltamembranes.com to allow us to process your order.
  • Page 6: Chamber Overview

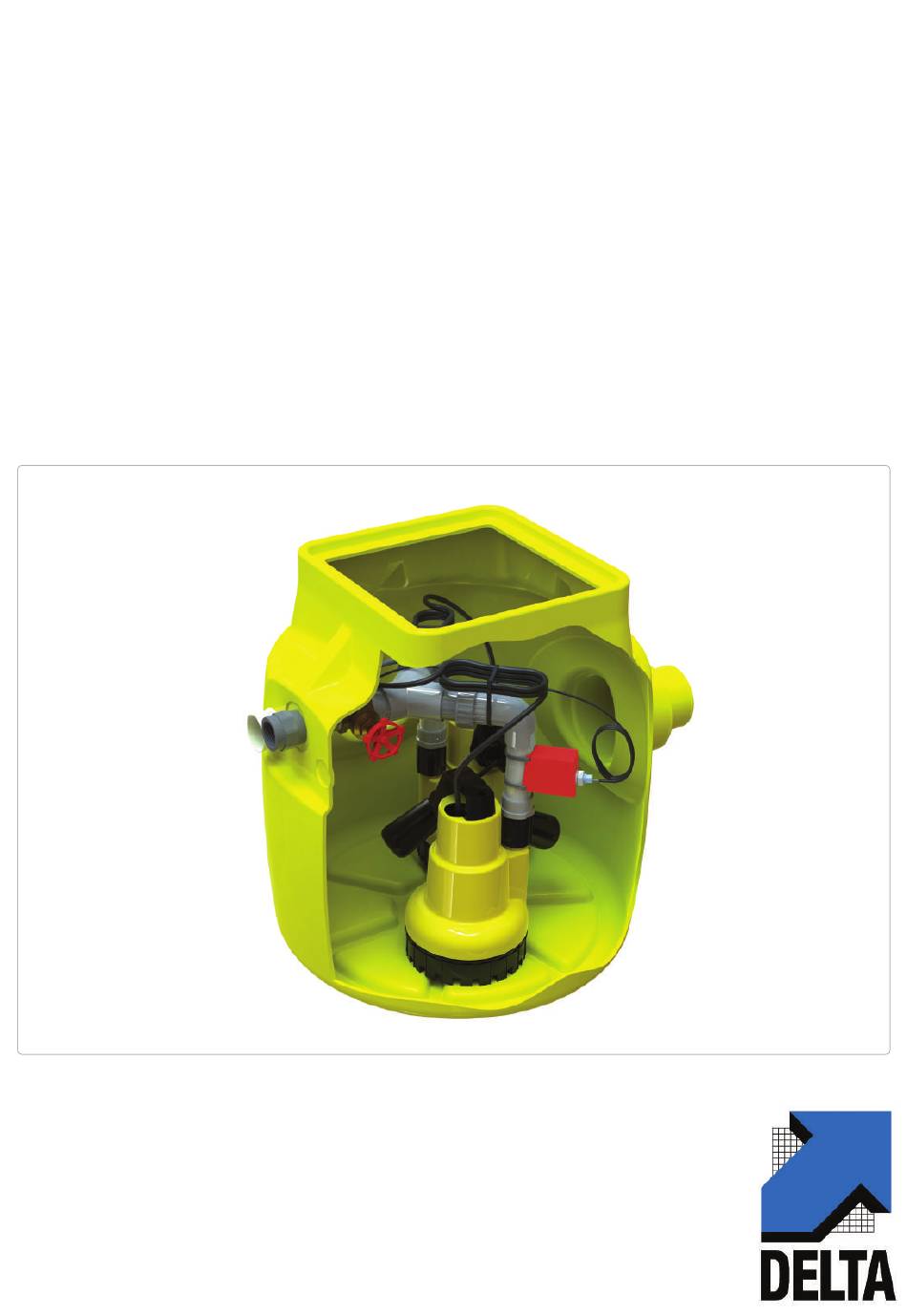

    Delta Dual V4/V6 Chamber Overview Part Description Distribution Board Inlet Pipe High Level Alarm Box Concrete Base Screed Inspection Cover Insulation Pump Chamber MS20 Cable Duct Basement Slab Fused Spur TO SEWER Spare Parts Part Description Part No. V4/V6 Pump c/w 1.1 & 1.2 DMS-216/084 Float &...
  • Page 7: Technical Information

    Delta Dual V4/V6 Technical Information Pump Specification Pump Type 3.25 3.75 3.10 3.60 3.00 3.50 Typical Duty (I/s) Head (m) 2.90 3.40 2.75 3.30 2.40 3.00 Power (kW) 0.75 1.05 (kW) 0.35 0.50 Current (a) 4.00 4.90 Power Phase Single...
  • Page 8: Pump Chamber Depth Limits

    Delta Dual V4/V6 Pump Chamber Depth Limits If the inlet does not allow the pump chamber to be within depth limits, please contact PPS on 01279 757400 to discuss chamber options. < 500mm The pump chamber must be installed no more than 500mm below floor finishes.
  • Page 9: Installation Guidelines

    Delta Dual V4/V6 Installation Guidelines The following instructions are for guidance only and it is the contractor's responsibility to ensure that the installation is in accordance with the prevailing ground conditions and good building practice, to eliminate any potential damage to the pump station either during or after installation.
  • Page 10: Installation Of Chamber

    Delta Dual V4/V6 11.0 Installation of Chamber - Section A Construction of reinforced concrete box Excavate hole for chamber. Refer to section 10.0 for Install re-bar as per structural engineer's drawings. RC box internal dimensions. Lay inlet and discharge pipework. Allow pipework to Pour concrete to form RC box as per structural protrude into RC box by a minimum of 100mm.
  • Page 11: Section B1 - Connecting 110Mm Pipework

    Delta Dual V4/V6 11.0 Installation of Chamber - Section B1 Connecting 110mm pipework Saw off socket end/s, where inlet pipe/s are to Position chamber in RC box. be connected. Fit push fit coupler. Connect inlet pipework to the required chamber spigot.
  • Page 12: Section B2 - Connecting Perimeter Channel To Chamber

    Delta Dual V4/V6 11.0 Installation of Chamber - Section B2 Connecting perimeter channel to chamber To be followed when installing perimeter channel directly into upper side of chamber. Mark perimeter channel position on side of chamber. Drill holes in the corners inside the area marked in red.
  • Page 13: Section B3 - Connecting Perimeter Channel Via A 1.5"/40Mm Inlet Pipe

    Delta Dual V4/V6 11.0 Installation of Chamber - Section B3 Connecting perimeter channel via a 1.5"/40mm inlet pipe Mark position of the 40mm pipe on the side of Cut 40mm pipe to length allowing an overhang of the chamber and cut out the marked line using a 35mm inside the chamber.
  • Page 14: Section C - Connecting Discharge And Cable Duct

    Delta Dual V4/V6 11.0 Installation of Chamber - Section C Connecting discharge and cable duct Wrap the thread on a DMS-0153 high pressure Screw the high pressure male iron into the female iron. male iron with PTFE tape. Apply DMS-0158 high pressure glue around the first...
  • Page 15 Delta Dual V4/V6 11.0 Installation of Chamber - Section C cont. Connecting discharge and cable duct Ensure a draw cord is pulled through the cable duct as the cable duct is built. For technical support, please call 01279 757400...
  • Page 16: Section D1 - Backfill Around Chamber With Concrete (Rc Box)

    Delta Dual V4/V6 11.0 Installation of Chamber - Section D1 Backfill around chamber with concrete To be followed when installing chamber in an RC box. Check all pipes are connected to the chamber Completely fill chamber with water. correctly. Fill void between RC box and chamber with concrete (min.
  • Page 17: Section D2 - Backfill Around Chamber With Concrete (Ground)

    Delta Dual V4/V6 11.0 Installation of Chamber - Section D2 Backfill around chamber with concrete To be followed when installing chamber in the ground. Completely fill chamber with water. Fill void between soil and chamber with concrete (min. C35 grade) or as per engineer's drawings.
  • Page 18: Section D3 - Backfill Around Chamber With Concrete (Reinforced Cage)

    Delta Dual V4/V6 11.0 Installation of Chamber - Section D3 Backfill around chamber with concrete To be followed when installing chamber in the ground with a reinforced cage. Completely fill chamber with water. Fill void between soil and chamber with concrete (min.
  • Page 19: Section E - Installing Pumps And High Level Alarm In Chamber

    Delta Dual V4/V6 11.0 Installation of Chamber - Section E Installing pumps and high level alarm in chamber Pump out water from chamber. Manually remove any debris from chamber and residual water using a wet vac. Remove discharge arms from 'Y' piece manifold and Wrap PTFE tape around thread located on male irons screw 'Y' piece on to gatevalve.
  • Page 20 Delta Dual V4/V6 11.0 Installation of Chamber - Section E cont. Installing pumps and high level alarm in chamber Fill chamber half full with water. Lower pumps in to chamber. Ensure 'O' rings are correctly seated in unions and screw discharge arms to 'Y' piece manifold.
  • Page 21 Delta Dual V4/V6 11.0 Installation of Chamber - Section E cont. Installing pumps and high level alarm in chamber Isolate main supply and connect each pump and Turn mains supply on and lift each pumps float arm to high level alarm cable to a separate non-switched test water is discharging correctly.
  • Page 22: Wiring Diagram

    Delta Dual V4/V6 12.0 Wiring Diagram For technical support, please call 01279 757400...
  • Page 23: Maintenance

    15.0 Guarantee The Dual V4/V6 pump chamber comes with a 12 month component guarantee, which covers any manufacturing faults and defects as a result of poor workmanship. Pump chambers that have not been commissioned have a 12 month component guarantee from date of delivery.
  • Page 24: Troubleshooting

    Delta Dual V4/V6 16.0 Troubleshooting Please ensure the installation process has been completed thoroughly and all steps have been followed correctly. Use the table below to assist with troubleshooting and if problems still occur, please contact PPS for further technical support on 01279 757400.
  • Page 25: Self Commissioning

    Property Address: Company Name & Address: Property Contact: Company Contact: Date complete: Description of equipment (delete as appropriate): Delta Dual V4 / Delta Dual V6 Location of Chamber: Location of Alarm: Location of Electrics: Pump 1 Serial Number: Pump 2 Serial Number:...
  • Page 26 Delta Dual V4/V6 17.0 Self Commissioning Further comments: Please scan this commissioning form and email to service@ppsgroupuk.com...
  • Page 27: Notes

    Delta Dual V4/V6 18.0 Notes For technical support, please call 01279 757400...
  • Page 28 After Sales Service All Delta Membrane pump systems are fitted & can be maintained by our partners, Packaged Pump Systems. With our long-term relationship we ensure that the system selected is fit for your requirements, is delivered on time, professionally installed & offers hassle free on-going operation & maintenance.
