pottery barn kids

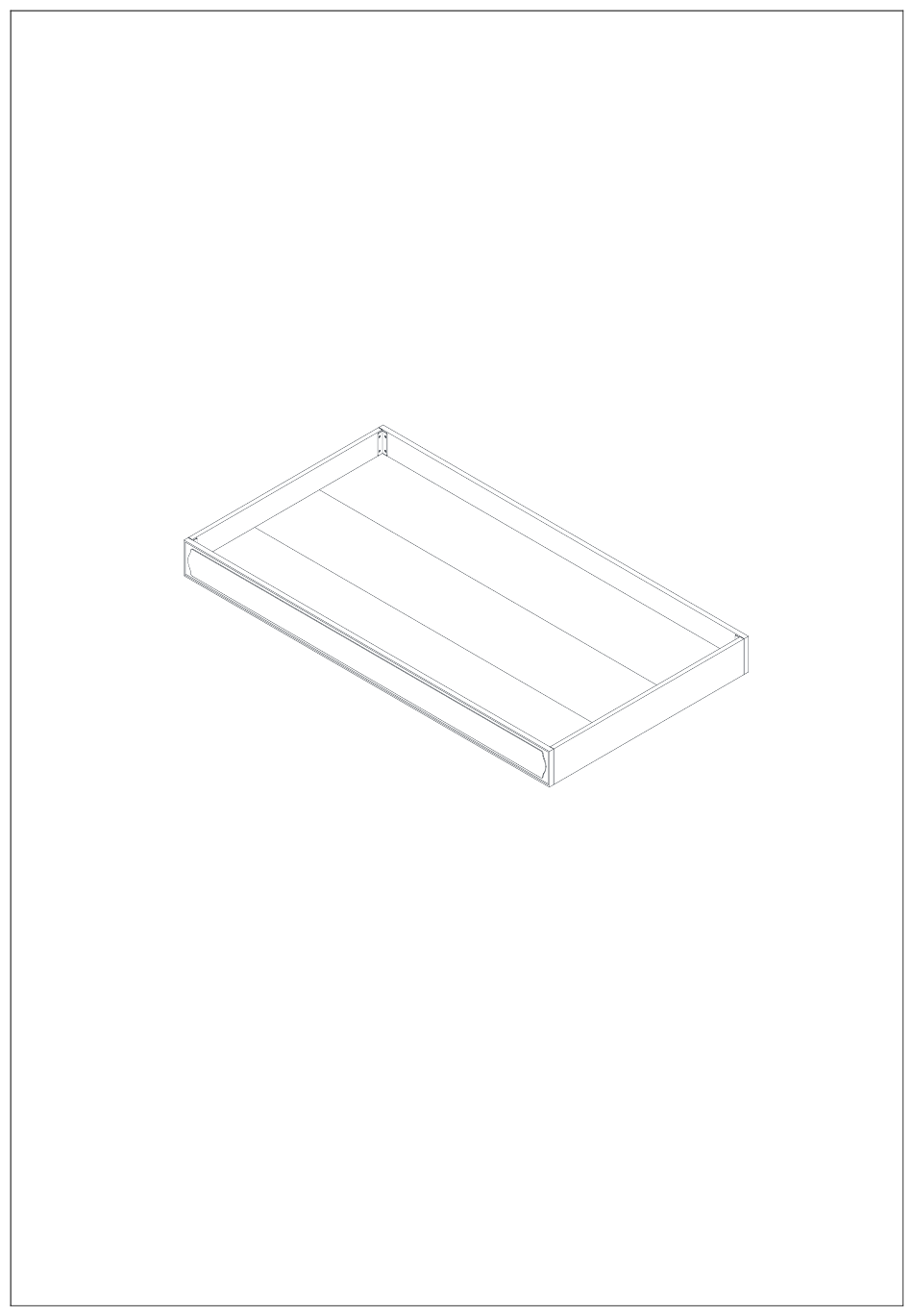

GEORGIA CANE TRUNDLE
Gigogne Georgia Cane
www.potterybarnkids.com
Date: 2016-Agust.-02
Page 1 of 8
Rev:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GEORGIA CANE TRUNDLE and is the answer not in the manual?

Questions and answers

Summary of Contents for pottery barn kids GEORGIA CANE TRUNDLE

  • Page 1 GEORGIA CANE TRUNDLE Gigogne Georgia Cane www.potterybarnkids.com Date: 2016-Agust.-02 Page 1 of 8 Rev:...
  • Page 2 WARNING When using trundle for sleeping, trundle bed must be pilled away entirely from the bed structure to prevent any entrapment issues. Make sure area surrounding the trundle bed is clear of any hazard. MISE EN GRADE Lorsque le lit gigogne est utilisé pour dormir, le lit gigogne doit être etiré entièrement de la structure du lit pour prévenir tous problèmes de coincement.
  • Page 3 PRE-ASSEMBLY: (A) Front Panel (B) Back Panel (C) Side Panel 2Pcs (D) Base Panel Front/Back 2Pcs (E) Base Panel Center (F) Bottom Rail 2Pcs Hardware Included: (G) Screws – (ø6 x ½”) Allen Bolts – (M6 x 20 mm) Castor (L) Screws –...
  • Page 4 2. Assembly the Bottom Rails (F) to the base panels(D&E), by aligning the preinstalled wooden dowels to the predrilled holes. Secure with 12 pcs Screws (L) and tighten with Philips Head Screwdriver as shown below. 3. Assembly the Castors (H) to base panels as shown below. Secure with 4 pcs Screws (G) as shown below. Date: 2016-Agust.-02 Page 4 of 8 Rev:...
  • Page 5 4. Assembly the Metal Plate (M) to side panels (C). Secure with 2 pcs Allen Bolt (I) Tighten with Allen Key (N) as shown below. 5. Assembly the Side Panels (C) to the Back Panel (B) using 4 pcs Allen Bolts (I) Tighten with Allen Key (N). as shown below.
  • Page 6 6. Assembly the base panel by inserting the base panel into the grooves and aligning the dowels to the pre drill holes as shown below. 7. Assembly the Front Panel (A) to the Side Panel (C) & Base Panel (D) using 4 pcs Allen Bolts (I) by aligning the dowels to the pre drill holes.
  • Page 7 8. Attach 34 pcs Screws (L) into the pre-drilled holes on the cleat of the bottom rails. Tighten with Phillips head screwdriver as shown below Assembly is complete and turn the trundle upright. Date: 2016-Agust.-02 Page 7 of 8 Rev:...
  • Page 8 *Note: Trundle can be used on either the left or right side of the bed as shown below. Please refer to the Georgia Cane Bed Assembly Instructions for details. ENGLISH Care Instructions:  Dust often using a clean, soft, dry and lint-free cloth. ...
