Summary of Contents for pottery barn kids Grace Bookcase Tower

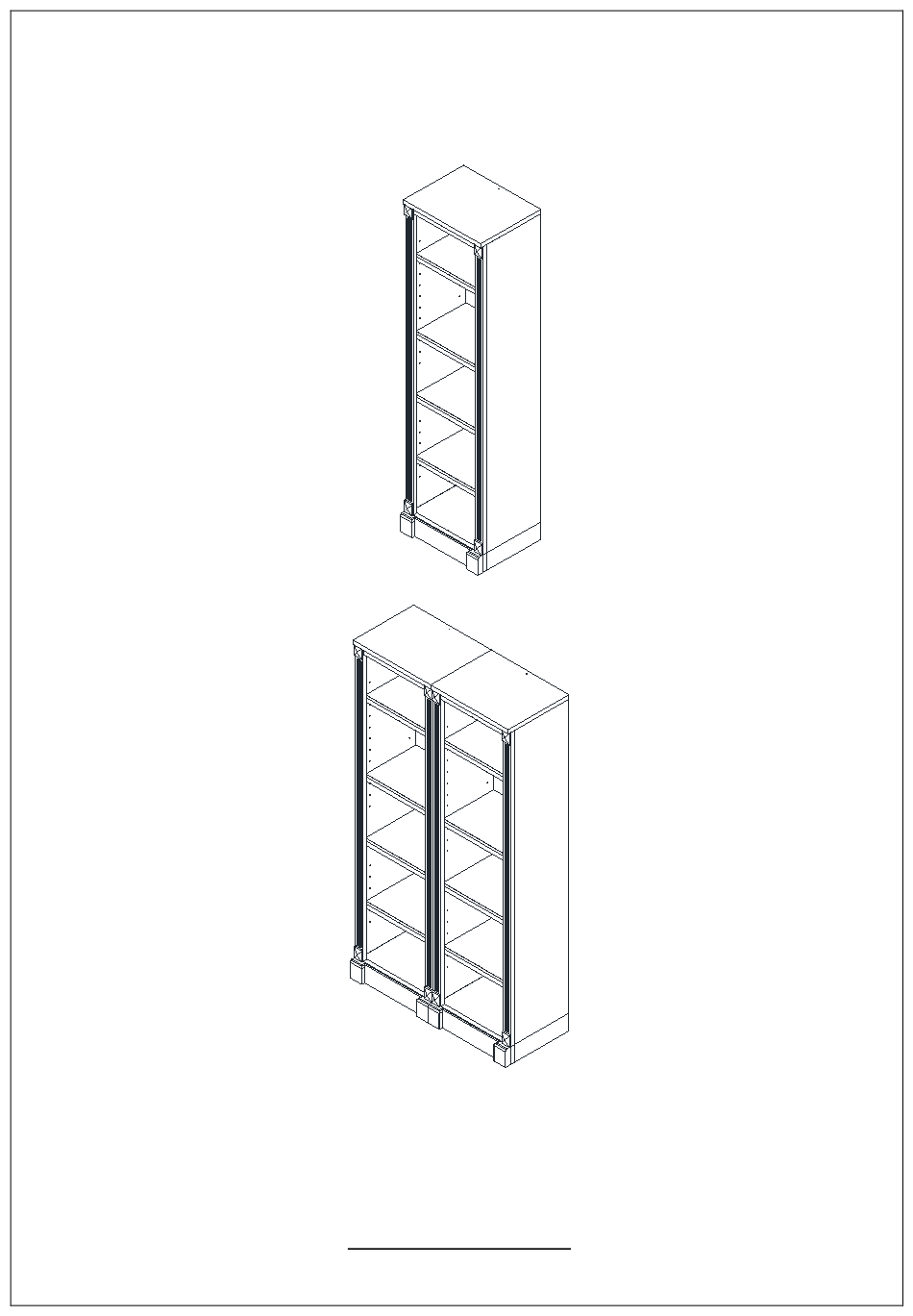

- Page 1 GRACE BOOKCASE TOWER www.potterybarnkids.com Date: 2014-Sept-16 Page 1 of 9 Rev: 2015-Jan-21...
- Page 2 Important Safety Instructions: • Please read all instructions carefully before assembling this Bookcase. • For your safety, assembly by two or more adults is strongly recommended. • Keep these instructions for future use. • Use only vendor-supplied hardware to assemble this item. Using unauthorized hardware could jeopardize the structural integrity of the item.
- Page 3 Assembly Instruction Steps: 1. Attach the Fixed Shelf (D) to the Left Side Panel (B), by aligning the pre-drilled holes to the wooden dowels, as shown below. 2. Insert 2 sets of: Bolt (H), Spring Washer (K), and Flat Washer (L) and tighten with Allen Key (N). Do not over tighten.
- Page 4 6. Attach Top Panel (A) to the pre-assembled piece, by aligning the pre-drilled holes to the wooden dowels, as shown below. 7. Insert 4 sets of: Bolt (H), Spring Washer (K), and Flat Washer (L) and tighten with Allen Key (N). Do not over tighten.
- Page 5 12. With the help of another person, carefully stand the bookcase upright. 13. Insert 12 Shelf Support Pegs (O) into the Side Panels, as shown below. 14. Place the 3 Adjustable Shelves (G) onto the Shelf Support Pegs (O). Make sure that the pre-drilled holes on the Shelves are facing downward and each shelf is stable.
- Page 6 Note: ITW Toggle Bolt (T) only can be used on a sheetrock wall. Please contact your local hardware store for mounting hardware and instructions when mounting bookcase into any surface other than sheetrock. 21. Turn the Metal Bracket (S) back into place over the ITW Toggle Bolt (T). 22.
- Page 7 28. Attach the Large Drill Bit (V) to the Power Drill (Not included). 29. In a 90-degree angle, drill from the outside of the Side Panel and through the pre-drilled holes created from STEP #27, as shown below. 90° LEFT 30.
- Page 8 35. Please follow the step # 17- #23 to secure these Bookcases to the wall, as shown below. Date: 2014-Sept-16 Page 8 of 9 Rev: 2015-Jan-21...
- Page 9 36. This Bookcase can be combined with another bookcase, Bridge/XW Media Base, or Hutch/Media Base, as seen below. Option 1 Option 2 Option 3 Care Instructions: • Dust often using a clean, soft, dry, and lint-free cloth. • Blot spills immediately and wipe with a clean, damp cloth. •...
