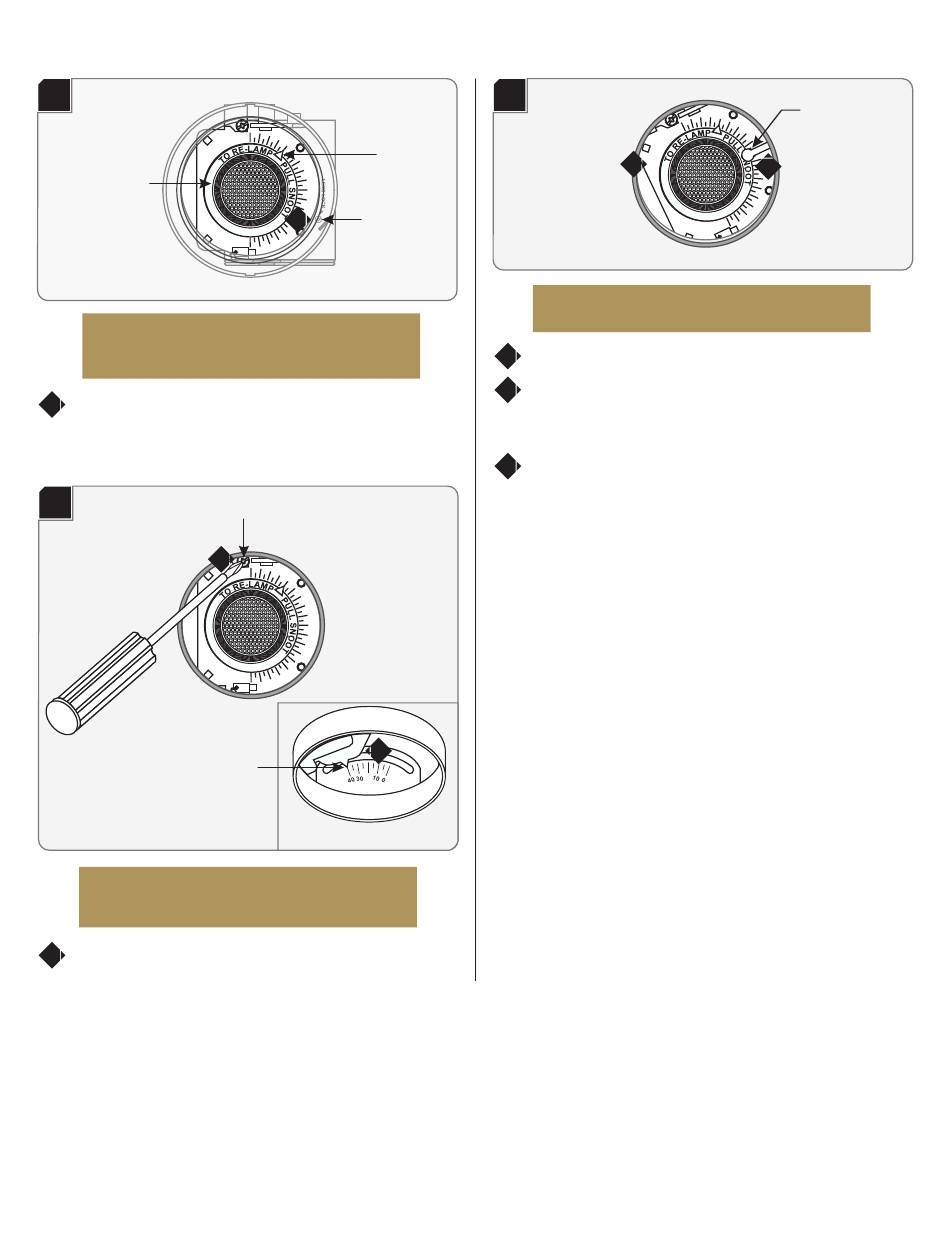

Adjust the Lamp Housing
6A
LAMP CARTRIDGE
ASSEMBLY
NOTE:
Lamp cartridge assembly can rotate 180°
horizontally. Lines on lamp housing are 5° apart.
Rotate the lamp cartridge assembly to desired position
1
(angle). Lock the lamp cartridge assembly by tightening
the lens lock screw.
6B
TILT ADJUSTMENT SCREW
2
INDICATOR
NOTE:
Lamp housing can tilt 40° vertically. Lines
on lamp housing are 5° apart.
To tilt the lamp housing vertically, rotate the tilt adjustment
2
screw until the desired angle is reached.
ARROW
INDICATOR
LENS LOCK
1
SCREW
2
20
7
6C
4
NOTE:
Lamp housing can rotate 361° horizontally.
3
Pull the rotation lock down to unlock the lamp housing.
4
Rotate the lamp housing horizontally. When the desired
position is achieved push the rotation lock up to lock the
lamp housing in place.
5
To install the flangeless trim, refer to the instruction
provided with the trim.
ROTATION LOCK
3
