Tech Lighting Element CMH MR16 Installation Instructions Manual page 4

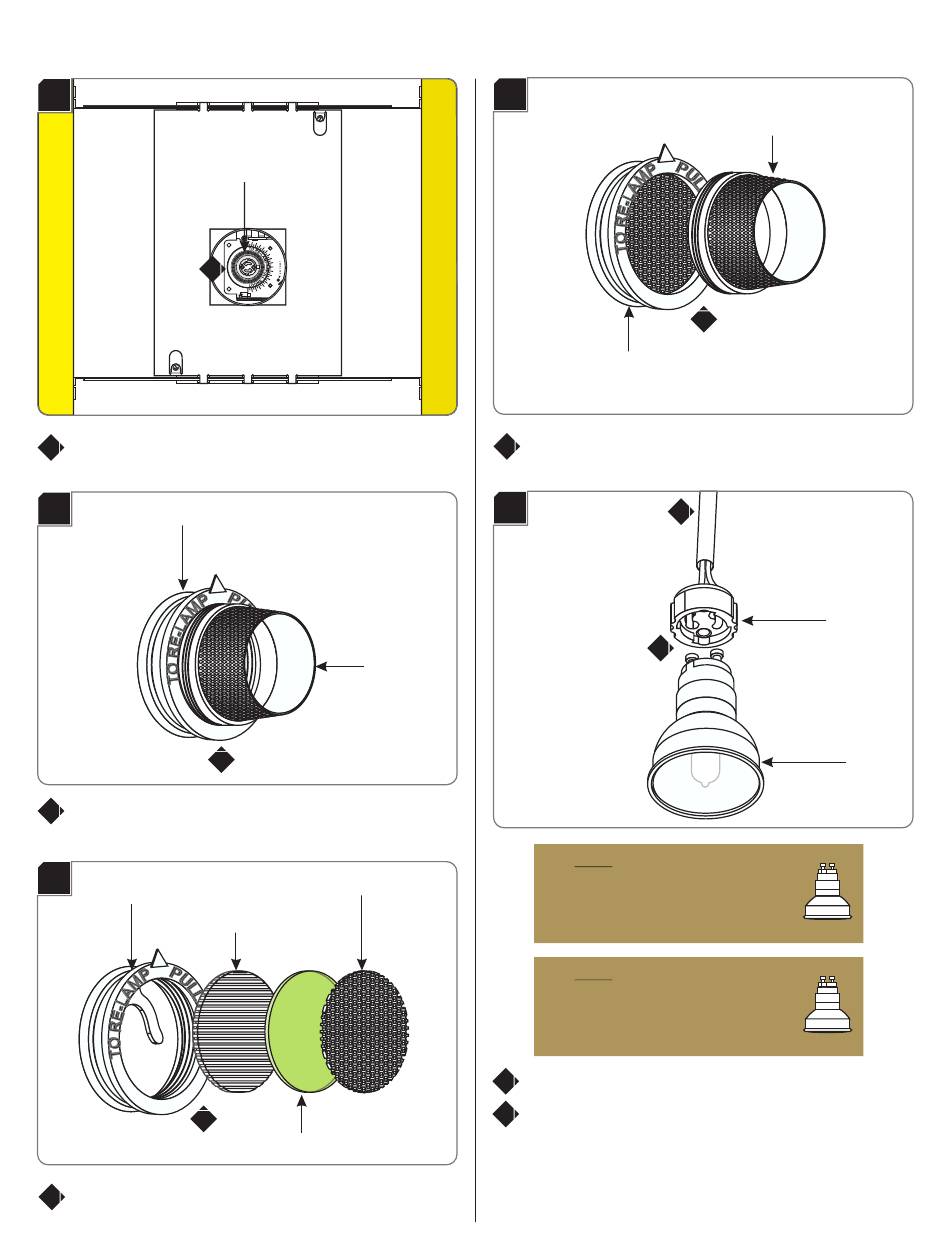

Install the Lamp & Lens Accessories
4A
LAMP CARTRIDGE ASSEMBLY
1
Pull the snoot to remove the lamp cartridge assembly.
1
4B
LAMP CARTRIDGE
2
Unscrew the snoot from the lamp cartridge.
2
4C
LAMP CARTRIDGE
DIFFUSER LENS
3
Place a maximum of three accessories (optional) into the
3
lamp cartridge.
SNOOT
HEXCELL LOUVER
COLOR LENS
4D
LAMP CARTRIDGE
Replace and tighten the snoot completely to the lamp
4
cartridge.
4E
Use ONLY 120 Volt,
MR16 Ceramic Metal Halide lamp with
models E3RLB-C20AC_, E3RLF-C20AC_,
E3SLB-C20AC_, E3SLF-C20AC_.
Use ONLY 120 Volt,
MR16 Ceramic Metal Halide lamp with
models E3RLB-C39AC_, E3RLF-C39AC_,
E3SLB-C39AC_, E3SLF-C39AC_.
Pull out the socket from the lamp housing.
5
6
Push the lamp pins into the large portion of the socket
slots and rotate the lamp clockwise to lock it in place
securely.
4
SNOOT
4
5
SOCKET
6
20 Watt GX10 Base
39 Watt GX10 Base
LAMP
