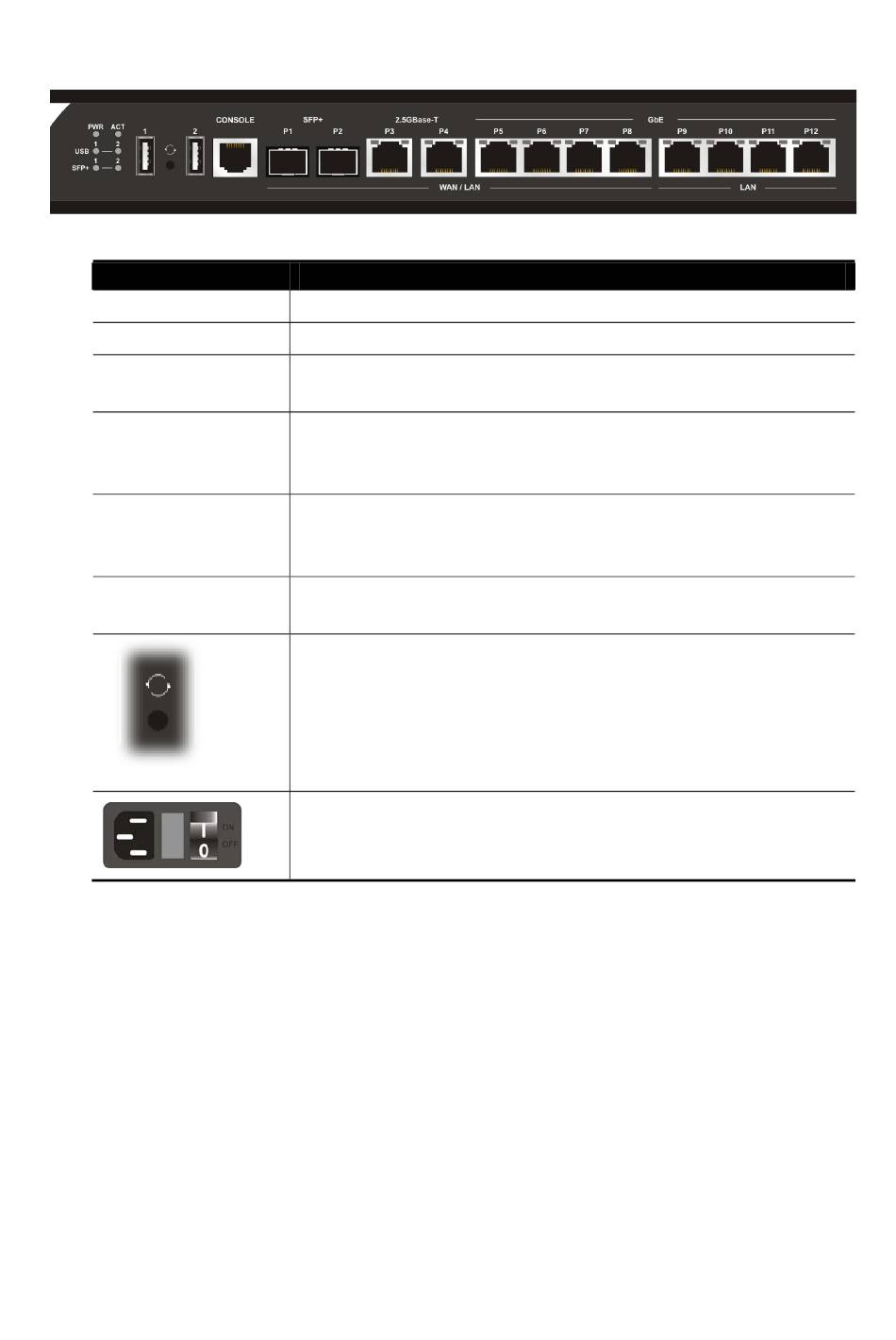

Interface
USB1 / USB2
Console
SFP+
(P1~P2)
2.5GBase-T
(P3~P4)
GbE P5~P8
GbE P9~P12
r s
r s
Description
Connecter for the USB device.
Provided for technician use.
Connecter for SFP module with the rate of 10G/1G bps.
Connector for remote network devices or local network
devices (WAN/LAN) with the rate of
2.5G/1G/100M/10M bps.
Connectors for remote network devices or local
network devices (WAN/LAN) with the rate of
1G/100M/10M bps.
Connecter for local network devices (LAN) with the rate
of 1G/100M/10M bps.
The Factory Reset button is used to restore the default
settings. Turn on the router (ACT LED is blinking). Press
the hole and keep for more than 5 seconds. When you
see the ACT LED begins to blink rapidly than usual,
release the button. Then the router will restart with
the factory default configuration.
Connecter for a power cord.
ON/OFF - Power switch.
