Rack-Mounted Installation - Draytek Vigor3910 Series Quick Start Manual

4 . 2 R a c k - M o u
4 . 2 R a c k - M o u

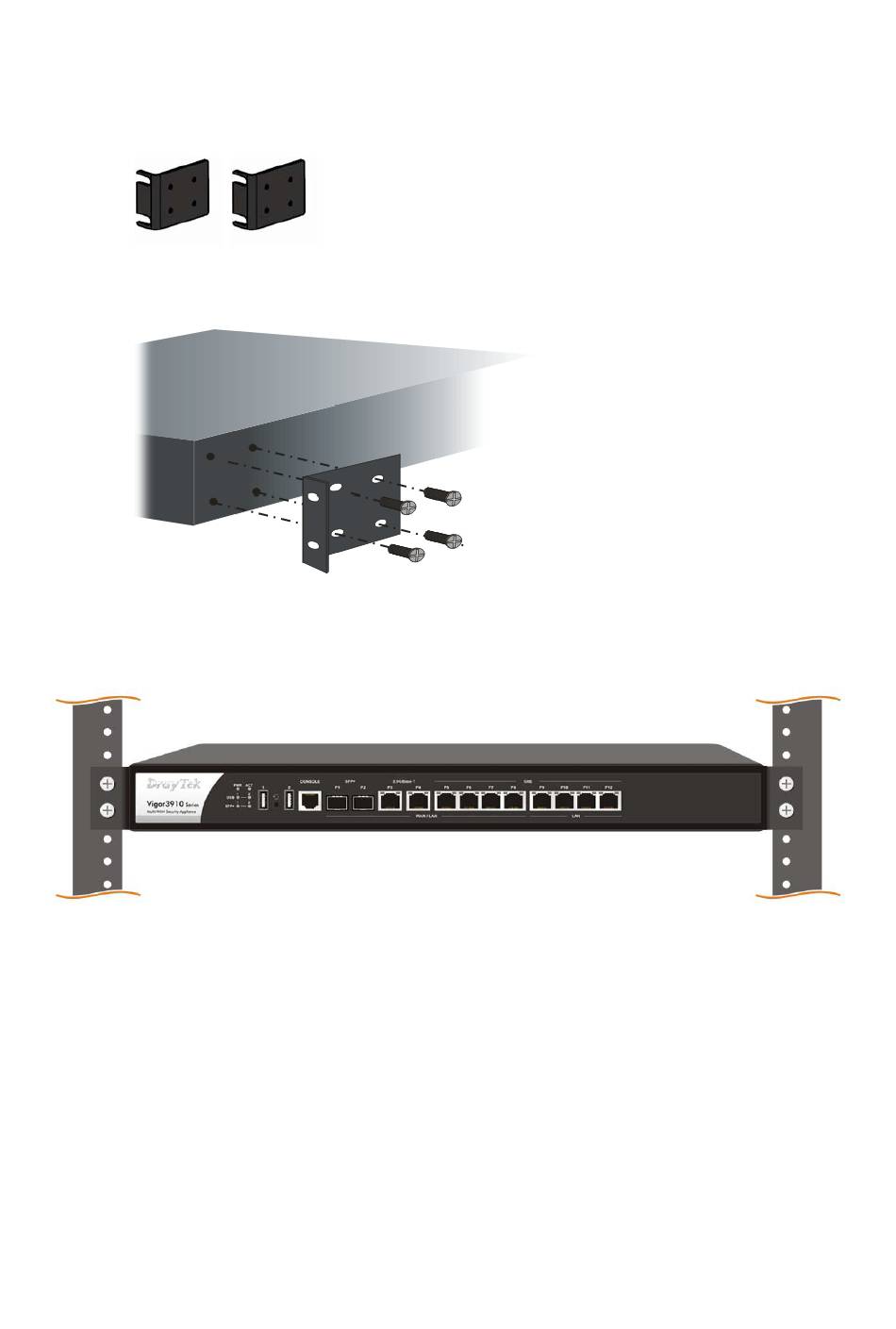

The Vigor3910 Series can be mounted on the shelf by using standard brackets
shown below.
Attach the brackets to the chassis of a rack. The second bracket attaches the
other side of the chassis.
After the bracket installation, the Vigor3910 Series chassis can be installed in a
rack by using four screws for each side of the rack.
Desktop Type Installation
Rubber pads are included with the Vigor3910 Series. These rubber pads improve
the air circulation and decrease unnecessary rubbing on the desktop.
n t e d I n s t a l l a t
n t e d I n s t a l l a
i o n
t i o n
6
