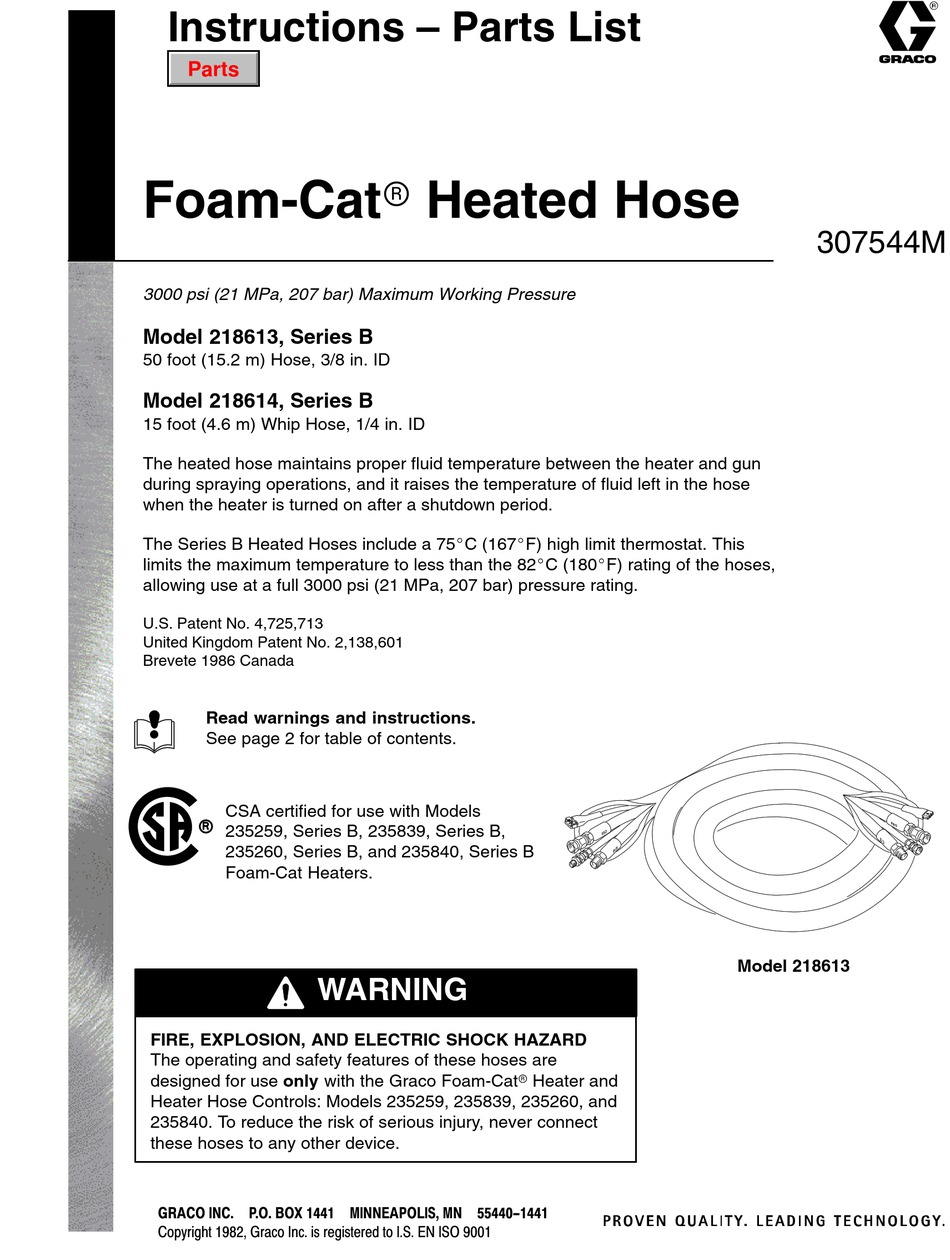

Instructions – Parts List
Foam-Catr Heated Hose
3000 psi (21 MPa, 207 bar) Maximum Working Pressure
Model 218613, Series B
50 foot (15.2 m) Hose, 3/8 in. ID
Model 218614, Series B
15 foot (4.6 m) Whip Hose, 1/4 in. ID
The heated hose maintains proper fluid temperature between the heater and gun
during spraying operations, and it raises the temperature of fluid left in the hose
when the heater is turned on after a shutdown period.
The Series B Heated Hoses include a 75_C (167_F) high limit thermostat. This
limits the maximum temperature to less than the 82_C (180_F) rating of the hoses,
allowing use at a full 3000 psi (21 MPa, 207 bar) pressure rating.
U.S. Patent No. 4,725,713
United Kingdom Patent No. 2,138,601
Brevete 1986 Canada
Read warnings and instructions.
See page 2 for table of contents.
CSA certified for use with Models
235259, Series B, 235839, Series B,
235260, Series B, and 235840, Series B
Foam-Cat Heaters.
WARNING
FIRE, EXPLOSION, AND ELECTRIC SHOCK HAZARD
The operating and safety features of these hoses are
designed for use only with the Graco Foam-Catr Heater and
Heater Hose Controls: Models 235259, 235839, 235260, and
235840. To reduce the risk of serious injury, never connect
these hoses to any other device.
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441
Copyright 1982, Graco Inc. is registered to I.S. EN ISO 9001
307544M
Model 218613

Advertisement

loading
Need help?

Need help?

Do you have a question about the Foam-Cat 218613 and is the answer not in the manual?

Questions and answers

Related Manuals for Graco Foam-Cat 218613

Summary of Contents for Graco Foam-Cat 218613

  • Page 1 Heater Hose Controls: Models 235259, 235839, 235260, and 235840. To reduce the risk of serious injury, never connect these hoses to any other device. GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440-1441 Copyright 1982, Graco Inc. is registered to I.S. EN ISO 9001...

  • Page 2: Table Of Contents

    ......... . Graco Phone Number .

  • Page 3: Model

    D This equipment is for professional use only. D Read all instruction manuals, tags, and labels before operating the equipment. D Use the equipment only for its intended purpose. If you are uncertain about usage, call your Graco distributor. D Use the hose only with the Graco Foam-Catr Heater and Heater Hose Controls: Models 235259, 235839, 235260, and 235840.
  • Page 4 WARNING INJECTION HAZARD Spray from the gun, hose leaks, or ruptured components can inject fluid into your body and cause extremely serious injury, including the need for amputation. Splashing fluid in the eyes or on the skin can also cause serious injury. D Fluid injected into the skin might look like just a cut, but it is a serious injury.

  • Page 5: Installation

    Installation Each hose assembly is 50 feet (15 m) long. A maxi- a. Slide the male end of the sleeve (A) over the mum combined length of 300 feet (92 m) can be used, hose (B). in addition to a 15 foot (4.6 m) whip hose assembly. b.
  • Page 6 Installation 6. Check the continuity of the heat tapes. 7. Connect the whip hose to the main hose assembly. a. Use an ohmmeter to check the electrical a. Connect the corresponding fluid hoses. resistance of the two outer prongs of the connector (D) that attaches to the heated hose b.
  • Page 7 Installation WARNING INJECTION HAZARD To reduce the risk of serious injury, follow the Pressure Relief Procedure on page 9 whenever you are instructed to relieve pressure. 11. Pressure check the hose assemblies. Refer to the Wrap hose connections with electrical tape heater manual 308219 for priming and pressurizing 04453A Fig.
  • Page 8 Installation 13. To install the cover: a. Lay the abrasion cover (G) and assembled heated hose (H) end to end. Refer to Fig. 8. b. With the gun disconnected from the gun man- ifold (J) and the air hose disconnected from the gun, pull a couple of inches of the cover (G) over the manifold and hoses and tape the cover to the hoses.

  • Page 9: Operation And Maintenance

    Operation and Maintenance Pressure Relief Procedure 9. If you suspect that the spray tip/nozzle or hose is completely clogged, or that pressure has not been fully relieved after following the steps above, very WARNING slowly loosen the tip/nozzle retaining nut or hose end coupling to relieve pressure gradually, then loosen completely.

  • Page 10: Parts

    Parts Model 218613, Series B 50 foot (15.2 m) Hose. Replaceable parts include items 1–4 only. Ref. Part No. Description Qty. 178540 TUBE, insulation, 50 ft. (15.2 m) 1 205447 COUPLING, 1/4 npt(m x f) 156173 UNION, adapter, 3/8 swivel x 3/8 npt(f) 162453 NIPPLE, 1/4 npsm x 1/4 npt Model 218614, Series B...

  • Page 11: Technical Data

    Technical Data Maximum Working Pressure ....3000 psi (210 MPa, 207 bar) Wattage ... 12 Watts/foot (39.4 Watts/meter) at 240 VAC, 50/60 cycle Wetted Parts .
  • Page 12 With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
