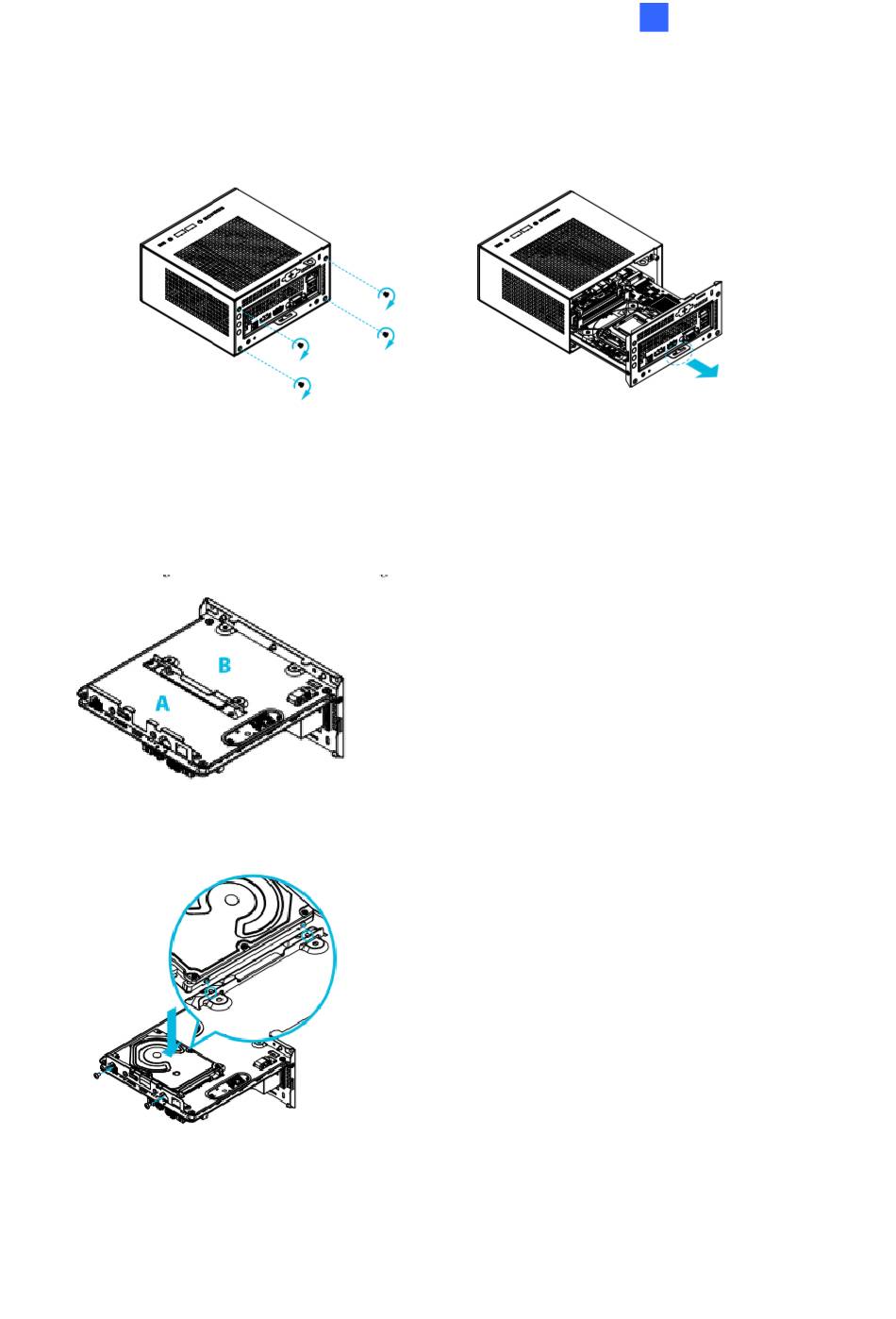

3.5 Installation of 2.5-inch HDD/SSD
1. Unscrew the four screws on the back panel. Pull out the motherboard tray.
2. Remove the motherboard by unscrewing the four screws of each corner.
3. Flip the motherboard over with the reverse side up. Place the HDD/SSD onto trays (A)
and (B).
Figure 3-8
4. Secure the HDD/SSD of tray A with the four screws.
Figure 3-9
Figure 3-7
Getting Started
3
9
