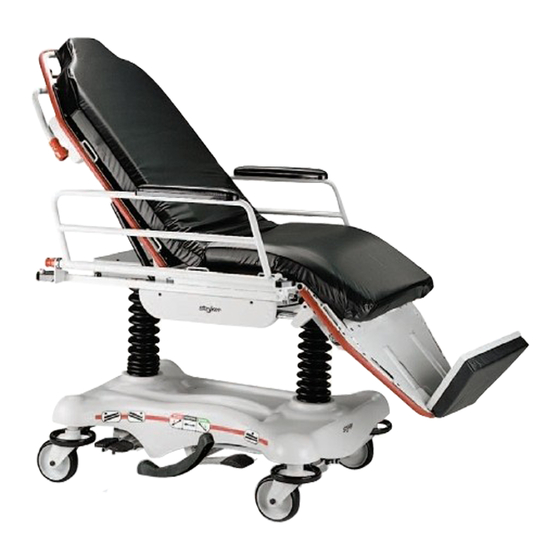

Stretcher chair
Hide thumbs Also See for 5050:

Advertisement

Quick Links

Download this manual
S S t t r r e e t t c c h h e e r r C C h h a a i i r r
O O p p e e r r a a t t i i o o n n s s M M a a n n u u a a l l
5050
5051
5050-109-001 Rev B.0
2019/09
EN

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5050 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stryker 5050

Summary of Contents for Stryker 5050

  • Page 1 S S t t r r e e t t c c h h e e r r C C h h a a i i r r O O p p e e r r a a t t i i o o n n s s M M a a n n u u a a l l 5050 5051 5050-109-001 Rev B.0 2019/09...
  • Page 3 S S y y m m b b o o l l s s Operating instructions General warning Caution No pushing Catalogue number Serial number For US Patents see www.stryker.com/patents CE mark Authorized representative in the European Community European medical device Manufacturer Safe working load Type B applied part...
  • Page 5 Positioning the product in Trendelenburg ........................9 Positioning the product in Reverse Trendelenburg.....................9 Raising or lowering the siderails ..........................10 Raising and lowering the Fowler backrest (Model 5050)...................10 Raising and lowering the Fowler backrest (Model 5051)...................10 Raising or lowering the footrest ..........................11 Positioning the foot section in dependent (chair) mode.....................11...
  • Page 6 • Do not clean, service, or perform maintenance while the product is in use. • Do not immerse the mattress in cleaning or disinfectant solutions. Excess moisture could cause product malfunction that results in product damage or patient injury. 5050-109-001 Rev B.0...
  • Page 7 • Always make sure that the IV pole is at a low height to pass through door openings when you transport a patient. P P i i n n c c h h p p o o i i n n t t s s 5050-109-001 Rev B.0...
  • Page 8 I I n n d d i i c c a a t t i i o o n n s s f f o o r r u u s s e e The Stryker Model 5050 Stretcher Chair and Model 5051 Eye Stretcher Chair is for use in all acute care hospitals and medical outpatient services.
  • Page 9 6 in. 15 cm Stryker reserves the right to change specifications without notice. O O p p e e r r a a t t i i o o n n S S t t o o r r a a g g e e a a n n d d t t r r a a n n s s p p o o r r t t a a t t i i o o n n E E n n v v i i r r o o n n m m e e n n t t a a l l c c o o n n d d i i t t i i o o n n s s 100 °F...
  • Page 10 C C o o n n t t a a c c t t i i n n f f o o r r m m a a t t i i o o n n Contact Stryker Customer Service or Technical Support at: 1-800-327-0770.
  • Page 11 Competent authority of the European Member State where the user and/or patient is established. To view your operations or maintenance manual online, see https://techweb.stryker.com/. Have the serial number (A) of your Stryker product available when calling Stryker Customer Service or Technical Support. Include the serial number in all written communication.
  • Page 12 To lower the entire litter, press on both pedal B and pedal C at the same time. To lower the head end of the litter, depress pedal (B). To lower the foot end of the litter, depress pedal (C). 5050-109-001 Rev B.0...
  • Page 13 1. Raise the litter ( Raising or lowering the litter (page 8)). 2. Push down on pedal (C) (Figure 3) until you reach the desired position. To lower the product from Reverse Trendelenburg position, push down on both pedals (B and C) at the same time. 5050-109-001 Rev B.0...
  • Page 14 To raise or lower the Fowler backrest, squeeze the red handle (A) toward the Fowler backrest frame. Lift up or push down on the Fowler backrest to move it to the desired position (between 0 and 90 degrees) (Figure 5). 5050-109-001 Rev B.0...
  • Page 15 C C A A U U T T I I O O N N - - Always support the foot section while repositioning to make sure that it does not fall. Patient or operator injury or device damage may occur. To put the foot section in dependent (chair) mode, rotate the red handle (A), located on both sides of the foot section, toward the head end of the product (Figure 6). 5050-109-001 Rev B.0...
  • Page 16 P P o o s s i i t t i i o o n n i i n n g g t t h h e e p p u u s s h h b b a a r r ( ( M M o o d d e e l l 5 5 0 0 5 5 0 0 ) ) To raise or lower the push bar, support the push bar and pull the red release knob (A) (Figure 7). Swing the push bar into the full up or down position until it latches. 5050-109-001 Rev B.0...
  • Page 17 To adjust the articulating headpiece, grasp either handle under the headpiece and squeeze. • Handle (A) (Figure 9) releases one latch and rotates the headpiece on axis (C) (Figure 8). • Handle (B) (Figure 9) releases the other latch and rotates the headpiece on axis (D) (Figure 8). 5050-109-001 Rev B.0...
  • Page 18 F F i i g g u u r r e e 9 9 – – H H a a n n d d l l e e l l o o c c a a t t i i o o n n s s N N o o t t e e - - For ease of use, release only one latch at a time. 5050-109-001 Rev B.0...
  • Page 19 A A c c c c e e s s s s o o r r i i e e s s a a n n d d p p a a r r t t s s These accessories may be available for use with your product. Confirm availability for your configuration or region. Call Stryker Customer Service: 1-800-327-0770. N N a a m m e e...
  • Page 20 5. Turn the knob clockwise to tighten the knob and hold the wrist rest in place. N N o o t t e e - - The “U” shaped rest (D) can be pivoted up and away from the patient when the wrist rest is not in use. 5050-109-001 Rev B.0...
  • Page 21 The optional drape support air delivery system has a flexible drape support with air tubing inside the support for patient comfort. 1. Place the mounting tab (A) into the IV socket at the head end of the product. 2. Insert the air delivery tube into the air tube receptacle (B) (Figure 11). 5050-109-001 Rev B.0...
  • Page 22 1. Insert the IV pole into a socket at the head end or foot end of the product. 2. Turn the knob (A) counterclockwise and pull up on the telescoping portion (B) until you reach the desired height. 3. Turn the knob (A) clockwise to lock the telescoping portion in place. 5050-109-001 Rev B.0...
  • Page 23 2. To raise the height of the pole, turn the knob (B) counterclockwise. Pull up on the telescoping portion (A) until you reach the desired height (Figure 13). 3. To lock the telescoping portion into place, turn the knob (B) clockwise. 5050-109-001 Rev B.0...
  • Page 24 F F i i g g u u r r e e 1 1 4 4 – – R R e e s s t t r r a a i i n n t t s s t t r r a a p p t t i i e e - - i i n n l l o o c c a a t t i i o o n n s s 5050-109-001 Rev B.0...
  • Page 25 • Do not steam clean, pressure wash, hose off, or ultrasonically clean mattresses. These methods of cleaning may void the product’s warranty. The life of the mattress can be affected by an increase in frequency of usage, which might include more frequent cleaning and disinfection. 5050-109-001 Rev B.0...
  • Page 26 Hard-to-clean spots Use standard household cleansers or vinyl cleansers and a soft bristle brush on troublesome spots or stains. Pre-soak dried-on soil. Laundering Laundering is not recommended. Laundering may substantially decrease the useful life of the mattress. 5050-109-001 Rev B.0...
  • Page 27 W W A A R R N N I I N N G G - - Always disinfect the mattress between patients. Failure to do so could result in cross-contamination and infection. Recommended disinfectants: • Quaternaries (active ingredient - ammonium chloride) 5050-109-001 Rev B.0...
  • Page 28 Failure to follow these cleaning instructions may void your warranty. • Frequent or prolonged exposure to higher concentrations of disinfectant solutions may prematurely age the cover fabric. • The use of accelerated hydrogen peroxides or quaternaries that contain glycol ethers may damage the cover. 5050-109-001 Rev B.0...
  • Page 29 Remove product from service before you perform the preventive maintenance inspection. Check all items listed during annual preventive maintenance for all Stryker Medical products. You may need to perform preventive maintenance checks more often based on your level of product usage. Service only by qualified personnel.
  • Page 30 Stryker Medical 3800 E. Centre Avenue Portage, MI 49002 5050-109-001 Rev B.0 2019/09 WCR: AB.5...

This manual is also suitable for:

5051
