Establishing Pen-PC Communications

Do the following to check that your Pen and PC are
configured correctly for Pen-PC Communications:
On the Pen:
To set the Pen communications settings:
1. Turn the Pen on, scroll down to Preferences in the
Pen Main Menu and press ENT.
2. Scroll down to Communications Settings and press
ENT.
3. The Connection Device submenu appears. Press
ENT.
4. Select Cable and press ENT.
5. Scroll down to Baud Rate and press ENT.
6. The Baud Rate should be set to 115,200. Scroll down
until you see 115200 on screen and press ENT.
7. Press ESC twice to return to the Pen Main Menu.
On the Desktop:
To view the Desktop application communications settings
select Communications Settings from the Pen
Communications menu on the Menu Bar of the Desktop
application.

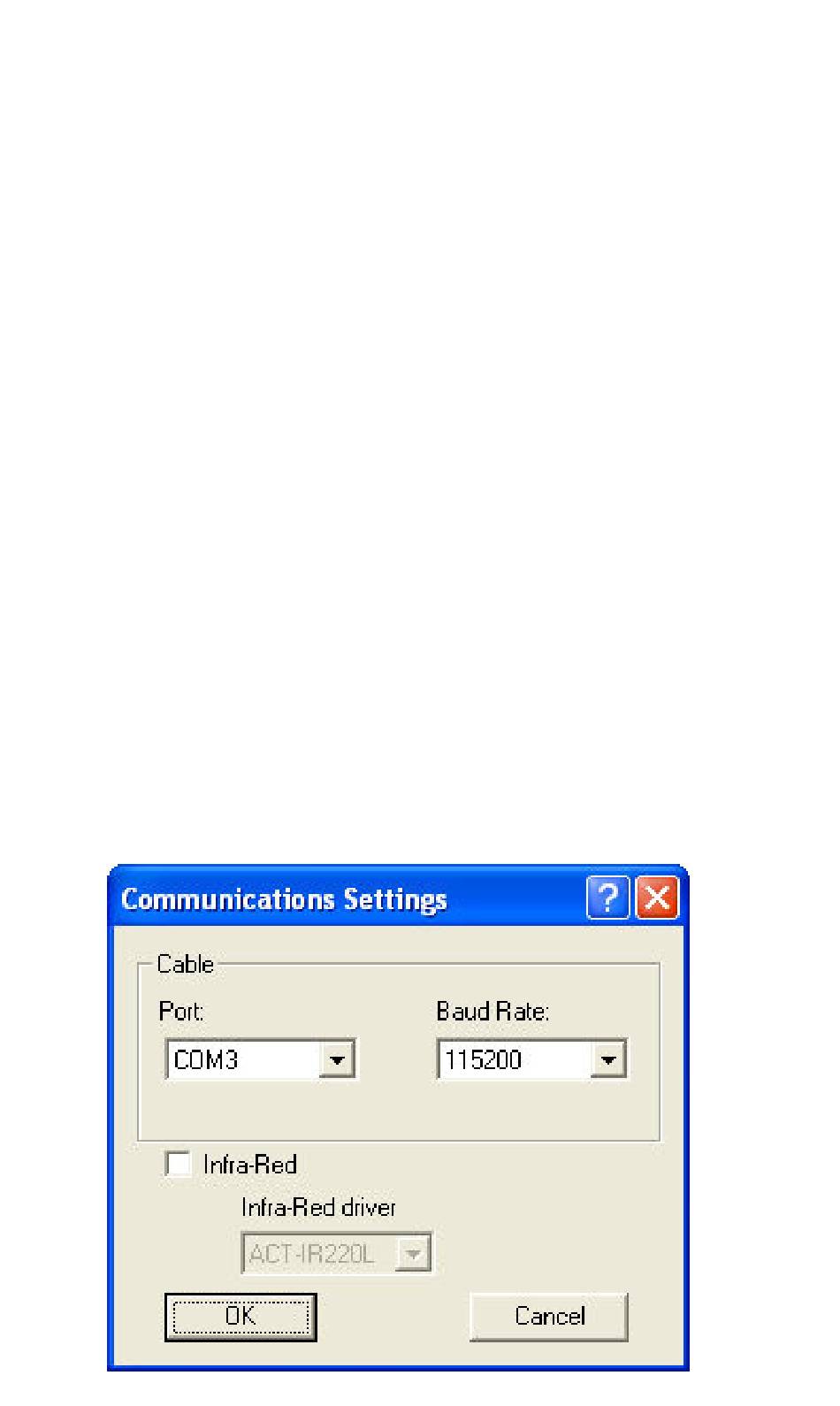

The Communications Settings dialog box appears:
Getting Started
9
