Getting Started
The correct settings (when using the USB cable) should be
as follows:
1. The Port should correspond to the COM port being
used by the Pen. To find out whether the port is correct
do the following:
a. Connect the USB cable to a USB port on your PC.
b. On your computer go to Start/Settings/Control
Panel and select System.
c. Click on the Hardware tab and then click on the
Device Manager.

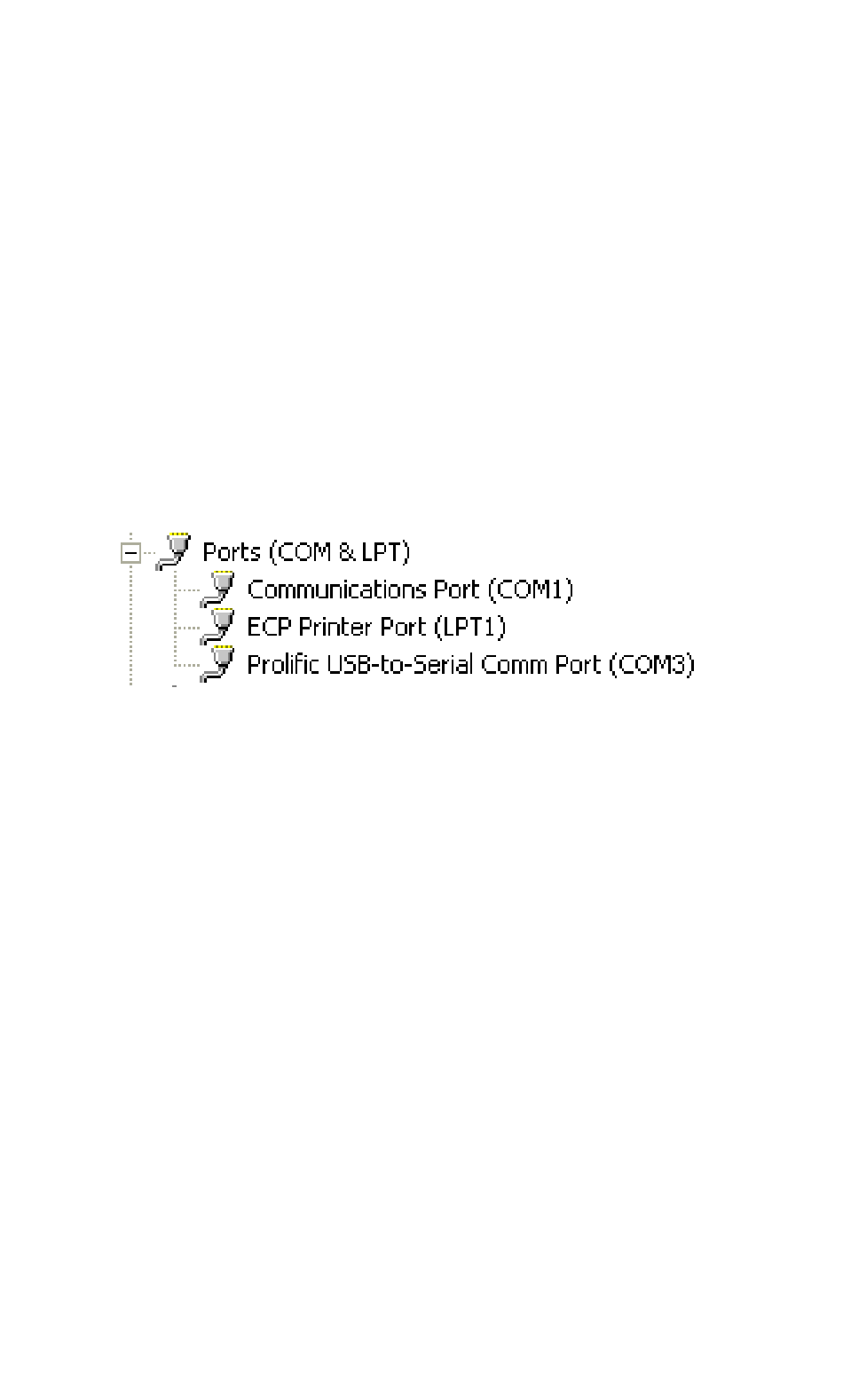

d. Scroll down to Ports (COM & LPT) and open the
drop-down list of ports.
e. Find the "Prolific USB-to-Serial Comm Port" and
note the corresponding COM port number.
f. Go back to the Communications Settings dialog
box and modify the Port option accordingly.
2. The Baud Rate should be set to 115,200.
3. Click OK.
Note: If the "Prolific USB-to-Serial Comm Port" is not listed
under Ports (COM & LPT) it means that the USB driver has
not been installed correctly. Go back to the CD and rerun the
driver installation. If at any stage you are requested to restart
your computer, please do so.
Once this is complete, run the Communications Wizard to
establish communications between your Pen and the PC.
Make sure you are an administrator on your PC and that the
cable jack is pushed firmly into the Pen (until you hear the
last little "click").
The Communications Wizard can be accessed from the
Help menu on the Menu Bar of the WizCom Desktop.
If you are experiencing trouble installing the PC software and
establishing communications, see Troubleshooting on page
69.
