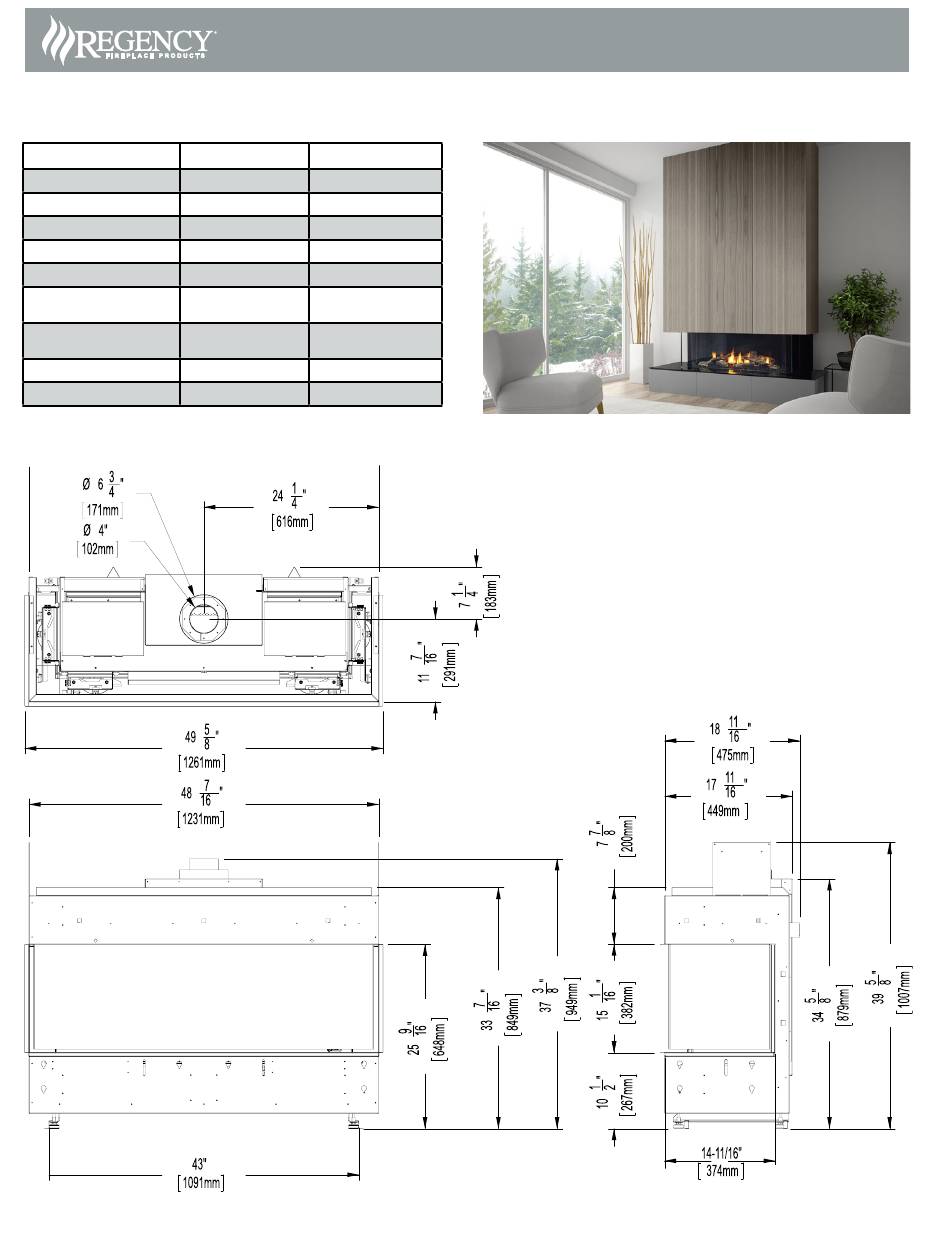

City Series CB40EPV Gas Fireplace
Model
CB40EPV-NG
Fuel Type
Minimum Supply Pressure
Manifold Pressure - High
3.8" W.C. (0.94 kPa)
Manifold Pressure - Low
1.1" W.C. (0.27 kPa)
Orifice Size -Altitude 0-4500 ft.
Minimum Input
Altitude 0-4500 ft. (0-1372m)
Maximum Input
Altitude 0-4500 ft. (0-1372m)
Vent Sizing
4" Inner / 6-5/8" Outer
CSA P.4.1
CB40EPV-LP
Natural Gas
Propane
5" W.C. (1.25 kPa)
11" W.C. (2.73 kPa)
10.5" W.C. (2.62 kPa)
2.9" W.C. (0.72 kPa)
#42 DMS
#53 DMS
15,500 BTU/h
15,500 BTU/h
(4.54 kW)
(4.54 kW)
28,500 BTU/h
28,500 BTU/h
(8.33 kW)
(8.33 kW)
4" Inner / 6-5/8" Outer
60.02%
60.85%
City Series Power Vent
Advertisement
Related Manuals for Regency CB40EPV Series
Summary of Contents for Regency CB40EPV Series
- Page 1 City Series Power Vent City Series CB40EPV Gas Fireplace Model CB40EPV-NG CB40EPV-LP Fuel Type Natural Gas Propane Minimum Supply Pressure 5” W.C. (1.25 kPa) 11” W.C. (2.73 kPa) Manifold Pressure - High 3.8” W.C. (0.94 kPa) 10.5” W.C. (2.62 kPa) Manifold Pressure - Low 1.1”...
- Page 2 City Series Power Vent CB40EPV Gas Fireplace CLEARANCES CB40EPV Dimension Measured From: Flue Clearances to Clearance: 3 sided Combustibles A: From Floor Min. 0" Bottom of Fireplace Opening Horizontal - Top 3" A1 : Mantel Height (min.) Top of Fireplace Opening Horizontal - Side 2"...
- Page 3 City Series Power Vent CB40EPV Gas Fireplace CLEARANCES CB40EPV Floor to ceiling with top opening Low framing with vents in front/sides or top Full framing with low vents in front or sides Full framing with vents in front or sides...
- Page 4 City Series Power Vent CB40EPV Gas Fireplace FRAMING DIMENSIONS CB40EPV NOTE: Framing may be constructed of combustible material (ie. 2x4) and does not require steel studs. Two (2) optional steel stud kits may also be purchased. These kits may be used in place of the conventional wood framing as shown below. It comes as a compact kit (flush to the appliance on all sides)or an extended kit.
-
Page 5: Mantel Leg Clearances
City Series Power Vent CB40EPV Gas Fireplace MANTEL CLEARANCES CB40EPV Due to the extreme heat this fireplace emits, the mantel clearances are critical. Combustible mantel clearances from top of front facing are shown in the diagram on the right. Note: Ensure the paint that is used on the mantel and the facing is "high quality"... - Page 6 City Series Power Vent CB40EPV Gas Fireplace VENTING ARRANGEMENTS FOR HORIZONTAL TERMINATIONS RIGID PIPE: MUST USE RIGID PIPE ADAPTOR 770-994 AND 946-606 PIPE REDUCER TO 4" X 6 5/8" Note: Rigid pipe is approved for up to 72 feet. Note: Flex pipe is approved for up to 40 feet using 2 X 946-756-- 20 foot flex kits. The gas power vent system is designed to allow the installation of a gas appliance when typical vent configurations (shown in this manual) are not possible.
-
Page 7: Horizontal Terminations
City Series Power Vent CB40EPV Gas Fireplace HORIZONTAL TERMINATIONS Rigid Pipe 4" x 6-5/8" The minimum components required for a basic horizontal termination are: Power Vent Kit Rigid Pipe Adaptor Length of pipe to suit wall thickness and total vent run (see Table 1) Wall thickness is measured from the back standoffs to the inside mounting surface of termination cap. - Page 8 Models Equipped with Surefi re Ignition The Power Vent system can only be used with units that have been tested with the Regency Power Vent system. Downward vertical vent runs are permitted with the Surefi re Ignition system. See vent confi guration in unit manual.
- Page 9 Models Equipped with Surefi re Ignition The Power Vent system can only be used with units that have been tested with the Regency Power Vent system. Downward vertical vent runs are permitted with the Surefi re Ignition system. See vent confi guration in unit manual.
