Summary of Contents for Rittal 7030.430

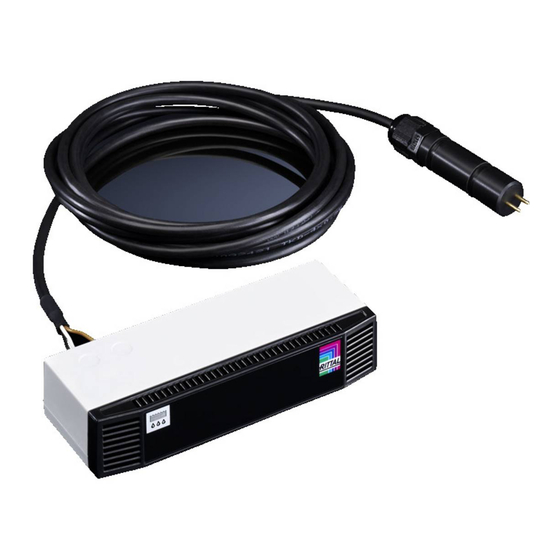

- Page 1 CMC III Leckagesensor CMC III leak sensor 7030.430 Montage-, Installations- und Bedienungsanleitung Assembly and operating instructions...
- Page 2 Preface Preface Dear Customer! Thank you for choosing a CMC III leak sensor (hereafter referred to as "leak sensor") from Rittal. We wish you every success. Yours, Rittal GmbH & Co. KG Rittal GmbH & Co. KG Auf dem Stützelberg...
-
Page 3: Table Of Contents
Operating via the CMC III Processing Unit website ............11 6.4.1 Device ..............11 6.4.2 Leakage ............. 12 Storage and disposal ..... 13 Storage............13 Disposal............13 Technical specifications ....14 Customer service addresses ..15 Rittal CMC III leak sensor... -
Page 4: Notes On Documentation
This documentation shows the English screenshots. The descriptions of individual parameters on the Rittal GmbH & Co. KG hereby confirms that the CMC III CMC III PU website likewise use English terminology. leak sensor is compliant with the EC EMC Directive Depending on the set language, the displays on the 2004/108/EC. -
Page 5: Safety Instructions
Please observe the following general safety instructions when installing and operating the system: – Use only original Rittal products or products recom- mended by Rittal in conjunction with the leak sensor. – Please do not make any changes to the leak sensor that are not described in this user manual or in the as- sociated assembly and operating instructions. -
Page 6: Product Description
Rittal GmbH & Co. KG is not liable for any damage which may result from failure to comply with the documenta- tion provided. The same applies to failure to comply with the valid documentation for any accessories used. -
Page 7: Transport And Handling
Check the unit for any damage that may have oc- curred during transport. Note: Damage and other faults, e.g. incomplete de- livery, should be reported immediately, in writing, to the shipping company and to Rittal GmbH & Co. KG. Remove the unit from the PE film. ... -
Page 8: Installation
On free surfaces, a bracket may be used to secure the appropriate housing or in an appropriate enclosure sensor to the floor, such as Rittal mounting bracket with the required IP protection category. 4597.000 (fig. 3). The sensor probe is then attached to the bracket using the cable ties provided. -
Page 9: Installing The Electronic Unit On A Top-Hat Rail
In addition, the status LED of the CMC III Processing Unit flashes white and a corresponding message ap- pears on the website. Note: No settings can be modified as long as the update process is running. Rittal CMC III leak sensor... - Page 10 – Continuous blue flashing: Communication via the CAN bus. – Green flashing: When the measured value changes, or at least every 5 seconds. – Continuous red flashing: The leak sensor has the sta- tus "Alarm". – Continuous red light: Invalid measured value. Rittal CMC III leak sensor...
-
Page 11: Operation
5 seconds. ware version, are also displayed. You should have such information available, in particular to permit fast trouble- Tab. 2: Multi-LED flashing codes shooting of queries with Rittal. Rittal CMC III leak sensor... -
Page 12: Leakage
Explanation Position Current value of leak sensor (0 = no leak detected/OK, 1 = leak detected/alarm). Status Current status of the leak sensor, taking account of the time delay. Tab. 6: Displays at "Leakage" level Rittal CMC III leak sensor... -
Page 13: Storage And Disposal
7 Storage and disposal Storage and disposal Storage If the device is not used for a long period, Rittal recom- mends that it be disconnected from the mains power supply and protected from damp and dust. Disposal Since the leak sensor consists mainly of the "housing"... -
Page 14: Technical Specifications
IP 30 to IEC 60 529 Protection category of sensor probe IP 65 to IEC 60 529 Inputs and outputs CAN bus (RJ 45) Sensor probe interface Operation/signals LED display OK/Alarm/CAN bus status Tab. 7: Technical specifications Rittal CMC III leak sensor... -
Page 15: Customer Service Addresses
9 Customer service addresses Customer service addresses For technical queries, please contact: Tel.: +49(0)2772 505-9052 E-mail: info@rittal.de Homepage: www.rittal.com For complaints or service requests, please contact: Tel.: +49(0)2772 505-1855 E-mail: service@rittal.de Rittal CMC III leak sensor... - Page 16 Enclosures Power Distribution Climate Control IT Infrastructure Software & Services RITTAL GmbH & Co. KG Postfach 1662 · D-35726 Herborn Phone +49(0)2772 505-0 · Fax +49(0)2772 505-2319 E-mail: info@rittal.de · www.rittal.com...
