Page 1

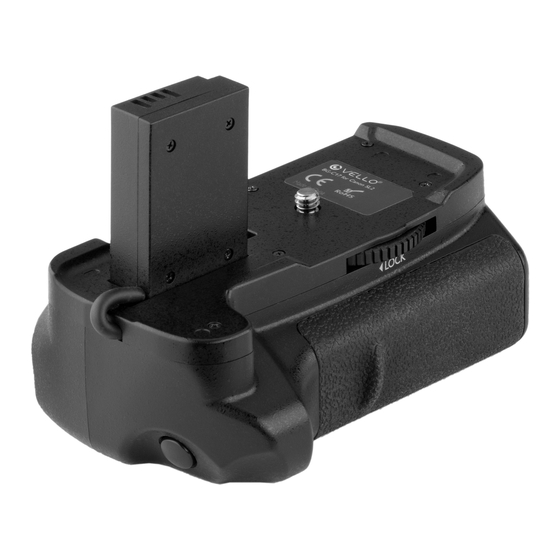

BG-C17 BATTERY GRIP Designed for the Canon EOS Rebel SL2 DSLR Camera...
Page 2
Introduction Thank you for choosing the Vello BG-C17 Battery Grip for the Canon EOS Rebel SL2 DSLR Camera. This camera accessory offers extended shooting time by housing two P l e a s e r e a d LP-E17 batteries (not included). The grip’s ergonomic...
Page 3
If you notice smoke, an unusual smell, or noise from the battery pack, discontinue use immediately. Avoid water or extreme humidity, and keep in a dry Remove the batteries and take the device to a Vello and cool place. authorized reseller.
Page 5
Shutter Release Button Attachment Wheel Battery Compartment Door Secures the grip to the camera’s Serves as an alternate shutter release tripod socket. Battery Door Latch button shooting vertical (portrait) mode. 2.5 mm Shutter Release Cable Dummy Battery Fits inside the Canon SL2 battery Hand Strap Mount chamber and uses the camera’s DC cord hole.
Attaching the Grip Ensure that your camera On a flat surface, turn the Match up the metal contacts power is turned off, and Canon SL2 camera upside inside the SL2’s battery remove the battery. down, and open the battery chamber with the dummy chamber door and DC cord battery.
Page 7
With the camera in one Rotate the at tachment C o n n e c t t h e 2 . 5 m m hand and the grip in the wheel clockwise to secure shutter release cable from other, line up the camera’s the grip to the camera.
Page 8
Pull down on the grip’s C l o s e t h e b a t t e r y Note: When removing the grip, b a t t e r y d o o r l a t c h , compartment door until it turn the camera power off before a nd open the ba t ter y...
Specifications Power Source One or two Canon LP-E17 rechargeable batteries Operating Temperature 32°F to 104°F (0°C to 40°C) Dimensions (W × D × H) 4.6 × 2.9 × 3.7 in. (11.7 × 7.4 × 9.4 cm) Weight (without batteries) 5.3 oz. (150 g)
One-Year Limited Warranty This VELLO product is warranted to the original purchaser This warranty does not cover damage or defect to be free from defects in materials and workmanship caused by misuse, neglect, accident, alteration, abuse, under normal consumer use for a period of one (1) improper installation or maintenance.
