Summary of Contents for Vello BG-C10-2

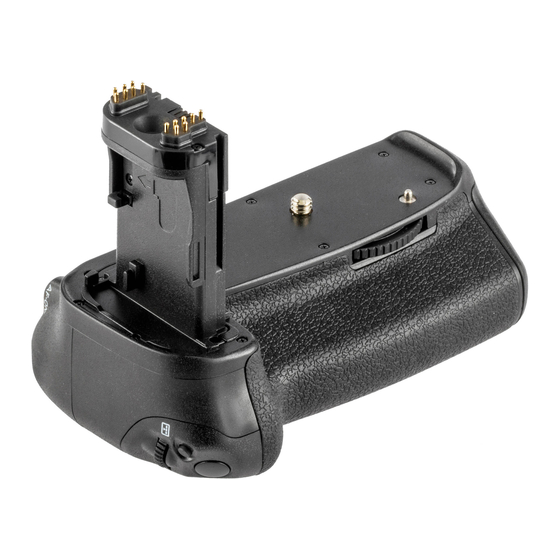

- Page 1 BG-C10-2 BATTERY GRIP Designed for the Canon EOS 70D, 80D, and 90D DSLR Cameras...
- Page 2 Thank you for choosing Vello The Vello BG-C10-2 battery grip offers extended shooting time and comfort when shooting in a vertical (portrait) orientation. The grip is compatible with the Canon 90D, 80D, and 70D DSLR Cameras and accepts up to two Canon LP-E6/E6N(H) rechargeable batteries.
- Page 3 Precautions The BG-C10-2 should be used only with the Remove batteries from the grip when not in use. compatible devices specified in this manual. Do not attempt to disassemble. Use only with the batteries and battery holders recommended in this manual.
- Page 4 Overview...
- Page 5 Shutter release button Battery compartment lock Power contacts Camera battery door holder Thumbwheel Contact cap AF area/AF method Mounting screw Battery slot 1 Main dial AF-ON selection and magnify Slot 1 contacts button Hand-strap mount Slot 2 contacts AE/FE lock and Index/reduce Tripod socket button Battery slot 2...
- Page 6 Attaching the Battery Grip Ensure that the camera is Remove camera’s Slide the chamber door turned off. battery chamber door. Pull into BG-C10-2’s gently at a 45° angle until camera battery door the door detaches. holder for safekeeping.
- Page 7 Insert the battery grip’s power contacts into Rotate the thumbwheel counterclockwise until the camera’s battery chamber and attach the the grip is secured to the camera. grip to the camera.
-
Page 8: Inserting Batteries
Inserting Batteries Turn off the camera’s Twist the battery tray’s Canon LP-E6 / E6N(H) power, and make sure the lock, remove batteries: Insert the first grip’s control lock switch is battery tray from the grip. battery into slot 1 as in the Off position. - Page 9 AA Batteries: Place six Insert and lock the battery Turn on the camera power, identical AA batteries into tray inside the battery grip. switch grip’s the AA battery tray as control lock to the On indicated. position. Note: When removing the grip, turn off the camera’s power, switch the grip’s control lock to off, and then remove the...
-
Page 10: Specifications
Specifications Power source 1. Up to two Canon LP-E6/E6N(H) type rechargeable Li-ion batteries 2. Six AA/LR6 Alkaline, Ni-MH, Lithium or Nickel-Manganese batteries Operating temperature 32°F to 104°F (0°C to 40°C) Dimensions (H × W × D) 4.5 × 5.7 × 3.3 in. (11.4 × 14.5 × 8.5 cm) Weight 9 oz. -
Page 11: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. - Page 12 www.vellogear.com All other trademarks are the property of their respective owners.
