Summary of Contents for Vello BG-C4

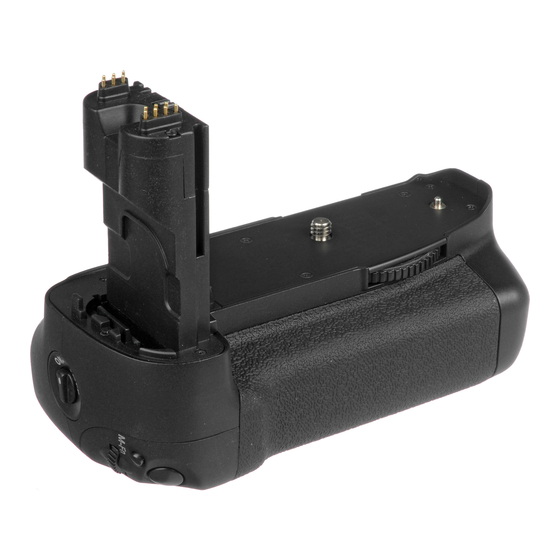

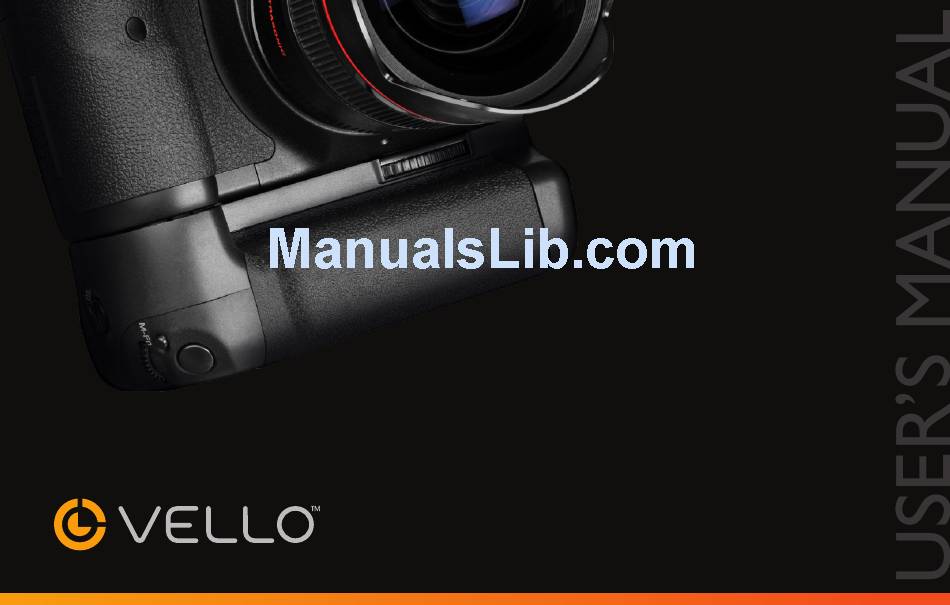

- Page 1 BG-C4 BATTERY GRIP Designed for the Canon EOS 7D DSLR Camera...
- Page 2 Introduction Thank you for choosing Vello and congratulations on your new BG-C4 battery grip purchase. Enjoy the many benefits that a battery grip offers, such as extended shooting time and more control and comfort when shooting in a vertical (portrait) orientation.
- Page 3 Cover the power terminals with the contact The battery level may not display properly if cap when the BG-C4 is not in use. This prevents batteries are inserted before mounting the grip. electrical shorts caused by metal objects touching the power terminals.
- Page 4 Overview 12 13 14...
- Page 5 Contact Cap Guide Pin AE Lock/FE Lock/Index/Reduce Button* Protects grip contacts. Keep covered Helps align the camera to the grip. when the grip is not in use. Attachment Wheel AF Starter Button Electrical Contacts Secures the grip to the camera. Communicates with the camera Shutter-Release Button* electronics.
-
Page 6: Attaching The Grip
Attaching The Grip Ensure that the power is Remove battery Open the camera battery turned off on the camera from the camera battery chamber cover and that the power switch compartment. remove as indicated above. is set to OFF on the battery grip. - Page 7 Remove the protective Rotate attachment camera battery chamber cap and connect the BG- wheel in the direction cover into the BG-C4 C4 grip to the camera, shown by the arrow until it battery chamber holder. while aligning the grip’s is firmly tightened.
-
Page 8: Inserting Batteries
AA battery holder as indicated above and open BG-C4 battery grip, while shown, while ensuring the battery chamber door. ensuring correct that they are in the... - Page 9 Slide the AA holder into Switch the grip power Household Power Outlet: the grip until it clicks into to ON and then turn Canon ACK-E8 place. Close the battery on the camera’s power. AC Power Adapter Kit compartment. Check the battery level (sold separately) can be in the control panel or connected to the grip.
-
Page 10: Specifications
Specifications Power Sources One or two Canon LP-E6 rechargeable Li-ion batteries Six AA/LR6 Alkaline batteries Works with the Canon AC Adapter Kit ACK-E8 (sold separately) Operating Temperature 32 – 104 °F (0 – 40 °C) Dimensions Approximately 5.8" × 4.5" × 3" (14.7 × 11.4 × 7.7 cm) Weight Approximately 12 oz. -
Page 11: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. - Page 12 © Copyright 2014 Gradus Group LLC www.vellogear.com All other trademarks are the property of their respective owners...
