Vello BG-C15 User Manual

Designed for the canon t7i and 77d dslr cameras
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

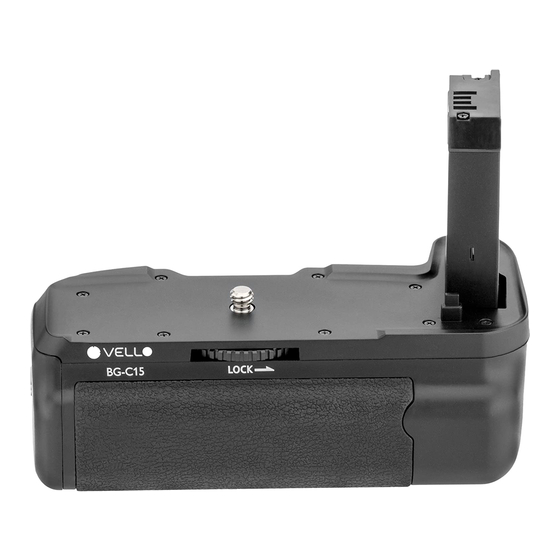

BG-C15
BATTERY GRIP
Designed for the Canon T7i and 77D
DSLR Cameras

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BG-C15 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vello BG-C15

Summary of Contents for Vello BG-C15

  • Page 1 BG-C15 BATTERY GRIP Designed for the Canon T7i and 77D DSLR Cameras...
  • Page 2 (portrait) orientation. The Vello BG-C15 is compatible with the Canon T7i and 77D DSLR cameras. It accepts up to two Canon LP-E17 rechargeable Please read through this entire manual batteries and offers an alternate shutter-release button.
  • Page 3 Keep out of reach of children. the battery pack, discontinue use immediately. Remove All images are for illustrative purposes only. the batteries, and take the device to a Vello authorized reseller. The battery level may not display properly if batteries...
  • Page 4 Overview...
  • Page 5 Shutter release button Battery tray compartment Battery tray lock Camera battery door holder Thumbwheel lock Battery slots Hand-strap mount Mounting screw Battery slot contacts Tripod socket Power contacts Battery slot locking flanges Nonslip grip Contact cap 2.5 mm shutter release cable Cable-release socket Battery tray...

  • Page 6: Attaching The Grip

    Turn the camera upside Slide the camera battery power is turned off. down, and open its battery chamber door into the chamber door. Pull gently BG-C15’s chamber door at a 45° angle until the holder for safekeeping. chamber door detaches.
  • Page 7 Insert the BG-C15’s power Rotate the locking wheel Connect the shutter release contacts into the camera’s counterclockwise until it is cable from the cable release battery chamber as shown. firmly tightened. socket on the battery grip Make sure to align the to the remote release port camera’s tripod socket with...

  • Page 8: Inserting Batteries

    Inserting Batteries Twist the battery tray’s Make sure the contacts for Insert the battery toward lock counterclockwise, and the batteries match the t h e c o n t a c t s , a n d i n remove the battery tray battery slot contacts of between the locking flanges.
  • Page 9 Repeat steps 2 and 3 for the Insert and lock the battery When removing the grip, turn off second battery. tray inside the battery grip. the camera power and remove the batteries.

  • Page 10: Removing The Batteries

    Removing the Batteries Twist the battery tray lock counterclockwise, and Remove either battery by pulling up and lifting it remove the battery tray from the grip. out of the battery tray.

  • Page 11: Specifications

    Specifications Up to two LP-E17 rechargeable li-ion batteries Power Source 32°F to 104°F (0°C to 40°C) Operating Temperature 3.9 × 5.1 × 3.2 in. (10 × 13.1 × 8 cm) Dimensions 5.1 oz. (145 g) without battery holder and batteries Weight...

  • Page 12: One-Year Limited Warranty

    To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
