BG-C9-2
BATTERY GRIP
Designed for the
Canon 5D Mark III, 5DS, and 5DS R
DSLR Cameras

Advertisement

loading
Need help?

Need help?

Do you have a question about the BG-C9-2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Vello BG-C9-2

Summary of Contents for Vello BG-C9-2

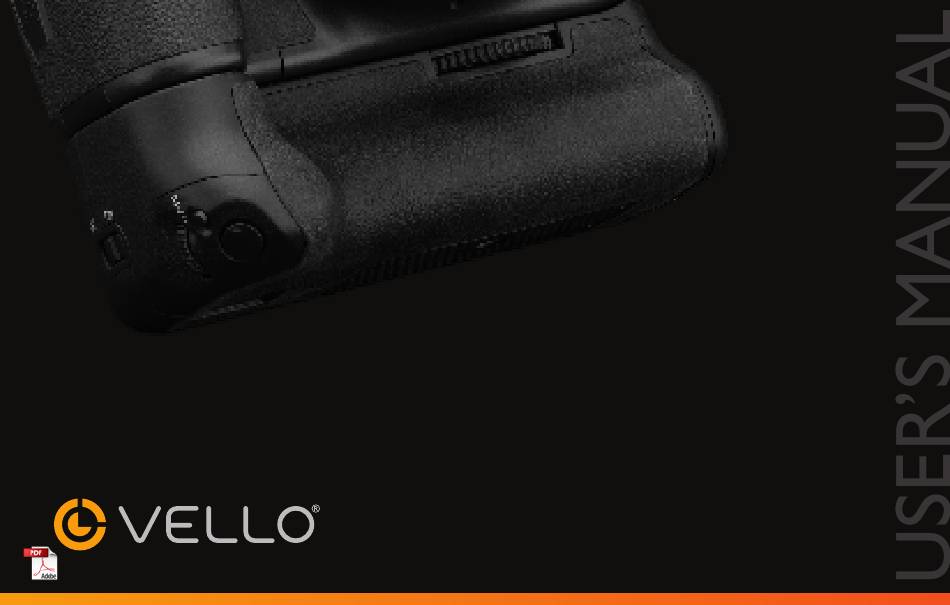

  • Page 1 BG-C9-2 BATTERY GRIP Designed for the Canon 5D Mark III, 5DS, and 5DS R DSLR Cameras...
  • Page 2 Thank you for choosing Vello The Vello BG-C9-2 battery grip offers extended shooting time and comfort when shooting in a vertical (portrait) orientation. The grip is compatible with the Canon 5D Mark III, 5DS, and 5DS R DSLR Cameras, and it accepts up to two Canon LP-E6/E6N(H) rechargeable batteries.
  • Page 3 If you notice smoke, noise, or an unusual smell from Keep out of reach of children. the battery pack, discontinue use immediately. Remove the batteries, and take the device to a Vello All images are for illustrative purposes only. authorized reseller.
  • Page 4 Overview 9 10 11...
  • Page 5 Contact cap AF point selection Control lock switch Power contacts AE lock button Hand-strap mount Mounting screw AF-ON start button Tripod socket Battery compartment lock Nonslip grip Battery slot 1 Battery compartment Shutter release button Slot 1 contacts DC coupler cord hole Multi-function button Slot 2 contacts Thumbwheel...

  • Page 6: Attaching The Grip

    Attaching the Grip Ensure that the camera is Remove the c a mer a’s Slide the chamber door turned off. battery chamber door by into the BG-C9-2’s camera sliding the latch as shown. battery door holder for safekeeping.
  • Page 7 Remove the camera’s battery, and insert the Rotate the thumbwheel in the direction of the grip’s power contacts into the camera’s battery arrow until the grip is secured to the camera. chamber.

  • Page 8: Inserting Batteries

    Inserting Batteries Turn off the camera’s Twist the battery tray’s lock, C anon L P- E6 / E6 N (H) power, and make sure the and remove the battery tray B a t t e r i e s : I nse r t t he grip’s control lock switch is from the grip.
  • Page 9 AA Batteries: Place six identical AA batteries AC Power: The Canon ACK-E6 AC Power into the A A bat ter y tray as indicated. Adapter Kit (sold separately) can be connected to supply power from an AC outlet. Push the DC coupler cable into the grip’s DC coupler cord hole, ensuring the battery tray isn’t pinching the cord.
  • Page 10 Insert and lock the battery Turn on the camera power, Note: When removing the grip, tray inside the battery grip. and switch the grip’s control turn off the camera’s power, lock to the On position. switch the grip’s control lock to Off, and then remove the batteries.

  • Page 11: Specifications

    Specifications Power Source Up to two Canon LP-E6/E6N(H) type rechargeable Li-ion batteries Six AA/LR6 Alkaline, NiMH, Lithium, or Nickel-Manganese batteries Canon AC Adapter Kit ACK-E6 (sold separately) Operating Temperature 32°F to 104°F (0°C to 40°C) Dimensions (H × W × D) 4.5 ×...

  • Page 12: One-Year Limited Warranty

    To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
