Summary of Contents for Vello BG-C10

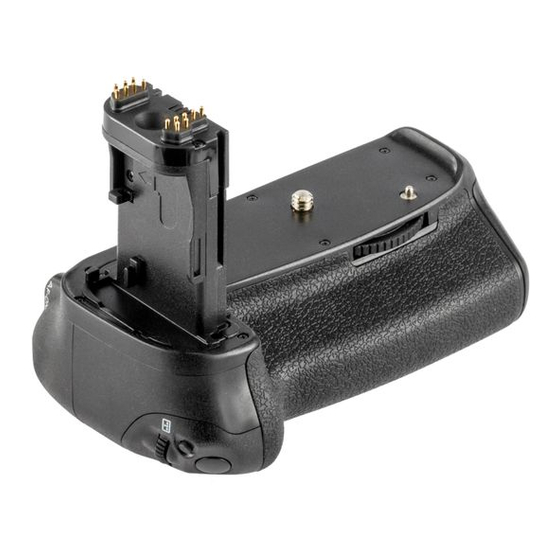

- Page 1 BG-C10 BATTERY GRIP Designed for the Canon EOS 70D, 80D, and 90D DSLR Cameras...
- Page 2 Introduction Thank you for choosing Vello and congratulations on your new BG-C10 battery grip purchase. Enjoy the many benefits that a battery grip offers such as extended shooting time and more control and comfort when shooting in a vertical (portrait) orientation.
- Page 3 Precautions The BG-C10 should only be used with compatible Remove the batteries and take the device to a Vello devices specified in this manual. authorized reseller. Only use with batteries and battery holders Turn the grip power off when not shooting recommended in this manual.
- Page 4 Overview...
- Page 5 Mounting Screw BG-C10 Grip Power ON/OFF Main Dial* Aligns with the camera’s tripod socket. Camera Battery Chamber Cover AF area selection mode button Guide Pin Holder Shutter-Release Button* Helps align the camera to the grip. Stores the camera’s battery chamber cover when the grip is mounted.
-
Page 6: Attaching The Grip
Attaching The Grip Ensure that the power is Remove battery Open the camera battery turned off on the camera from the camera battery chamber cover at a 35º and that the power switch compartment. angle gently pull is set to OFF on the battery the cover to remove it. - Page 7 Remove the protective Rotate attachment camera battery chamber cap and connect the BG- wheel in the direction cover into the BG-C10 C10 grip to the camera, shown by the arrow until it battery chamber holder while aligning the grip’s is firmly tightened.
-
Page 8: Inserting Batteries
Inserting Batteries Ensure that the power Canon LP-E6 Batteries: AA Batteries: Place six is turned off on the Insert up to two batteries batteries camera and grip. Pull the by orienting the arrow on the same type into the lever down and twist the battery toward the AA battery holder as... - Page 9 Ensure that camera power is turned off before mounting the DC coupler. Ensure that the DC cord doesn’t get pinched by the battery holder. Slide the battery holder Switch the grip power Household Power Outlet: into the grip, twist the to ON and then turn To mount the Canon lever clockwise to lock,...
-
Page 10: Specifications
Specifications Power Source One or two Canon LP-E6 rechargeable Li-ion batteries Six AA/LR6 Alkaline, Ni-MH, Lithium or Nickel-Manganese batteries Works with the Canon AC Adapter Kit (ACK-E6) Operating Temperature 32º – 104° F (0 – 40° C) Dimensions 5.7" × 4.4" × 3.4" (145.6 × 111.3 × 85.3 mm) Weight 10.4 oz. -
Page 11: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. - Page 12 www.vellogear.com All other trademarks are the property of their respective owners.
