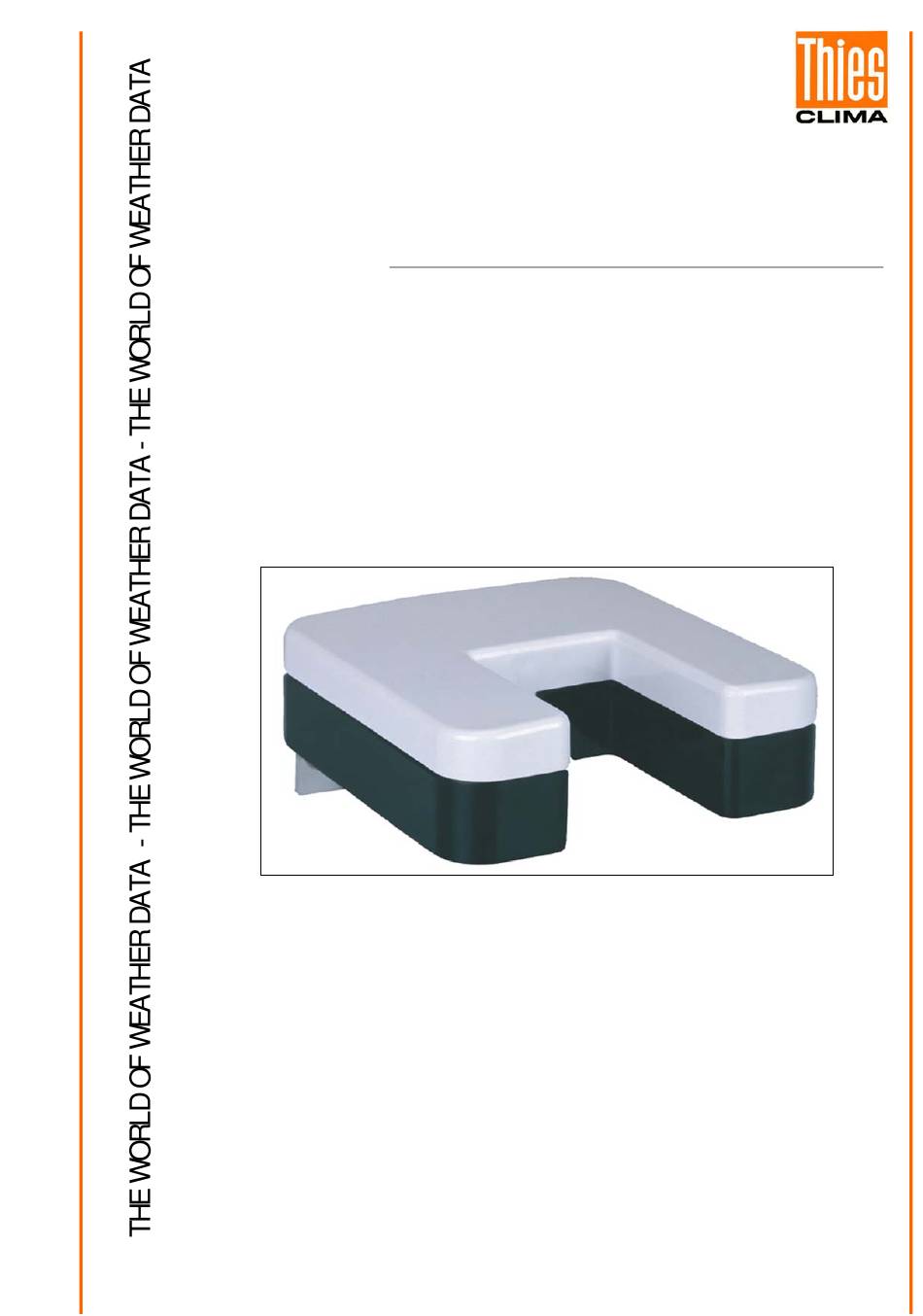

- Page 1 Instruction for use 021197/11/09 Precipitation Monitor 5.4103.10.000, 5.4103.10.700 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany Box 3536 + 3541 37025 Göttingen Phone ++551 79001-0 Fax ++551 79001-65 www.thiesclima.com info@thiesclima.com...
- Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - Endangering of persons by electrical or mechanic effect - Damages at objects •...
-
Page 3: Table Of Contents
Contents Model ............................4 Application ..........................4 Mode of Operation ........................4 Installation..........................4 Mechanical Mounting ......................5 Electrical Mounting for Precipitation with Cable Gland............5 Electrical Mounting for Precipitation with Plug Connection ..........6 4.3.1 Plug Mounting....................... 6 Taking into Operation......................... 6 Maintenance .......................... -
Page 4: Model
1 Model Order - No. Measuring value Electrical Operating Connection Output Voltage 5.4103.10.000 Precipitation status Relay 24 V AC/DC Cable gland 5.4103.10.700 Precipitation status Relay 24 V AC/DC 7- pole plug connection 2 Application The precipitation monitor transmits signals to determine the beginning and the end of precipitation and the duration of the period of precipitation as required by meteorological services. -
Page 5: Mechanical Mounting
Remark: In order to achieve an optimal electro-magnetic immunity (> 20 V/m) please use shielded cable. 4.1 Mechanical Mounting The mounting system of the instrument is designed for attachment to a mast. When mounting make sure, that the precipitation can easily reach of the sensor field, and that the instrument, while operating, is not exposed to strong vibrations or shocks. -
Page 6: Electrical Mounting For Precipitation With Plug Connection
4.3 Electrical Mounting for Precipitation with Plug Connection The electrical connection is carried out by plug in accordance with the connecting diagram. 4.3.1 Plug Mounting Applies only to instruments with connection „plug“. Coupling socket, Typ:Binder, Serial 423, EMC with cable clamp Cable connection: without cable shield Cable- pull- relief 1. -
Page 7: Setting Of Incidences And Switch-Off Delay
7 Setting of Incidences and Switch-off Delay In the factory a setting is carried out for 12 drop incidences within 50 seconds with a switch- off delay of 25 seconds. If this setting is to be changed, the switch-off delay, and the number of drop incidences are set through the DIP-switches acc. -
Page 8: Connecting Diagram
8 Connecting Diagram Order-No. precipitation 5.4103.10.000 switch loading power supply earth max. 230V AC/DC 24V AC/DC max. 4A AC/DC max. 1000VA (Ohm) Order-No. Plug connection 5.4103.10.700 View on the Precipitation soldering side of y es the counter plug. 7 pin Binder Plug... -
Page 9: Technical Data
: none Switch-off delay : 25 ... 375 s ; see „Adjusting incidences and switch-off delay“ Contact loading (relay) with model 5.4103.10.000 : max. 230 V AC; 4 A with model 5.4103.10.700 : max. 60 V AC; 4 A : 24 V AC/DC ± 15 %... -
Page 10: Dimension Diagram
11 Accessories Power Supply Unit 9.3388.00.002 The power supply unit serves for the current supply of the precipitation monitor, order-no. 5.4103.10.000. It supplies the necessary operation voltage for the electronics and the heating. Primary : 230 V / 50 Hz... -
Page 11: Ec-Declaration Of Conformity
A D O L F T H I E S G m b H & C o. K G Manufacturer: Hauptstr. 76 D-37083 Göttingen Tel.: (0551) 79001-0 Fax: (0551) 79001-65 email: Info@ThiesClima.com Description of Product: Precipitation Transmitter Article No. 5.4103.10.000 5.4103.10.012 5.4103.10.700 5.4103.20.041 5.4103.20.741 5.4103.30.000 5.4103.30.700 specified technical data in the document: 021324/10/04; 021196/12/04; 021334/04/05; 021469/08/05... - Page 12 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany P.O. Box 3536 + 3541 37025 Göttingen Phone ++551 79001-0 Fax ++551 79001-65 www.thiesclima.com info@thiesclima.com - Alterations reserved- 12 - 12 021197/11/09...
