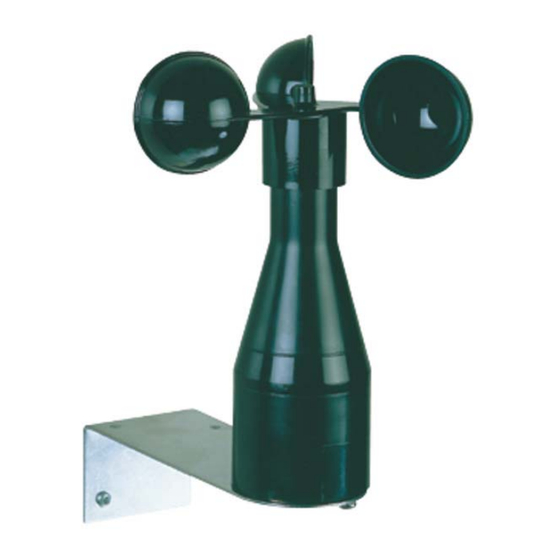

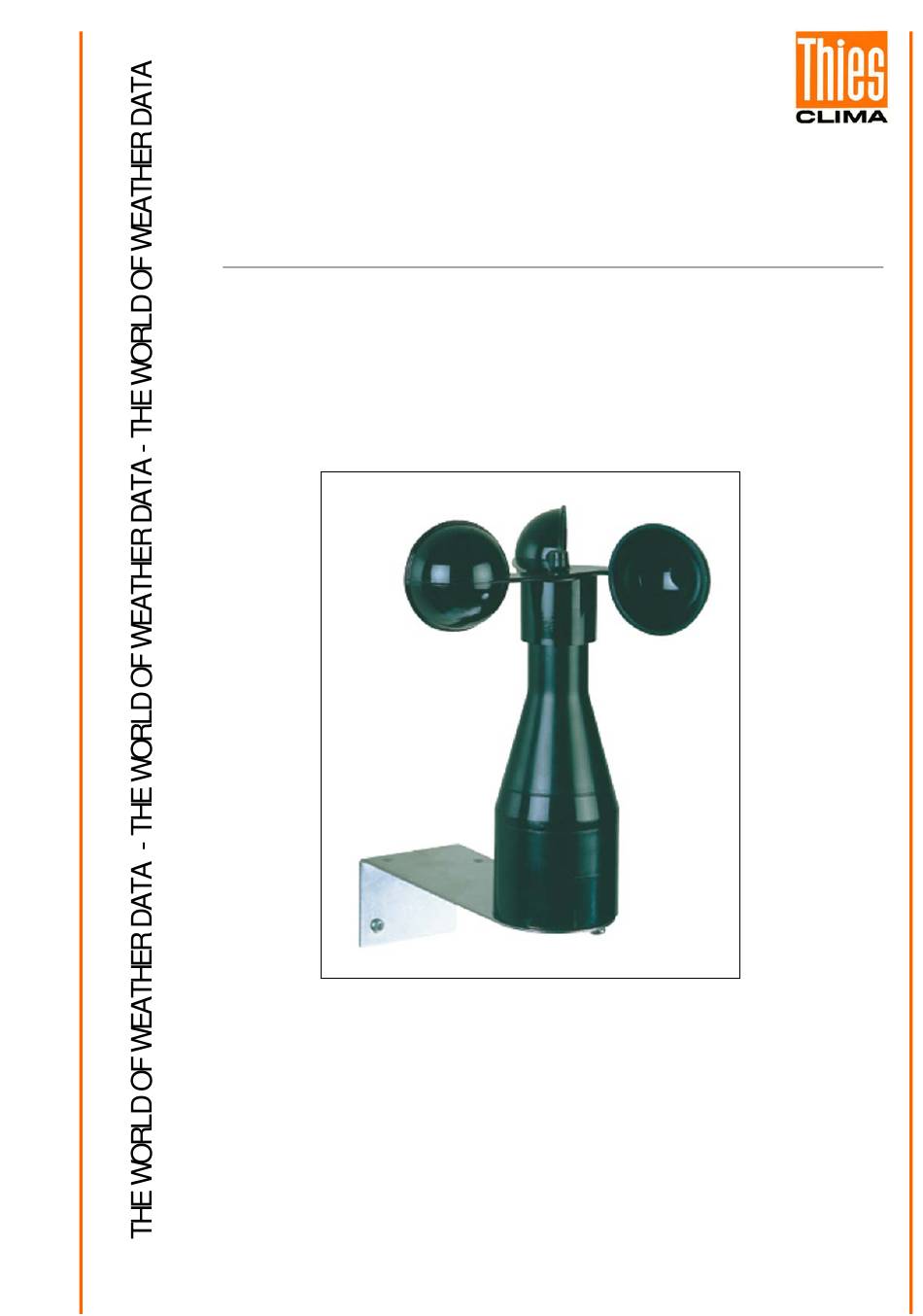

- Page 1 Instruction for Use 021150/02/12 Small Wind Transmitter 4.3515.5x.xxx 4.3515.6x.xxx ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com info@thiesclima.com...
- Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - Endangering of persons by electrical or mechanic effect - Damages at objects •...
-
Page 3: Table Of Contents
Contents Models available ........................4 Application ..........................4 Construction and Mode of Operation ..................4 Recommendation Side Selection/Standard Installation ............. 4 Installation..........................5 Mechanical Mounting ......................5 Electrical Mounting ......................5 Connecting Diagram ........................6 Maintenance ..........................6 Technical Data ........................... 6 Dimension diagram ........................ -
Page 4: Models Available
1 Models available Order-No. Meas. range Output Heating Connection Housing- colour 4.3515.50.000 <0.9...40 m/s 100Hz @ 40m/s 3 m cable LiYY 4 x 0.25 mm² white (typ. 2,5Hz / ms 4.3515.50.100 <0.9...40 m/s 100Hz @ 40m/s 3 m cable LiYY 4 x 0.25 mm² black (typ. -
Page 5: Installation
transmitter should be set up a height where local obstacles do not influence the measured values to any significant extent (approx. 6 - 10 m above the obstacle). The wind transmitter should be set up in the centre of flat roofs and not on the roof side in order to avoid bias in the direction (privileged directions). -
Page 6: Connecting Diagram
6 Connecting Diagram Note: The small reed contact wind transmitter w/o heating is dispensed with 3 + 4 Kabel 1 revolution heating = 2 pulses 7 Maintenance After proper mounting the instruments works maintenance-free. Heavy pollution can clog up the slit between the rotating and the stationary parts of the wind transmitter. -
Page 7: Dimension Diagram
9 Dimension diagram 7 - 10 021150/02/12... -
Page 8: Ec-Declaration Of Conformity
10 EC-Declaration of Conformity Document-No.: 000410 Month: 02 Year: 12 A D O L F T H I E S G m b H & C o. K G Manufacturer: Hauptstr. 76 D-37083 Göttingen Tel.: (0551) 79001-0 Fax: (0551) 79001-65 email: Info@ThiesClima.com Description of Product: Small Wind Transmitter, Photo Wind Transmitter Article No. - Page 9 9 - 10 021150/02/12...
- Page 10 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany P.O. Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com info@thiesclima.com - Alterations reserved- 10 - 10 021150/02/12...
