Summary of Contents for Thies CLIMA 4.3515.30.000

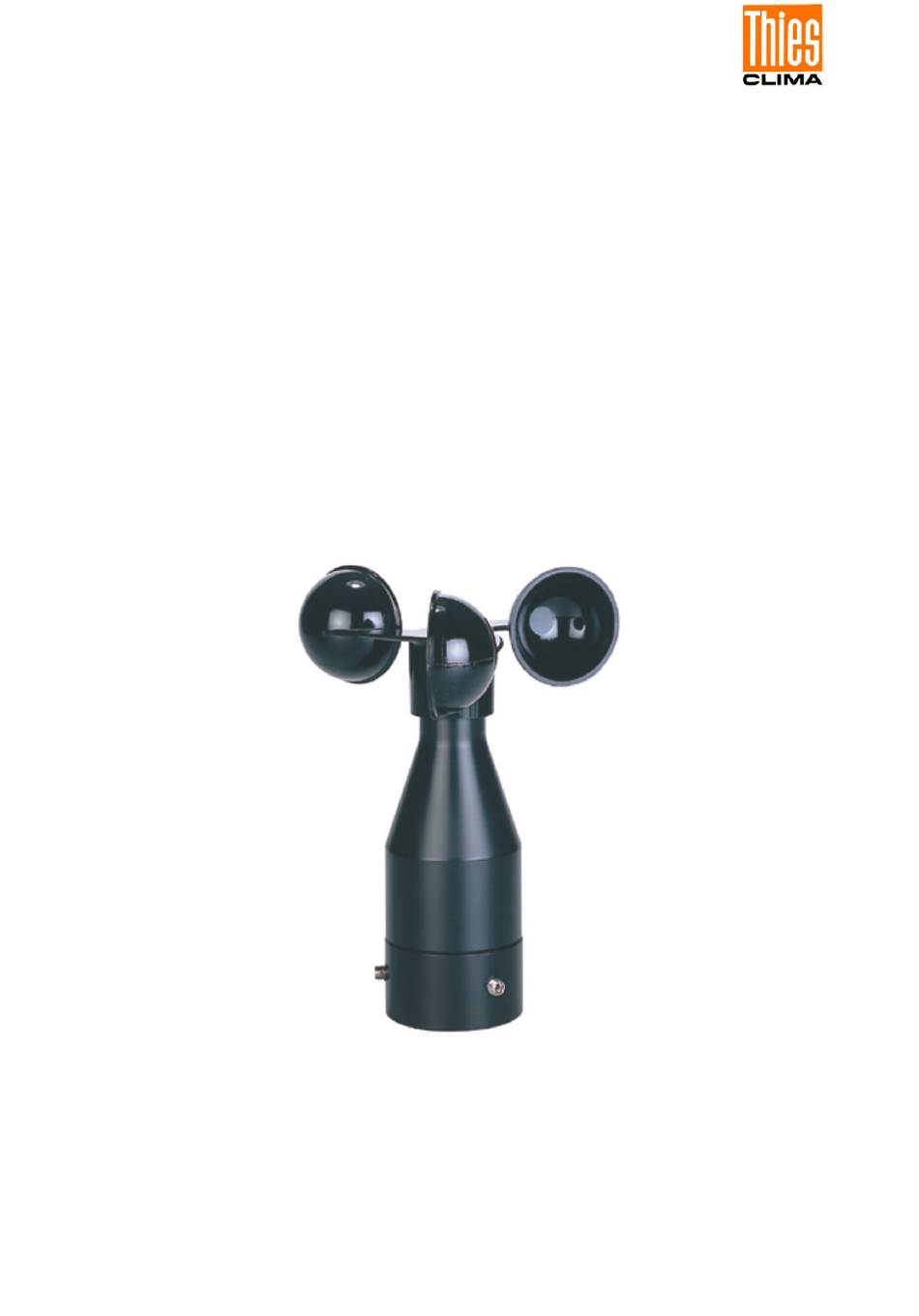

- Page 1 Small Wind Transmitter Instruction for Use 4.3515.30.000 Dok. No. 020783/01/21 T H E W O R L D O F W E A T H E R D A T A...
- Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - endangerment of persons by electrical or mechanical effect - damage to objects •...
-
Page 3: Table Of Contents
Table of contents Models ..........................4 Application ........................4 Mode of Operation ......................4 Recommendation Site Selection /Standard Installation ........... 4 Installation........................5 Mechanical Mounting ....................5 Electrical Mounting ....................5 Maintenance ........................5 Connecting Diagram ....................... 6 Technical Data ........................ 6 Dimension diagram ...................... -
Page 4: Models
1 Models Order-No. Meas. Range Connection / Cable type Cable length 4.3515.30.000 0,5 ... 40m/s cable LiYY 2 x 0,25mm² Included in delivery 1 x Small Wind Transmitter 1 x Operating Instructions 2 Application The wind transmitter serves for the detection of the horizontal wind speed. The measurement values are output as potential-free pulses. -
Page 5: Installation
5 Installation Remark: When using fastening adapters (angle, traverses, etc.) please take a possible effect by turbu- lences into consideration. Attention: Storing, mounting and operation under weather conditions is permissible only in vertical position, as otherwise water can get into the instrument. 5.1 Mechanical Mounting The instrument can be mounted to a 50mm long tube of R 1"... -
Page 6: Connecting Diagram
7 Connecting Diagram Reed - Switch 100 Ohm Cable 8 Technical Data Measuring range 0,5 ... 40m/s Resolution 0,8m wind run Accuracy ± 0.5m/s or ± 5% of measuring value Load max. 60m/s Electr. output 50Hz at 40m/s Contact Reed contact Contact load 0,5W;... -
Page 7: Dimension Diagram
9 Dimension diagram 10 Accessories The following accessories are available for the wind transmitter Traverse 4.3171.20.000 Clamping range: Ø 30 ... 50mm For mounting the wind Sensor distance: 0,5m transmitter and wind di- Material: Aluminium rection transmitter jointly onto a mast Lightning rod 4.3100.99.000 Height: 0,8m... -
Page 8: Ec-Declaration Of Conformity
Tel.: (0551) 79001-0 Fax: (0551) 79001-65 email: Info@ThiesClima.com This declaration of conformity is issued under the sole responsibility of the manufacturer Description of Product: Small Wind Transmitter, Photo Wind Transmitter Article No. 4.3515.30.000 4.3515.50.100 4.3515.50.109 4.3515.41.110 4.3515.50.000 4.3515.50.061 4.3515.51.000 4.3515.51.061 4.3515.50.115... - Page 9 © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 020783/01/21 Phone +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com · www.thiesclima.com 9 - 10...
- Page 10 Please contact us for your system requirements. We advise you gladly. ADOLF THIES GMBH & CO. KG Meteorology and environmental metrology Hauptstraße 76 · 37083 Göttingen · Germany Phone +49 551 79001-0 · Fax +49 551 79001-65 info@thiesclima.com www.thiesclima.com © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 020783/01/21 Phone +49 551 79001-0 ·...
