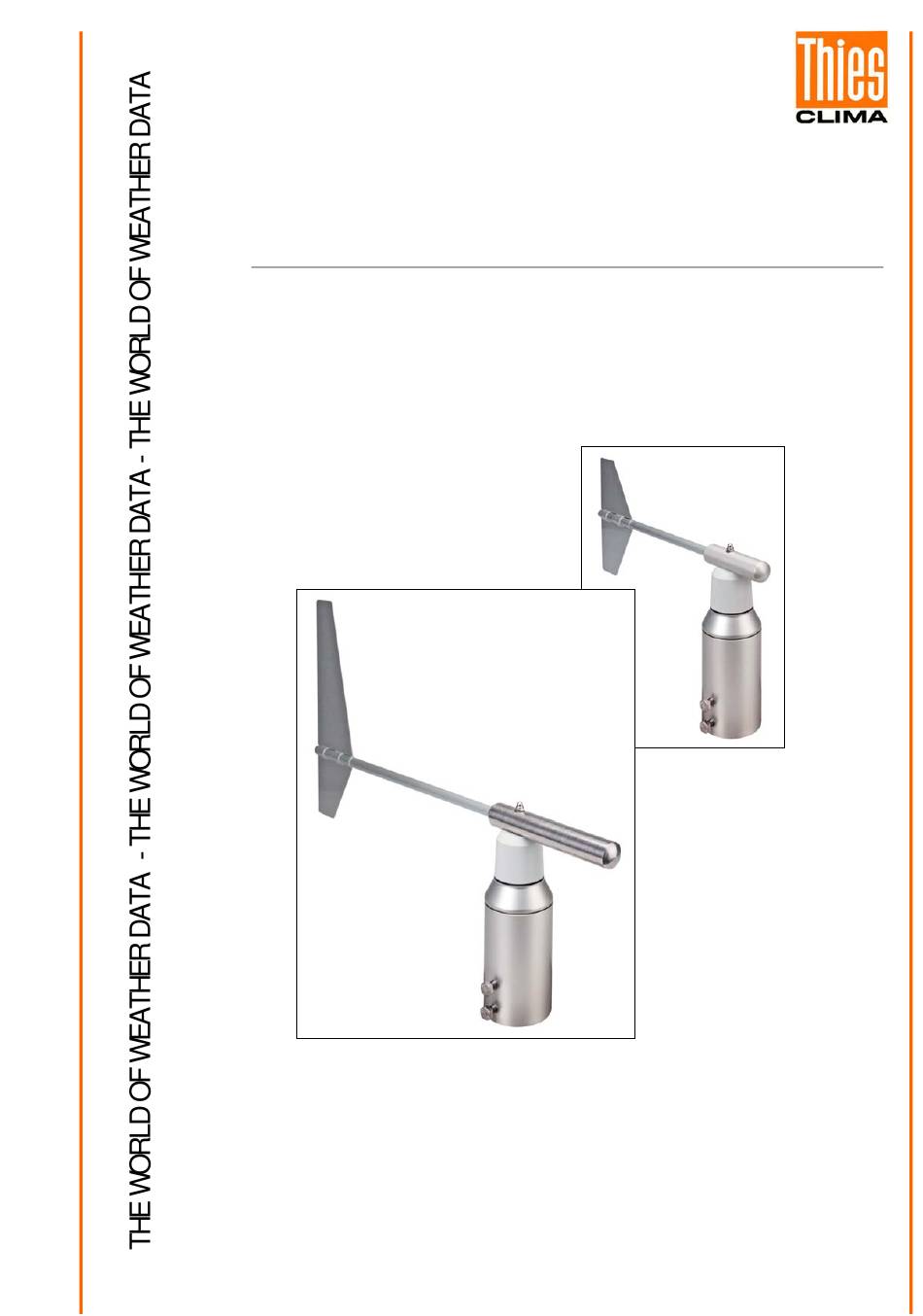

- Page 1 Instruction for Use 021262/11/07 Wind Direction Transmitter - with potentiometer output 4.3120.22.xxx ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com info@thiesclima.com...
- Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - Endangering of persons by electrical or mechanical effect - Damage to objects •...
-
Page 3: Table Of Contents
Meas. range Order-No. Electrical Output Model Potentiometer 4.3120.22.002 0 ... 360° Standard 400 Ω ± 1% Potentiometer Standard 4.3120.22.012 0 ... 360° 2000 Ω ± 1% Potentiometer Standard 4.3120.22.018 0 ... 358° 400 Ω ± 1% Potentiometer 4.3125.22.712 0 ... 360°... -
Page 4: Range Of Application
The wind direction transmitters are shipped in semi-mounted state, in order to avoid transport damages and to keep the package small. The following parts are included in delivery: 1 x wind direction transmitter, pre-mounted 1 x cup star 1 x wind vane 1 x connecting plug 2 Range of application The wind direction transmitter is designed for the acquisition of the horizontal wind direction. -
Page 5: Installation
5 Installation Attention: Storing, mounting and operation under weather conditions is permissible only in vertical position, as otherwise water can get into the instrument. Remark: When using fastening adapters (angle, traverses, hangers etc.) please take a possible effect by turbulences into consideration. Remark: A Lightning Rod Order-No. -
Page 6: Mounting The Wind Direction Transmitter
5.2 Mounting the Wind Direction Transmitter The Wind Direction Transmitter can be mounted onto a tube of R 1 4 8,3 mm), 50 mm long. 1/2" The internal diameter of the mounting tube must be at least 40 mm since the transmitter will be plugged into an electrical system from below. -
Page 7: Wiring Diagram
Therefore, an additional protective resistance Is strongly recommended . Order - no. Poti 4.3120.22.002 Heating 4.3120.22.012 20 W 4.3120.22.018 4.3120.22.712 8 pole Euchner plug 1 2 3 A a R e E Wind direction •... -
Page 8: Technical Data
8 Technical Data 4.3120.22.002 4.3120.22.018 4.3120.22.712 4.3120.22.012 Meas. range 0... 360° 0… 358° 0... 360° Resolution 1° 1° 1° Accuracy ± 2° ± 3° ± 2° Damping ratio acc. to > 0.3 > 0.3 ------ ASTM D 5366-96 Start-up <0,6 m/s at 90° wind vane <0,6 m/s at 90°... -
Page 9: Dimensions
9 Dimensions Ø 70 Ø 50 Ø 36 Figure 1: Dimension 4.3120.22.0xx Ø 70 Ø 50 Ø 36 Figure 2: Dimension 4.3120.22.712 9 - 12 021262/11/07... -
Page 10: Ec-Declaration Of Conformity
Tel.: (0551) 79001-0 Fax: (0551) 79001-65 email: Info@ThiesClima.com Description of Product: Wind Transmitter classic Article No. 4.3120.22.002 4.3120.22.012 4.3120.22.018 4.3120.22.712 specified technical data in the document: 020811/11/07 The indicated products correspond to the essential requirement of the following European Directives and Regulations:... - Page 11 11 - 12 021262/11/07...
- Page 12 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany P.O. Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com info@thiesclima.com - Alterations reserved- 12 - 12 021262/11/07...
