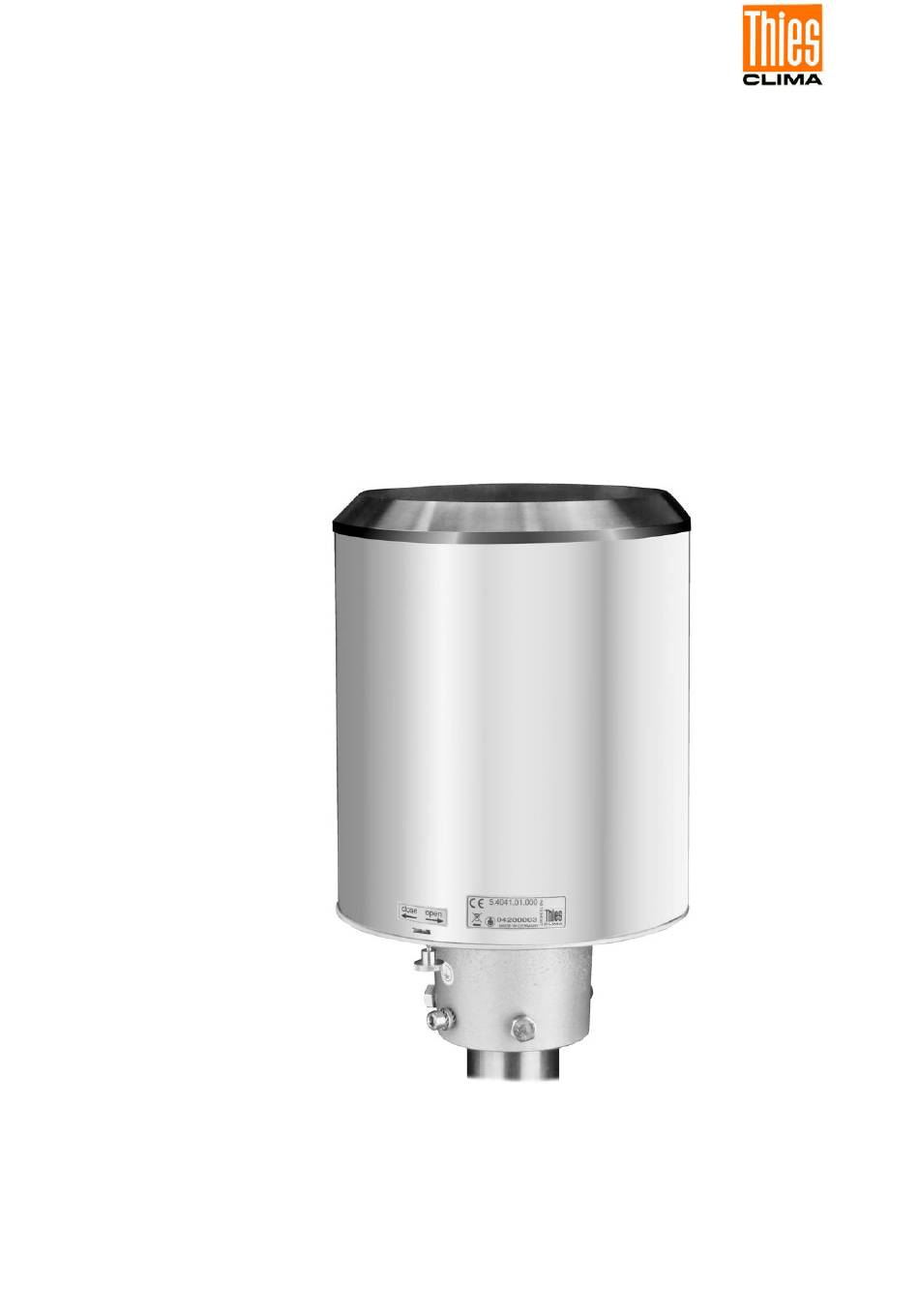

- Page 1 Precipitation Transmitter Weighing scale principle Instruction for Use 5.4041.x1.00x Dok. No. 021857/01/21 T H E W O R L D O F W E A T H E R D A T A...
- Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - endangerment of persons by electrical or mechanical effect - damage to objects •...
-
Page 3: Table Of Contents
Table of Contents Available Models ......................4 Application ........................5 Construction and Mode of Operation................6 Measured Values and Electrical Output ..............7 Heating ........................8 Recommendations Side Selection / Standard Installation ..........8 Installation........................9 Mechanical Mounting ....................9 Electrical Mounting .................... -
Page 4: Available Models
1 Available Models Order no. Heating Power Heating Connection Signal output supply supply type 5.4041.01.000 Yes 9,8 … 32VDC 24VDC / Plug RS485 ASCII- 140 W Protocol,-, PULSE OUTPUT 9,8 … 32VDC 24VDC / 5.4041.01.001 Yes Plug RS485 140 W MODBUS RTU, PULSE OUTPUT 5.4041.11.000 No... -
Page 5: Application
2 Application The device combines cutting-edge weighing technology in a very small space with a self- emptying collection vessel. The system provides excellent resolution and high precision. Even minute drops will be measured. The weighing precipitation transmitter is suited for use in meteorological and hydrological monitoring networks as well as applications in the area of environmental monitoring. -
Page 6: Construction And Mode Of Operation
3 Construction and Mode of Operation Measuring edge Housing Locking screw Connection for sensor Connection for heating Fastening screw Stand pipe Figure 1: Construction The precipitation transmitter measures the quantity and intensity of precipitations. The precipitation transmitter combines cutting-edge technology with a self-emptying collection vessel. -
Page 7: Measured Values And Electrical Output
3.1 Measured Values and Electrical Output The precipitation transmitter measures/calculates the following values: Quantity of precipitation (pulse) The precipitation quantity is issued in real time with a maximum resolution of 0.01mm via the pulse output. Intensity of precipitation of the last minute (RS485-interface) The precipitation transmitter performs six measurements per minute and adds these values up in a moving sum. -
Page 8: Heating
3.2 Heating For applications in regions with seasonally or permanently low temperatures, the precipitation transmitter is available in a heated version. The internal heating is divided into two parts: a funnel heating along the inner surface of the catch funnel of the precipitation transmitter melts solid precipitations and the outlet heating below the protection grille and the collection vessel prevents complete freezing of the outlet. -
Page 9: Installation
5 Installation Please note: Electrical work has to be carried out by skilled staff. The device may only be opened in dry surroundings. Avoid damaging the exposed electronic parts. Open the device only when power supply is off. 5.1 Mechanical Mounting Please note: The enclosed tipping bucket balance may only be operated with this precipitation transmitter. -
Page 10: Figure 2: Open The Device
3. Open the device. 4. Unscrew the thumb screw at the bottom. 5. Grasp upper edge of the funnel and at the mast holder and turn the upper part counter-clockwise (open ). 6. Lift the housing off carefully, watch out for the clamping connector of the heating. -
Page 11: Figure 3: Inner Parts And Protective Cylinder
7. Remove the clamping connector of the heating. 8. Put the housing aside. 9. Lift off the internal protective cylinder. Internal protective cylinder Inner parts without collection vessel Spirit level Figure 3: Inner parts and protective cylinder © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021857/01/21 Tel. -
Page 12: Figure 4: Installation Of The Collection Vessel
Installation of the collection vessel Unpack the collection vessel Push the collection vessel with the side where the magnet is placed (red marking) towards the Reed contact (red marking), against the bearing spring. Insert the other side of the axle into the other side of the bearing. -
Page 13: Figure 5: Re-Assembly Of The Device
Re-assembly of the device 19. Re-insert the internal protective cylinder carefully. 20. Connect the clamping connector of the heating. 21. Set the housing back on the base plate – place embossed parts into the recesses. 22. Push the housing downwards and then turn it clockwise into the direction „close“... -
Page 14: Figure 6: Dirt Trap
24. Insert the enclosed dirt trap into the centre of the funnel. The cap on the dirt trap also serves as protection against coarse dirt. The dirt trap stands loosely in the centre of the funnel. Figure 6: Dirt trap ©... -
Page 15: Electrical Mounting
5.2 Electrical Mounting Type of cable Plug Cable specification Signal cable 8-wire – 214127 PUR, shielded, 8 x 0.25mm² (Ø 6mm) Heating cable 4-Wire – 214135 PUR, 4x1.5mm² (Ø 8,4mm) To avoid malfunctions, all wires which are not used have to be connected to an unused terminal or they have to be insulated. -
Page 16: Power Connection And Signal Transmission
Signalling View, mating plug cable plug 8- pin-214127 Heating cable View, mating plug plug 4-pin – 214135 5.4 Power Connection and Signal Transmission For the connection of the measuring system to a data acquisition device as e. g. the data logger, a connection cable with an M12-plug is required. -
Page 17: Connection Order
5.4.1 Connection Order Connections have to be carried out in the following order: 1. Connect external power connection of heating. 2. Connect sensor cable. The maximum possible distance between measuring device and data recording device depends on the interface used. The standards applicable to the values obtained with RS485 (1000 m) apply. -
Page 18: Interfaces
5.6 Interfaces The precipitation transmitter is equipped with the following interfaces: ◦ Serial interface: ◦ RS485, (half duplex), ASCII- and MODBUS RTU-protocol, ◦ Pulse output 1 precipitation: ◦ 1 galvanically isolated open collector output ◦ Precipitation output according to factory-default resolution and closing time; on request, the factory setting can be modified to customer specifications. -
Page 19: Factory Setting
5.7 Factory Setting Relating to connection diagram (5.2. Electrical assembly), factory default settings. Order no. Heating Resolution Closing Protocol Modbus ID Baud- Frame time rate format 5.4041.01.000 ASCII MODBUS 5.4041.01.001 0.1mm 300ms 19200Bd 5.4041.11.000 ASCII MODBUS 5.4041.11.001 Uninsulated pulse output as status output Galvanically isolated pulse output 6 Serial Communication 6.1 RS485-Interface... - Page 20 Addressing is not possible in case of the precipitation transmitter, for this reason, it may not be used in the bus system. It may only be used as single measuring system. (Bus operation s.h. MODBUS-RTU). When a command containing a parameter is transmitted, the parameter is checked. When it is valid, the parameter is saved and acknowledged in the “echo telegram”.
-
Page 21: Overview Over Commands
6.2.1 Overview over Commands Command Description Query of measured values with time interval Output error string Output device information Query of measured values 6.2.1.1 Command a <STX>a<CR><LF> Query of measured values with time interval Description: With this command, precipitation intensities relating to a defined time interval, can be issued. -
Page 22: Command I
6.2.1.3 Command i Description: With this command, production data can be queried. <STX>i<CR><LF> Output device information Serial number of device Output: Board version Firm ware version Cell Serial number of weighing cell Reply telegram: No;P;S;cell;<CR><LF> 6.2.1.4 Command m <STX>m<CR><LF> Query of measured values Description: The command triggers the transmission of current measured values. -
Page 23: Measured Values (Input Register)
6.3.1 Measured Values (Input Register) The measured values occupy 16 or 32bits, i. e. 1 or 2 register addresses. Their allocation is shown in the following table: Register Parameter name Unit Multi- Description Data type address plicator 31001 Volume of precipitation 1 decimal 31101 Volume of precipitation... -
Page 24: Mapping Register Modbus
6.3.3 Mapping Register Modbus Register Content Unit Factor Description Data address type register 46001 31001 Register Total quantity of address precipitation 46002 31101 Register Total quantity of address precipitation (High-WORD) 46003 31102 Register Total quantity of address precipitation (Low-WORD) 46004 31103 Register Quantity of precipitation... -
Page 25: Pulse Output
Note: The value overflow of the precipitation sum has to be considered in the calculation of the difference. The value overflow occurs at 60000g collected liquid. For sensors with a catch area of 200cm², this results in a value overflow at 3000mm. 6.4 Pulse Output Each pulse is equivalent to a defined quantity of measured precipitation. - Page 26 Note: When cleaning the collection vessel, take care to avoid damages. Do not clean the measuring system and the collection vessel with a steel brush, similar gadgets or aggressive cleaning agents. Troubleshooting Heating was switched off after the device had been set up. (Error string: “Error heating”...
-
Page 27: Technical Data
8 Technical Data Description Value General Types of precipitation which can be Liquid (solid, mixed - heated version) measured Measuring principle Weighing with automatic self-emptying function Catch 200cm² Measuring range (quantity) without limitation (0.005…∞mm) Resolution (quantity) 0.001mm (pulse output: 0.01mm) Precision (quantity) <... -
Page 28: Accessories (Optional)
Signal output Pulse output 1 precipitation Galvanically isolated, Open-Collector Supply voltage max. 24V DC Pulse power max. 0.05A Power consumption max. 0.5W Pulse output 2 - heating Open-Collector Supply voltage max. 24V DC Pulse power max. 0.1A Power consumption max. 0.5W Standards WMO-No. -
Page 29: Dimension Diagram
10 Dimension Diagram Figure 8: Dimension Diagram © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021857/01/21 Tel. +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com ·www.thiesclima.com Seite 29 von 32... -
Page 30: Ec-Declaration Of Conformity
11 EC-Declaration of Conformity Document-No.: 000908 Month: 01 Year: 21 A D O L F T H I E S G m b H & C o. K G Manufacturer: Hauptstr. 76 D-37083 Göttingen Tel.: (0551) 79001-0 Fax: (0551) 79001-65 email: Info@ThiesClima.com This declaration of conformity is issued under the sole responsibility of the manufacturer... - Page 31 © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021857/01/21 Tel. +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com ·www.thiesclima.com Seite 31 von 32...
- Page 32 Sprechen Sie mit uns über Ihre Systemanforderungen. Wir beraten Sie gern. ADOLF THIES GMBH & CO. KG Meteorologie und Umweltmesstechnik Hauptstraße 76 · 37083 Göttingen · Germany Tel. +49 551 79001-0 · Fax +49 551 79001-65 info@thiesclima.com www.thiesclima.com © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021857/01/21 Tel.
