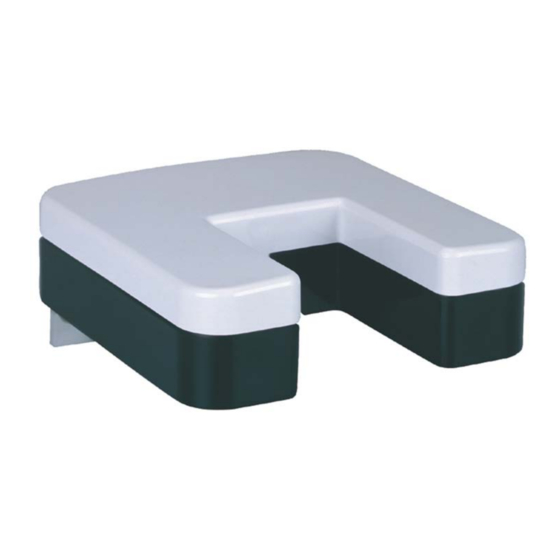

Precipitation Monitor
Instruction for use
5.4103.1x.xxx; 5.4103.31.000
Dok. No. 021197/07/19
T H E W O R L D O F W E A T H E R D A T A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5.4103.1 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Thies CLIMA 5.4103.1 Series

Summary of Contents for Thies CLIMA 5.4103.1 Series

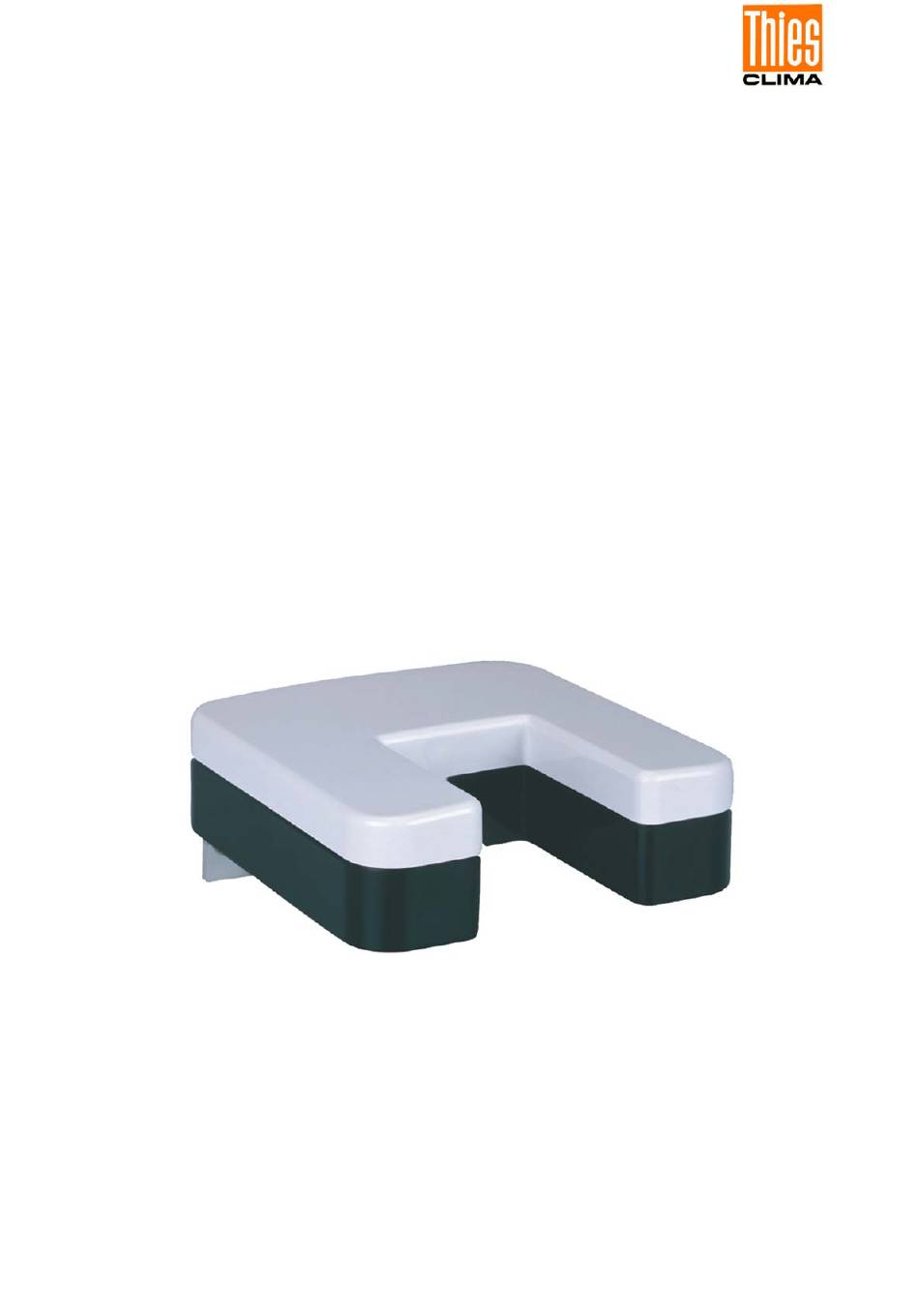

  • Page 1 Precipitation Monitor Instruction for use 5.4103.1x.xxx; 5.4103.31.000 Dok. No. 021197/07/19 T H E W O R L D O F W E A T H E R D A T A...
  • Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - endangerment of persons by electrical or mechanical effect - damage to objects •...

  • Page 3: Table Of Contents

    Inhaltsverzeichnis Models available ......................4 Application ........................4 Mode of Operation ......................5 Definition to the Precipitation Status / Relay Output ........... 6 Definition to the Precipitation Event / Optocoupler Output ......... 6 Installation........................6 Mechanical Mounting ....................7 Electrical Mounting for Precipitation Sensor with Cable Gland ........7 4.2.1 Connector for Precipitation Monitor with factory-connected Cable .......

  • Page 4: Models Available

    1 Models available Article - Nr. Measuring Electrical Operating Heating Equipment / value Output Voltage Connection -Relay Terminal strip and 5.4103.10.000 Precipitation 12…28V AC/DC cable gland. -Optocouplers mode A status 5.4103.10.700 Precipitation -Relay 7 pole plug connection. 12…28V AC/DC -Optocouplers mode A status -Terminal strip and...

  • Page 5: Mode Of Operation

    3 Mode of Operation Precipitations in the form of drizzle, rain, snow, or hail are acquired by a light barrier system, and trigger a switch signal. An integrated event filter suppresses the triggering of the switch signal with accidental single events, such as leafs, bird droppings, insects etc.

  • Page 6: Definition To The Precipitation Status / Relay Output

    Housing The housing consists of polycarbonate, the support of stainless steel. A special coating serves for reducing measurement errors which might arise by drop formation at the housing in the range of the measured distance. This coating must not be removed.

  • Page 7: Mechanical Mounting

    4.1 Mechanical Mounting 5.4103.10.xxx Area of the The operating position of the precipitation coating monitor is horizontal. The mounting system of the instrument is designed for attachment to a mast. When mounting make sure, that the precipitation can easily reach the sensor field, and that the instrument, while operating, is not exposed to strong vibrations or shocks.

  • Page 8: Connector For Precipitation Monitor Without Factory-Connected Cable

    4.2.2 Connector for Precipitation Monitor without factory-connected Cable For: 5.4103.10.000, 5.4103.11.000, 5.4103.10.112, see circuit diagram in chapter 4. Process: Remove 5 screws at the bottom side of the precipitation monitor. Remove upper part (cover). The connecting terminals are the freely accessible. Insert a respective prepared cable from the bottom through the cable glands situated in the housing bottom, and connect it to the connecting terminals and shield connector, acc.

  • Page 9: Connection Diagramm

    4.2.4 Connection Diagramm Note: The cable shield must only be placed on the side of the power supply. Article-No. 5.4103.10.000 5.4103.11.000 © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021197/07/19 Tel. +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com ·www.thiesclima.com Seite 9 von 20...
  • Page 10 Article-No. Polbild mit Sicht auf Lötanschluss des 5.4103.10.700 Gegenstecker Article-No. 5.4103.10.112 Heating ON /OFF: • Heating ON = the contact is closed. • Heating OFF = the contact is open. © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021197/07/19 Tel.

  • Page 11: Taking Into Operation

    Article-No. 5.4103.31.000 Figure: Instrument with connected cable. Cable type: 7 x 0,25LIYCY, UV- resistant, Ø 6mm. Figure status: instrument power-off or precipitation „yes“. 5 Taking into Operation After the electrical connection has been established, and the case has been screwed, the operating voltage can be switched on.

  • Page 12: Settings

    Remark: Events can, possibly, be activated with the cleaning work; they should be considered then with the evaluation / further processing. 7 Settings 7.1 Setting of Incidences and Switch-off Delay The criterions of signal output for start and end of the precipitation are factory- set.

  • Page 13: Dip-Switch Setting: 5.4103.10.000 / 700, 5.4103.11. 000, 5.4103.10. 112

    7.2 DIP-Switch Setting: 5.4103.10.000 / 700, 5.4103.11. 000, 5.4103.10. 112 DIP1- switch DIP2- switch Function: off delay Function: drop incidences-filter Time Drops (sec) • Grey marked squares = factory settings. • DIP – switch adjustment „OFF, OFF, OFF, OFF“: not defined. 7.3 DIP-Switch Setting: 5.4103.31.000 DIP1- switch DIP2- switch...

  • Page 14: Setting Of The Heating Mode

    7.4 Setting of the Heating Mode Heating mode is factory-set. If the factory-setting has to be changed due to special ambient conditions this can be done by means of solder bridges. This procedure should be carried out by the manufacturer. 8 Technical Data •...

  • Page 15: Dimension Drawing

    Heating Two-level-controller. Control approx. 8°C. temperature 0,1K. Max. 0,5A @ 12V, max. 1A @ 25V. Hysteresis Power Ambient temperature -30 ... +60°C. Protection IP 65 acc. to DIN 40050. Weight 0.4kg. Connection See model. 9 Dimension drawing 5.4103.10.000 5.4103.10.112 5.4103.31.000 ©...
  • Page 16 5.4103.10.700 5.4103.11.000 © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021197/07/19 Tel. +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com ·www.thiesclima.com Seite 16 von 20...

  • Page 17: Accessories (Optional)

    10 Accessories (Optional) Power Supply Unit 9.3388.00.002 The power supply unit serves for the current supply of the precipitation monitor, order-no. 5.4103.10.000. It supplies the necessary operation voltage for the electronics and the heating. Primary : 230V / 50Hz. Secondary : 24V AC / 25VA.

  • Page 18: Ec-Declaration Of Conformity

    11 EC-Declaration of Conformity Document-No.: 000902 Month: 07 Year: 19 A D O L F T H I E S G m b H & C o. K G Manufacturer: Hauptstr. 76 D-37083 Göttingen Tel.: (0551) 79001-0 Fax: (0551) 79001-65 email: Info@ThiesClima.com This declaration of conformity is issued under the sole responsibility of the manufacturer...
  • Page 19 © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021197/07/19 Tel. +49 551 79001-0 · Fax +49 551 79001-65 · info@thiesclima.com ·www.thiesclima.com Seite 19 von 20...
  • Page 20 Sprechen Sie mit uns über Ihre Systemanforderungen. Wir beraten Sie gern. ADOLF THIES GMBH & CO. KG Meteorologie und Umweltmesstechnik Hauptstraße 76 · 37083 Göttingen · Germany Tel. +49 551 79001-0 · Fax +49 551 79001-65 info@thiesclima.com www.thiesclima.com © Adolf Thies GmbH & Co. KG · Hauptstraße 76 · 37083 Göttingen · Germany 021197/07/19 Tel.
