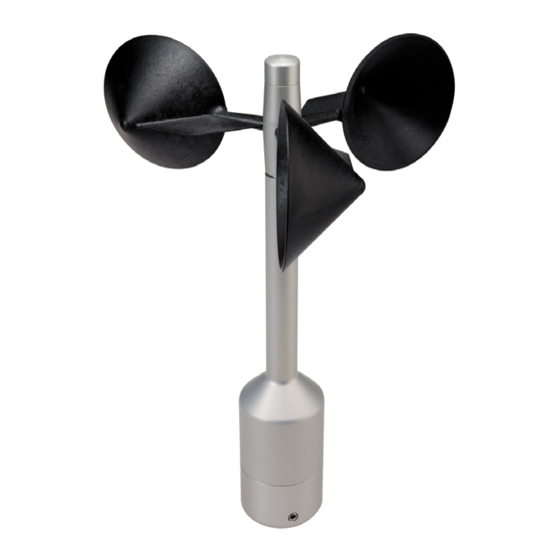

Wind Transmitter „First Class" Advanced
Classified according to IEC 61400-12-1 (2005-12)
ADOLF THIES GmbH & Co. KG
Hauptstraße 76
Box 3536 + 3541
Phone +49 551 79001-0
www.thiesclima.com
Instruction for Use
021519/01/09
4.3351.00.000
4.3351.10.000
37083 Göttingen Germany
37025 Göttingen
Fax +49 551 79001-65
info@thiesclima.com
Advertisement
Table of Contents
Related Manuals for Thies CLIMA 4.3351.00.000
Summary of Contents for Thies CLIMA 4.3351.00.000

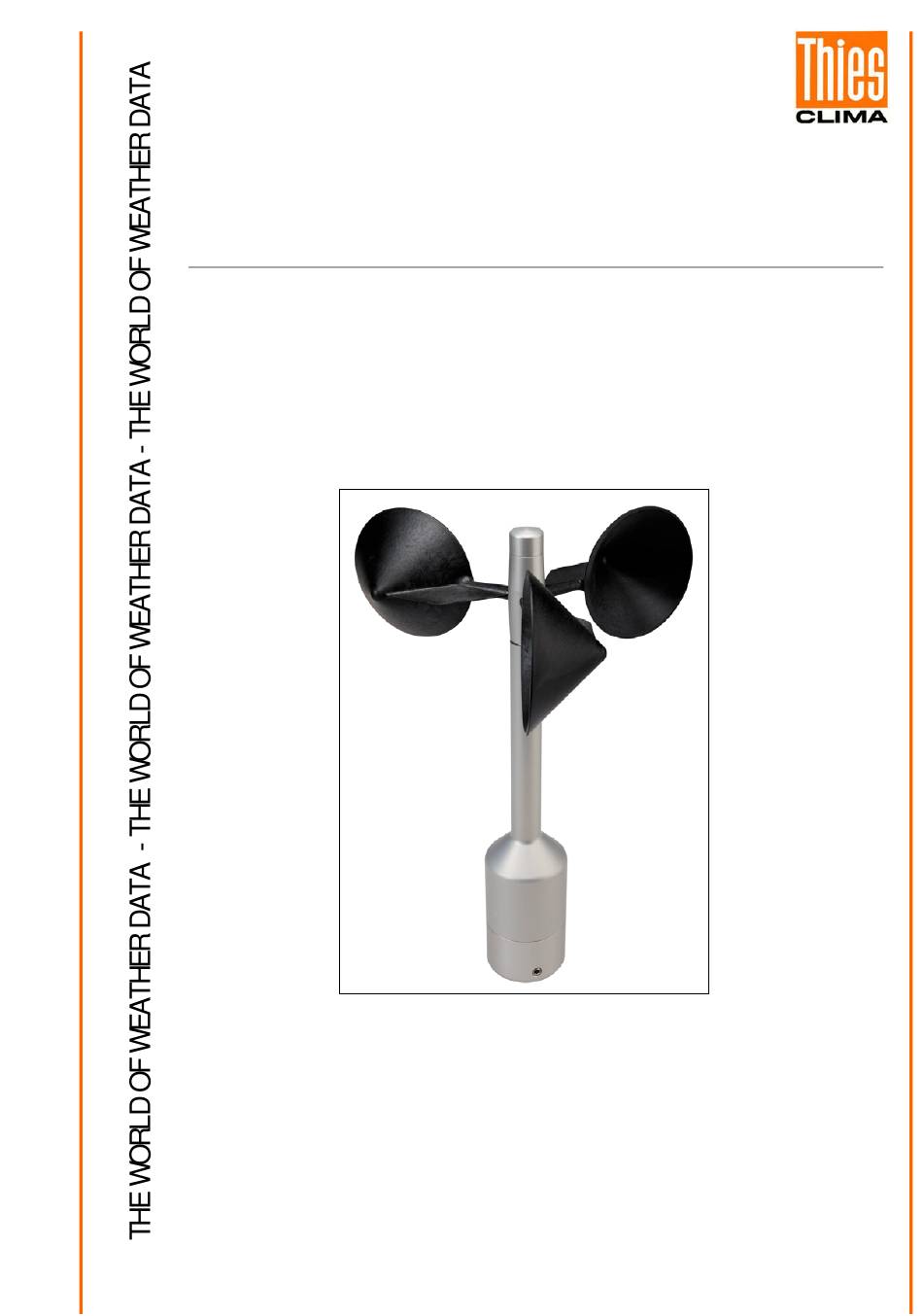

- Page 1 Instruction for Use 021519/01/09 Wind Transmitter „First Class“ Advanced Classified according to IEC 61400-12-1 (2005-12) 4.3351.00.000 4.3351.10.000 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com...
- Page 2 Safety Instructions • Before operating with or at the device/product, read through the operating instructions. This manual contains instructions which should be followed on mounting, start-up, and operation. A non-observance might cause: - failure of important functions - Endangering of persons by electrical or mechanic effect - Damages at objects •...
-
Page 3: Table Of Contents
Contents Models available ........................4 Application ..........................4 Construction and Mode of Operation ..................4 Recommendation Side Selection / Standard Installation ............5 Installation..........................5 Mechanical Mounting ......................6 Electrical Mounting ......................6 5.2.1 Cable ..........................6 5.2.1.1 Cable Recommendation..................6 5.2.2 Cable Shield ......................... -
Page 4: Models Available
1 Models available Output Order - No. Meas. range Supply Heating Frequency 4.3351.00.000 0.3...75 m/s 1082 Hz @ 50 m/s 3.3…48 V DC 24V AC/DC, 25 W 4.3351.10.000 0.3...75 m/s 1082 Hz @ 50 m/s 3.3…48 V DC w/o heating... -
Page 5: Recommendation Side Selection / Standard Installation
4 Recommendation Side Selection / Standard Installation In general, wind measuring instruments are supposed to record wind conditions over a large area. According to international regulations, the surface wind should be measured at a height of 10 m above even open terrain, in order to achieve comparable values. An open terrain is defined as ter- rain where the distance between the wind-measuring instrument and the next obstacle is at least ten times the height of this obstacle (acc. -
Page 6: Mechanical Mounting
5.1 Mechanical Mounting The wind transmitter must be mounted on an instrument carrier, which is suited for the measure- ment. For dimensions of wind direction transmitter please refer to chapter 8. Tools: Hexagon socket wrench SW3 (Allen key) Procedure: 1. Push cable/ plug connector of the wind transmitter through the borehole of the mast, tube, arm etc. -
Page 7: Connecting Recommendation For The Cable Shield
5.2.2.1 Connecting Recommendation for the Cable Shield Sensor Carrier Sensor Shielding / Ground Lightning Protection 1. Metallic measurement Apply the cable shield Mount metallic lightning Isolated mounting at mast, grounded the measuring mast between sensor and protection rod on the mast. (e.g. -
Page 8: Plug And Cable Mounting
5.2.3 Plug and Cable Mounting Coupling socket, Type: Binder, Serial 423, EMC with cable clamp Cable- pull- relief View X Cable connection: with cable shield 1. Stringing parts on cable acc. to plan given Cable mounting 1 above. View X 2. -
Page 9: Connecting Diagram
Connection diagram acc. to chapter 5.2.2.1 no.1, 3 and 4: Order – No. View on the sol- dered joint of the counter plug Heating 25 W 4.3351.00.000 4.3351.10.000* 8 pol. Binder Plug 1 3 2 4 5 6 7 Shield... -
Page 10: Maintenance
6 Maintenance If properly installed, the instrument requires no maintenance. Heavy pollution can lead to blockage of the slot between the rotating and the stable parts of the transmitter. Thus it is advisable to re- move the accumulated dirt from the instrument. Cleaning For the cleaning of the device should use a damp cloth without chemical cleaning agents are used. -
Page 11: Technical Data
7 Technical Data Characteristic Description Measuring range 0.3...75 m/s Accuracy 0.3...50 m/s 1% of meas. value or < 0.2 m/s Survival speed 80 m/s (min. 30 minutes) Permissible - 50...+ 80°C, all occurring situations of relative humidity Ambient conditions (incl. dew moistening) Output signal rectangle, edge steepness <... -
Page 12: Dimensional Drawing
Connection 8-pole plug-connection for shielded cable in the shaft (see connecting diagram) Mounting Mounting on mast R 1“, for ex. DIN 2441 1½ “ with separate adaptor (option) Dimensions See dimension diagram Weight approx. 0.5 kg Protection IP 55 (DIN 40050) Dimensional Drawing 12 - 16 021519/01/09... -
Page 13: Accessories (Optional)
Accessories (optional) Traverse 0.6 m 4.3174.00.000 Horizontal sensor distance: 0.6 m Vertical sensor distance: 0.2 m For mounting the wind speed Mast receptacle: 48 - 50 mm and wind direction transmitter Material: Aluminum, anodised jointly onto a mast. Dimensions: tube Ø 34x4mm, 668 mm long, 756 mm high Hanger 4.3184.01.000... -
Page 14: Ec-Declaration Of Conformity
Info@ThiesClima.com Description of Product: Windsensor FIRST CLASS Article No. 4.3350.00.000 4.3350.10.000 4.3350.00.140 4.3350.00.141 4.3350.00.161 4.3350.10.140 4.3350.10.141 4.3350.10.161 4.3351.00.000 4.3351.10.000 4.3351.00.140 4.3351.00.141 4.3351.00.161 4.3351.10.140 4.3351.10.141 4.3351.10.161 specified technical data in the document: 021518/01/09; 021548/01/09 021309/07/06; 021435/01/07; The indicated products correspond to the essential requirement of the following European Directives and Regulations:... - Page 15 15 - 16 021519/01/09...
- Page 16 ADOLF THIES GmbH & Co. KG Hauptstraße 76 37083 Göttingen Germany P.O. Box 3536 + 3541 37025 Göttingen Phone +49 551 79001-0 Fax +49 551 79001-65 www.thiesclima.com info@thiesclima.com - Alterations reserved- 16 - 16 021519/01/09...
