efacec NORMAFIX Instructions Manual page 9

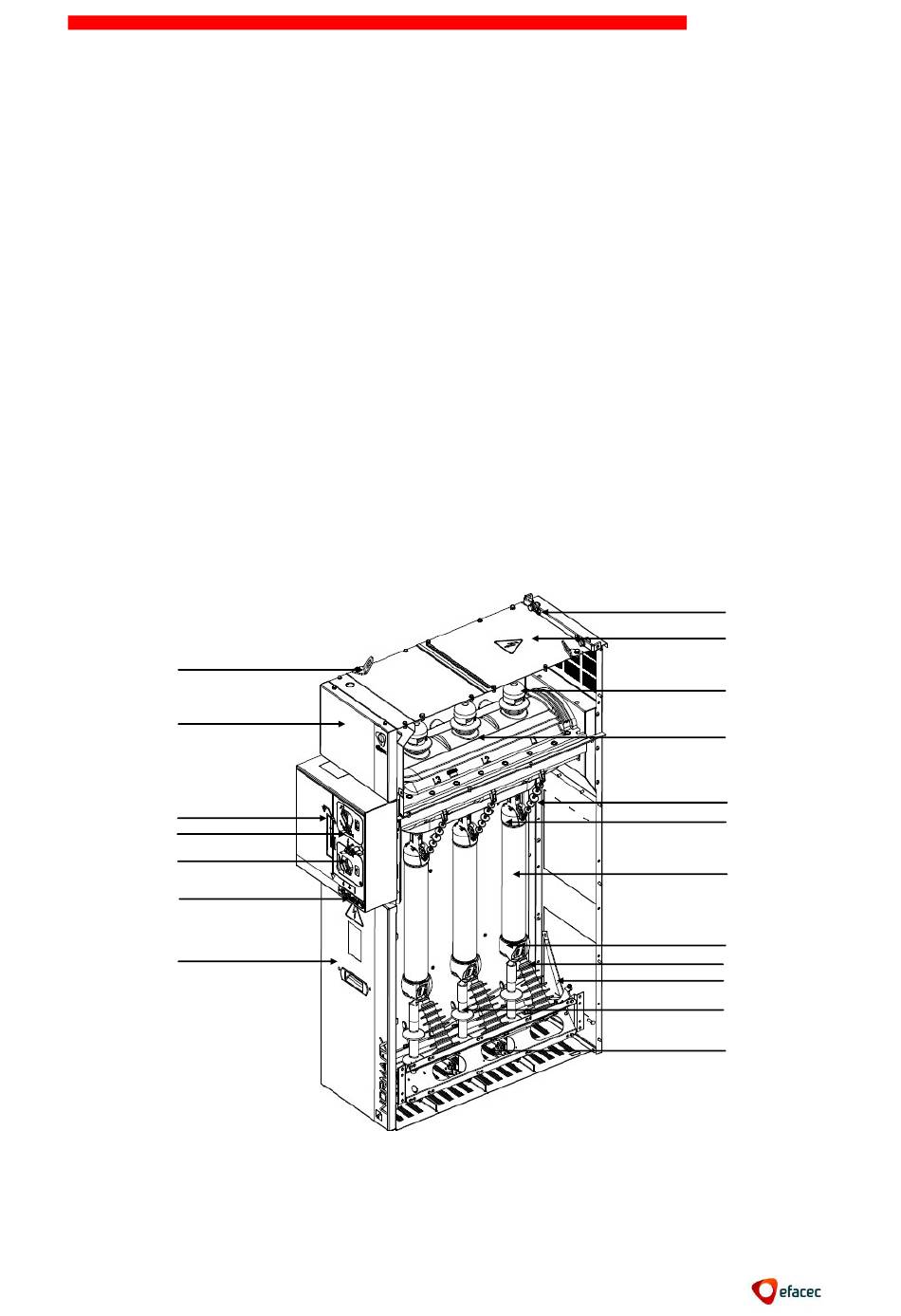

Cubicle CIS
1- Accessories for lifting the cubicle
2- Low voltage compartment
3- Mechanical synoptic state of the switch disconnector
4- Earth switch operating mechanism
5- Switch disconnector operating mechanism
6- Live cables signalling neon lamps
7- MV Cables acess painel
8- Earth circuit
9- Busbar access panel
10-Busbar deflector
11- ISF Switch Disconnector
12- Fire system protection fuse
13- Upper fuse support
14- MV Fuses
15- Bottom fuse support
16- Capacitive insulator of support
17- Additional Earth switch
18- MV Cables
19- Tightening of cables
1
2
3
4
5
6
7
8
NORMAFIX
8
9
10
11
12
13
14
15
16
17
18
19
