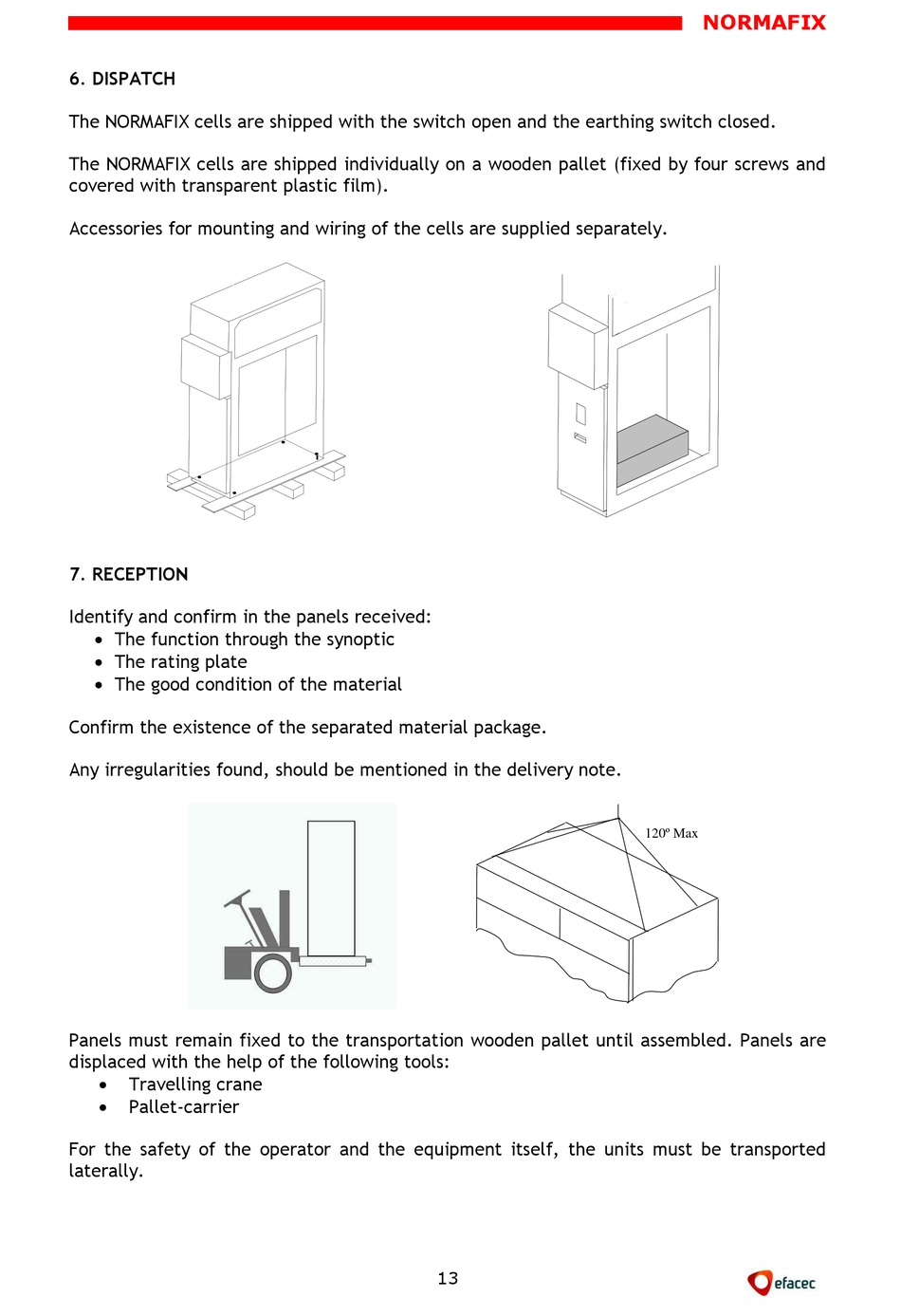

6. DISPATCH

The NORMAFIX cells are shipped with the switch open and the earthing switch closed.
The NORMAFIX cells are shipped individually on a wooden pallet (fixed by four screws and
covered with transparent plastic film).
Accessories for mounting and wiring of the cells are supplied separately.

7. RECEPTION

Identify and confirm in the panels received:
 The function through the synoptic
 The rating plate
 The good condition of the material
Confirm the existence of the separated material package.
Any irregularities found, should be mentioned in the delivery note.
Panels must remain fixed to the transportation wooden pallet until assembled. Panels are
displaced with the help of the following tools:

Travelling crane

Pallet-carrier
For the safety of the operator and the equipment itself, the units must be transported
laterally.
13
NORMAFIX
120º Max
