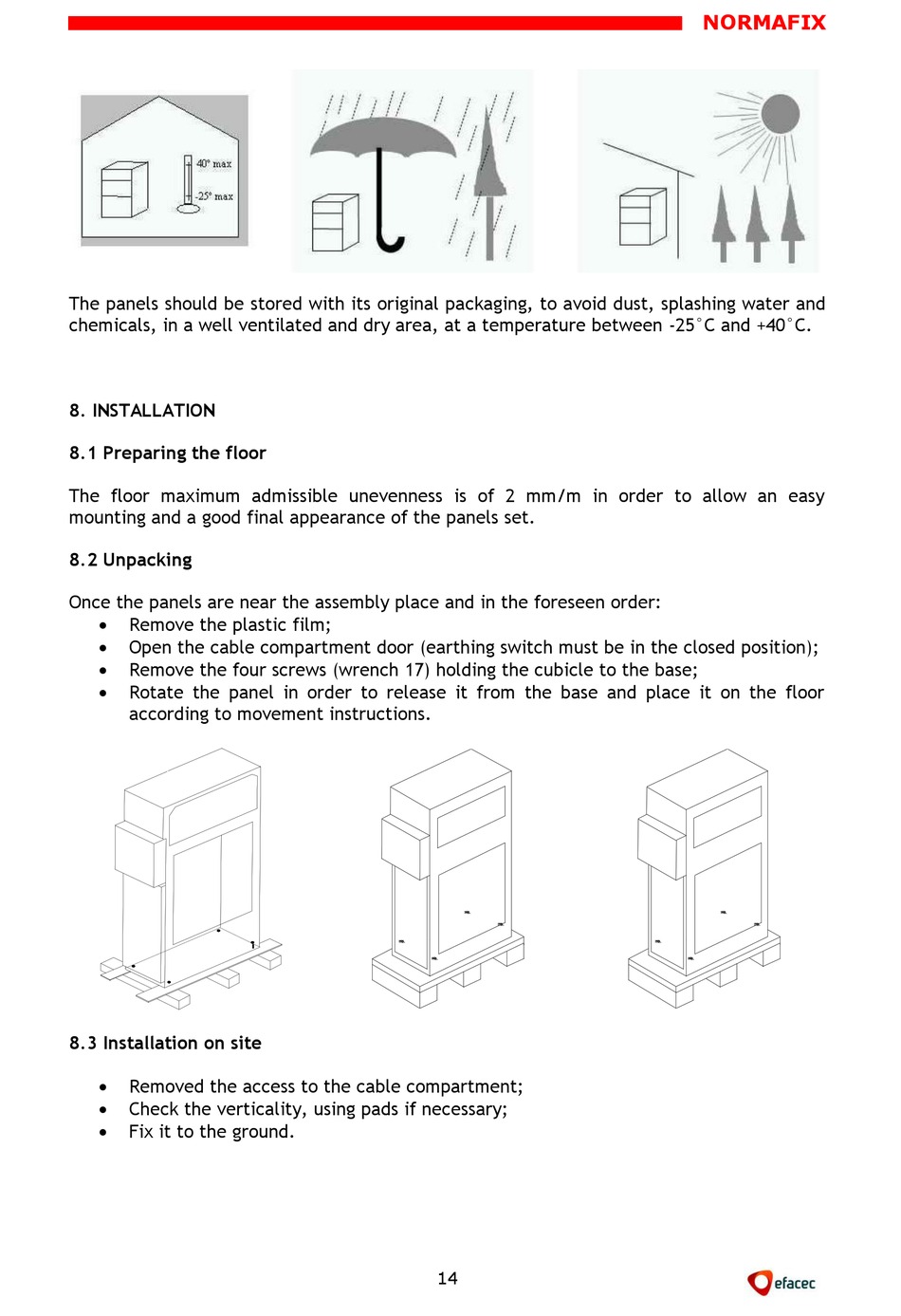

The panels should be stored with its original packaging, to avoid dust, splashing water and
chemicals, in a well ventilated and dry area, at a temperature between -25°C and +40°C.

8. INSTALLATION

8.1 Preparing the floor

The floor maximum admissible unevenness is of 2 mm/m in order to allow an easy
mounting and a good final appearance of the panels set.

8.2 Unpacking

Once the panels are near the assembly place and in the foreseen order:

Remove the plastic film;

Open the cable compartment door (earthing switch must be in the closed position);

Remove the four screws (wrench 17) holding the cubicle to the base;

Rotate the panel in order to release it from the base and place it on the floor
according to movement instructions.

8.3 Installation on site


Removed the access to the cable compartment;

Check the verticality, using pads if necessary;

Fix it to the ground.
