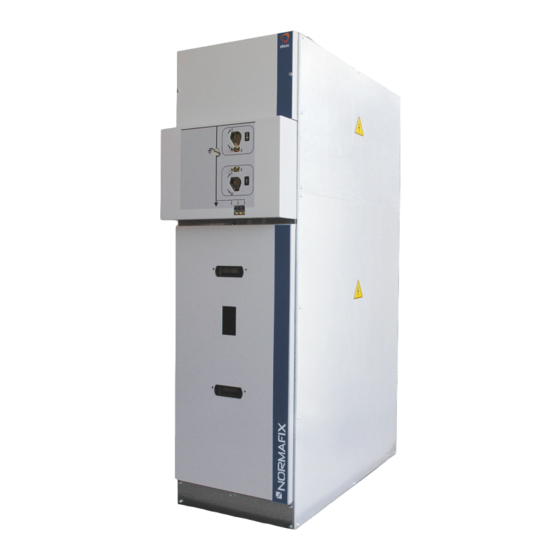

efacec NORMAFIX Instructions Manual

Modular distribution switchgear
Hide thumbs
Table of Contents

Advertisement

Quick Links

NORMAFIX
NORMAFIX
Modular Distribution Switchgear
INSTRUCTIONS
Nº453030007
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NORMAFIX and is the answer not in the manual?

Questions and answers

Summary of Contents for efacec NORMAFIX

  • Page 1 NORMAFIX NORMAFIX Modular Distribution Switchgear INSTRUCTIONS Nº453030007...
  • Page 2 NORMAFIX SECURITY INSTRUCTIONS Read this manual carefully before proceeding with any handling, operation and maintenance action. Failure to follow safety recommendations, could lead to serious physical and material injury. This manual should be accessible to all people involved in the installation, operation and maintenance of the equipment.

  • Page 3: Table Of Contents

    NORMAFIX TABLE OF CONTENTS 1. GENERAL TECHNICAL CHARACTERISTICS ...................... 3 2. MODULAR UNITS ............................... 4 2.1 IS Cubicle ..............................4 2.2 CIS Cubicle ..............................4 2.3 DC Cubicle ..............................5 2.4 M Cubicle ..............................5 2.5 SBM Cubicle ............................... 5 2.6 CD Cubicle ..............................

  • Page 4: General Technical Characteristics

    NORMAFIX 1. GENERAL TECHNICAL CHARACTERISTICS Rated voltage 12 kV 17,5 kV 24 kV 36 kV Insulation level - Power frequency (Hz - 1min) 28 kV 38 kV 50 kV 70 kV 75 kV 95 kV 125 kV 170 kV -Lightning impulse (1,2 / 50s)

  • Page 5: Modular Units

    NORMAFIX Panels dimensions of 36 kV Width (mm) Weight (kg) Panel type Height (mm) Depth (mm) 2010 (+400) 1155 (+110) 2010 (+400) 1155 (+110) 2010 (+400) 1200 1155 (+110) 2010 (+400) 1155 (+110) 2010 (+400) 1200 1155 (+30) 2010 (+400)

  • Page 6: Dc Cubicle

    NORMAFIX 2.3 DC Cubicle Cables Protection Cubicle (DC) with circuit breaker. circuit breaker interrupting technology can be vacuum (DIVAC type) or SF6 (DIFLU type). 2.4 M Cubicle Measure Cubicle (M) Cubicle for measuring current and/or voltage. Different versions available: Lateral incoming outgoing;...

  • Page 7: Cd Cubicle

    NORMAFIX 2.6 CD Cubicle Direct Incoming Cubicle (CD) Cubicle incoming or outgoing cables direct. 2.7 TT Cubicle Voltage Transformer Cubicle (TT) Cubicle for measure voltage with protection of VT’s by fuses. 2.8 DB Cubicle Bars Protection Cubicle (DB) Cubicle for protection bars and measuring the current and/or voltage.

  • Page 8: Overview Of Modular Units

    NORMAFIX 3. OVERVIEW OF MODULAR UNITS Cubicle IS 1- Accessories for lifting the cubicle 2- Low voltage compartment 3- Earth switch operating mechanism 4- Mechanical synoptic state of the switch disconnector 5- Switch disconnector operating mechanism 6- Live cables signalling neon lamps...
  • Page 9 NORMAFIX Cubicle CIS 1- Accessories for lifting the cubicle 2- Low voltage compartment 3- Mechanical synoptic state of the switch disconnector 4- Earth switch operating mechanism 5- Switch disconnector operating mechanism 6- Live cables signalling neon lamps 7- MV Cables acess painel...
  • Page 10 NORMAFIX Cubicle DC 1- Accessories for lifting the cubicle 2- Low voltage compartment 3- Mechanical synoptic state of switch disconnector 4- Self-powered protection relay 5- Hole insert lever (charging the springs of circuit breaker) 6- Button to open and close the circuit breaker...

  • Page 11: Operating Mechanisms

    NORMAFIX 4. OPERATING MECHANISMS Operating Mechanism CI1, CS1 e CST (Switch Disconnector and Earth Switch) 1 – Lever for the manual operation of the switch or the earthing switch 2 – Switch Disconnector status indicator Operating mechanism Earth switch: 3 – Hole to insert Earth Switch interlocking pin 4 –...
  • Page 12 NORMAFIX FUNCTIONAL PRINCIPLE APPLICATION EXAMPLES Feeder function equipment (set a net to “Tumbler” type operating mechanism. service or remove it from service) and Opening and closing operations are manually transformer fuse protection (load or electrically performed with a speed CI1(M) protection through ISF fuses without independent from the operator's action.

  • Page 13: Sf6 System

    3 – Mechanical synoptic state of circuit breaker 5. SF6 SYSTEM The ISF switches and SF isolators, of insulation in SF6, used in the NORMAFIX cells are devices that are watertight and sealed for life (according to IEC 62271). The tightness of this equipment is guaranteed by routine tests performed. The expected life of this equipment is 30 years.

  • Page 14: Dispatch

    6. DISPATCH The NORMAFIX cells are shipped with the switch open and the earthing switch closed. The NORMAFIX cells are shipped individually on a wooden pallet (fixed by four screws and covered with transparent plastic film). Accessories for mounting and wiring of the cells are supplied separately.

  • Page 15: Installation

    NORMAFIX The panels should be stored with its original packaging, to avoid dust, splashing water and chemicals, in a well ventilated and dry area, at a temperature between -25°C and +40°C. 8. INSTALLATION 8.1 Preparing the floor The floor maximum admissible unevenness is of 2 mm/m in order to allow an easy mounting and a good final appearance of the panels set.

  • Page 16: Panels Assembly

    NORMAFIX 8.4 Panels assembly Position the first panel and fix it to the floor. Then, position the second panel and connect it to the first by using M8x16H screws, M8 washers and M8H nuts and fix it to the floor. Do the same for the remaining cubicles.

  • Page 17: Connection Of The Earthing Circuit

    NORMAFIX 8.6 Connection of the earthing circuit All NORMAFIX components (bars, cables connections, fuses, etc.) are interconnected and connected to the earth by the same copper circuit. (*) – Points of connection of the busbar circuit common ground Tighten the copper bars of the circuit ground to ensure continuity.

  • Page 18: Cables Connection

    Immobilize the fixing screws with a fastening binary of 2,4 daNm, wrench 17. 8.8 Cables connection NORMAFIX was designed for use with cable, shrink or silicon terminals. The selection of the cables and cable terminals are the responsibility of the customer. The materials should be compatible with the NORMAFIX equipment.
  • Page 19 NORMAFIX  Access the current switch screw where the terminal is fixed to the cable (on the panels IS and CD it is necessary to remove the deflector);  Place the cables at terminal height, starting by the furthest phase;...

  • Page 20: Toroidal Transformers Cable Connections

    NORMAFIX Connect the three cable earth plaits to the earth main bar with M8x30H screws and immobilize the nut with a wrench 13, tightening torque 0,9 daNm. 8.9 Toroidal transformers Cable Connections It is possible to install toroidal current sensors in fault detector’s cables.

  • Page 21: Definition Of Fuses

    NORMAFIX In the case of fuses with striker:  Remove the label of protection of the striker, when installing the fuse for the first time;  Make sure the striker is positioned correctly (upwards). 8.11 Definition of fuses Power of...

  • Page 22: Live Cables Control

    NORMAFIX 9.4 Live cables control  After having fed the cubicle "A" cables, check whether the L1, L2, L3 live cables indicating lamps, mounted in the operation panel, are lit;  Feed cubicle "B" cables and check the lighting of the live cables indicating lamps.

  • Page 23: Exploitation

    NORMAFIX 10. EXPLOITATION 10.1. Operating mechanism operation The cubicles are shipped with switch disconnector in the open position and earth switch in closed position. All maneuvers are made without great efforts. The motorization is not operational if the maneuver lever is placed.

  • Page 24: Earth Switch Closing Operation (Ci1 And Ci2)

    NORMAFIX 10.3. Earth Switch closing operation (CI1 and CI2)  This maneuver is only possible if the switch is in open position  Insert the lever into the slot of the earthing switch maneuver.  Check that the cables do not have voltage (indicator of the presence of voltage) ...

  • Page 25: Switch Opening Operation (Ci1 Or Cs1)

    NORMAFIX 10.5. Switch opening operation (CI1 or CS1)  This maneuver is only possible if the switch is in the closed position;  Insert the lever into the slot of the Switch maneuver;  Operate the lever counter clockwise to the “open” position – the switch opens up shaply;...

  • Page 26: Switch Opening Operation (Ci2 - Transformer Protection Function)

    NORMAFIX 10.7. Switch opening operation (CI2 - transformer protection function) The opening operation can be made:  Manually (shutter release button in the mechanism)  By a coil opening (optional)  By fuses (fuses mechanical action) 10.8. Closing and opening operations (Vacuum Circuit Breaker, CDV mechanism) ...

  • Page 27: Closing And Opening Operations (Sf6 Circuit Breaker, Clr Mechanism)

    11. MAINTENANCE NORMAFIX is a maintenance-free product. However, when the switchgear is inoperative for a long time or if it is under severe environmental conditions (dust, humidity, salty etc), it is advisable to perform the following operations whenever there is a duty break: ...

  • Page 28: Replacement

    NORMAFIX 12. REPLACEMENT 12.1 Replacing the Voltage Signalization lamps To replace the voltage signalization lamps, proceed as presented in the following pictures. No tools are required. After removing the voltage signalization, disconnect the connection. Connect the voltage signalization again and put it back in its place.

  • Page 29: Removing The Automatic Switch Disconnector Of The Cubicle

    NORMAFIX 12.3 Removing the automatic switch disconnector of the cubicle To access the cable compartment it is necessary: to open the breaker, then open the isolator, and finally close the earthing switch.  Open the cable compartment access panel ...

  • Page 30: Removing Cover Mechanism

    NORMAFIX 12.4 Removing cover mechanism All the mechanisms replacement operations should be carried out by the EFACEC´s After Sales Support Team. To access the operating switch disconnector or earth switch it is necessary to remove its cover.  Remove the Low Voltage compartment panel (to have access to the screws and the cover) ...
  • Page 31 AFTER SALES SERVICE Porto   Arroteia Leça do Bailio Apartado 1018  4466-952 S.Mamede de Infesta Portugal Tel.: (+351) 22 9562850/2615 Mobile: 96 83 29 61 Fax: (+351) 22 956 28 89 Porto Exportation Lisboa     ...
